4 X 3 Chassis Trailer
Complete Rolling Chassis Kit.
Ideal for your next Small Trailer Project.
Small and Lightweight Multi Trailer.
Suits Small Cars and even Motorbikes.
Trailer Chassis — 1220mm x 1016mm Capacity 505kg ATM, 400+kg Payload (1500 lbs Frame Rating)
Bed Size 1220mm x 1020mm
Overall Size 1920mm x 1360mm
Tare Weight 65kg
Compliance ADR / ECE
Finish High Gloss Powder Coat Black
Springs HT Slipper Leaf (660kg)
Wheels 12” White Spoke Steel (5mm)
Tyres 20” 60PSI,
4PLY High Speed (711kg)
Hubs/Axle 4 Stud,
Easy Lube Cast Iron (990kg)
Bearings 2” Fully Tapered (1600kg)
Bed Height 475mm
Coupler 50mm (750kg)
Coupler Height 410mm
Frame “C” Section 1.5”x2” (2.5mm)
Drawbar 700mm — 2.5”x2.5” (2.5mm)
Towball Weight 10% of GTM
Fender Height 70mm
Lights ADR Combination Type
Wiring 7-Pin Flat Loom
Complete Rolling Chassis Kit.
Ideal for your next Small Trailer Project.

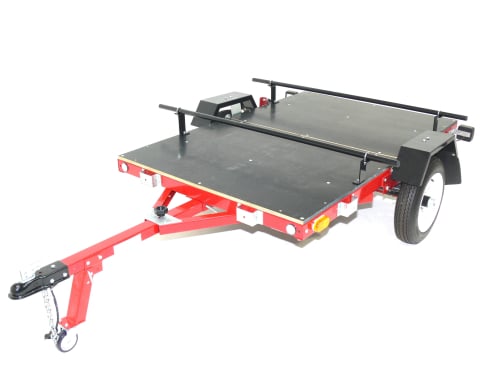

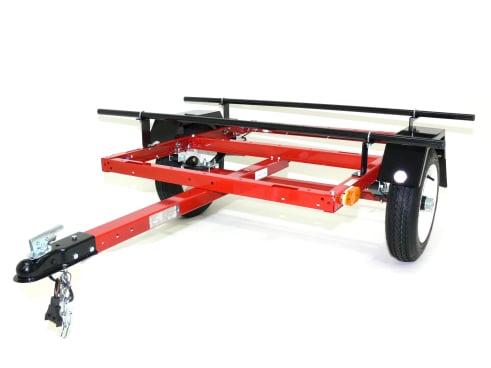

HD Sports Rack Trailer.
