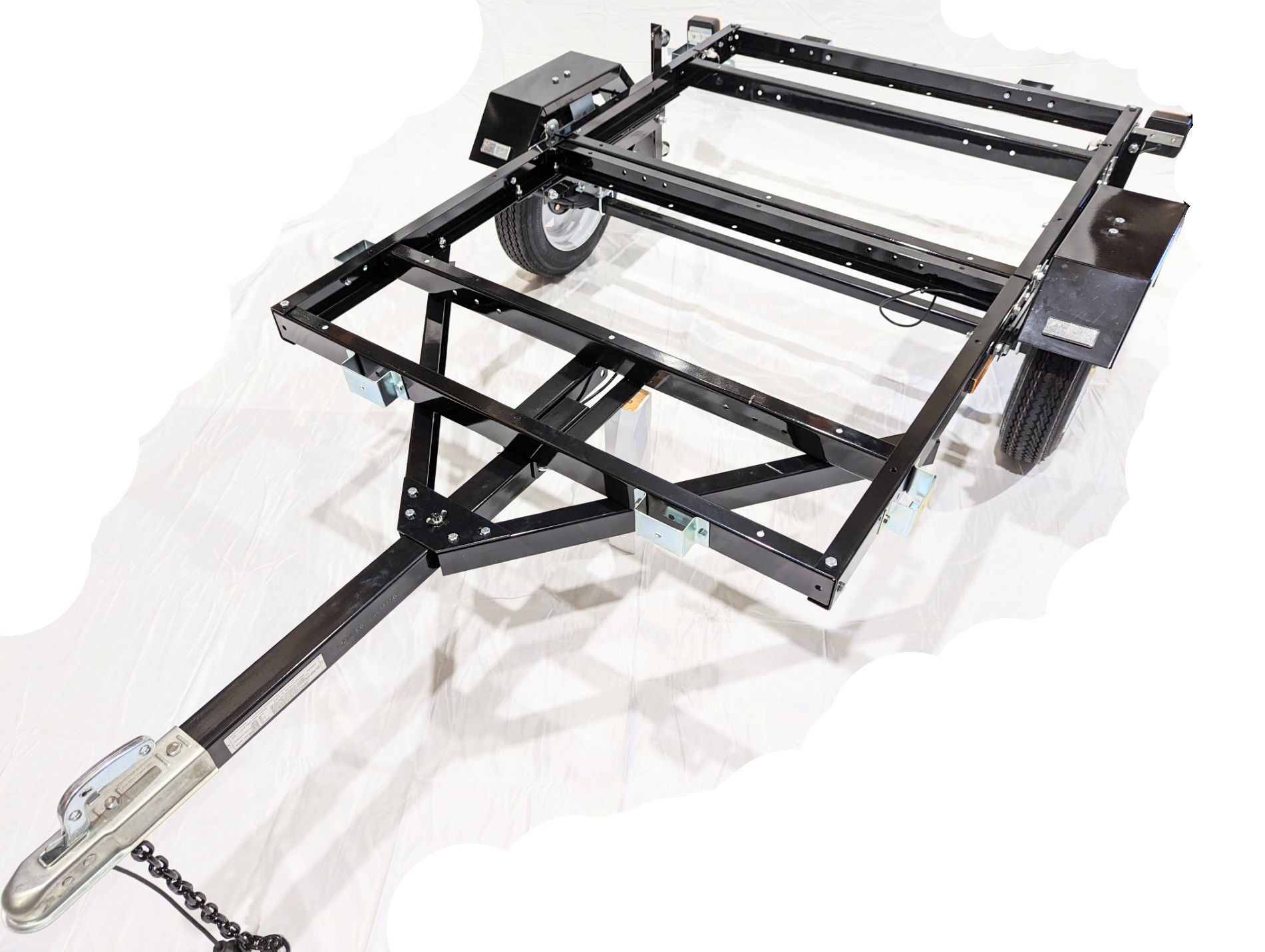

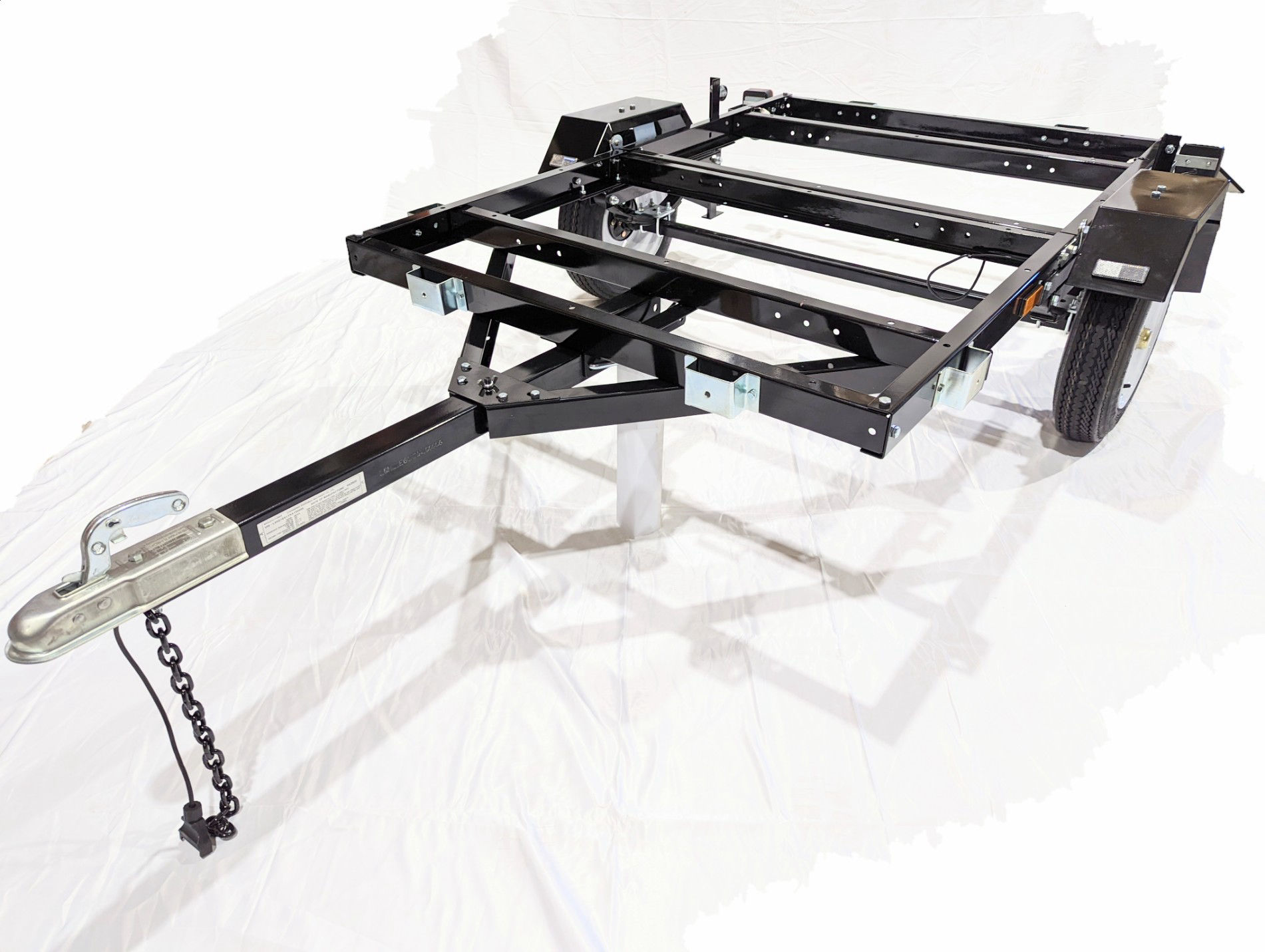

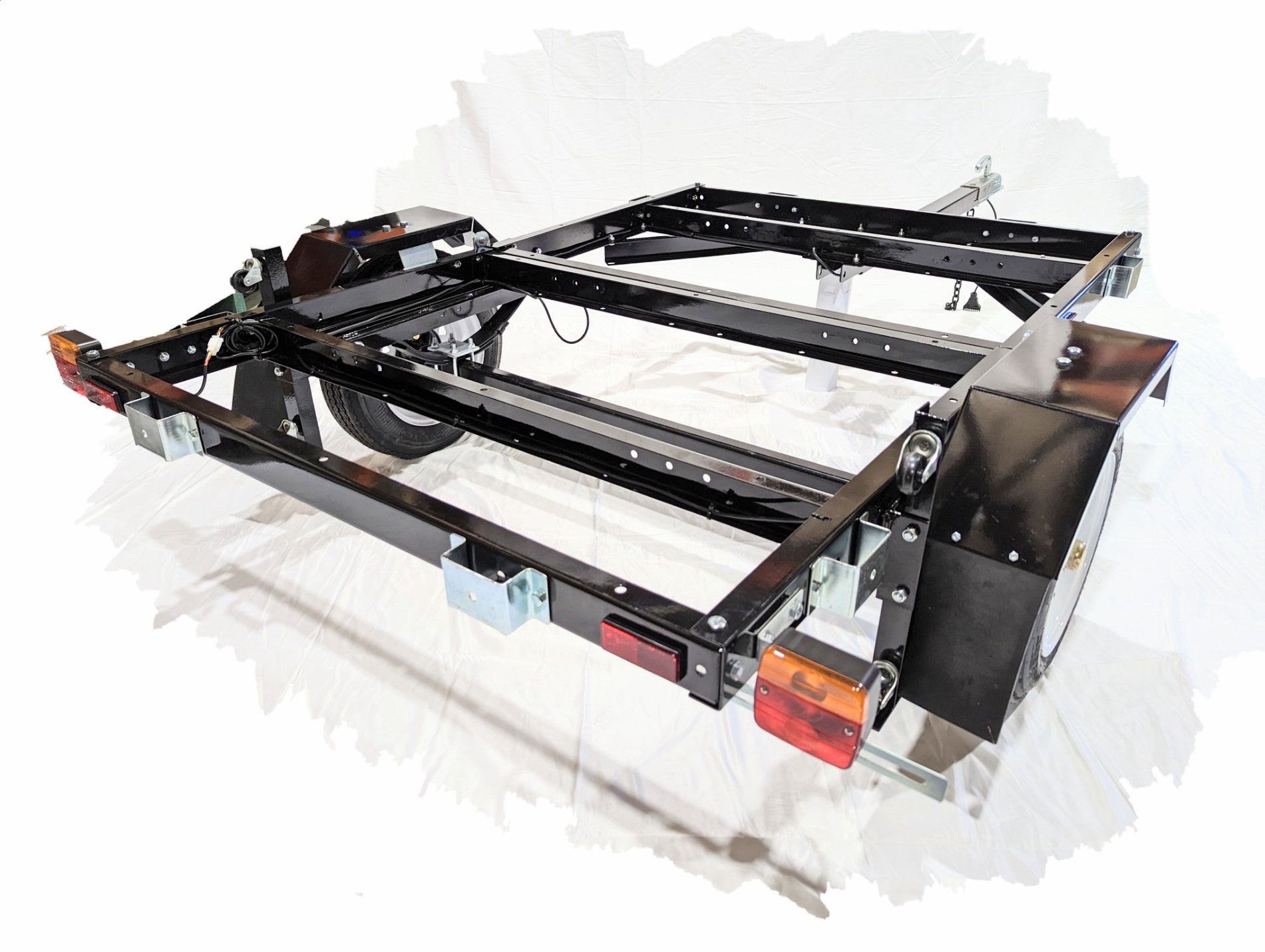

Capacity 707kg ATM,
500+kg Payload
Bed Size 1830mm x 1220mm
(2000 lbs Frame Rating)
Overall Size 2845mm x 1600mm
Tare Weight 105kg
Compliance ADR / ECE
Finish High Gloss Powder Coat Black
Springs HT Slipper Leaf (990kg)
Wheels 12” White Spoke (5mm)
Tyres 20” 60PSI,
4PLY High Speed (711kg)
Hubs/Axle 4 Stud, Cast Iron,
Easy Lube (990kg)
Bearings 2” Fully Tapered (1600kg)
Bed Height 500mm
Coupler 50mm (750kg)
Coupler Height 420mm

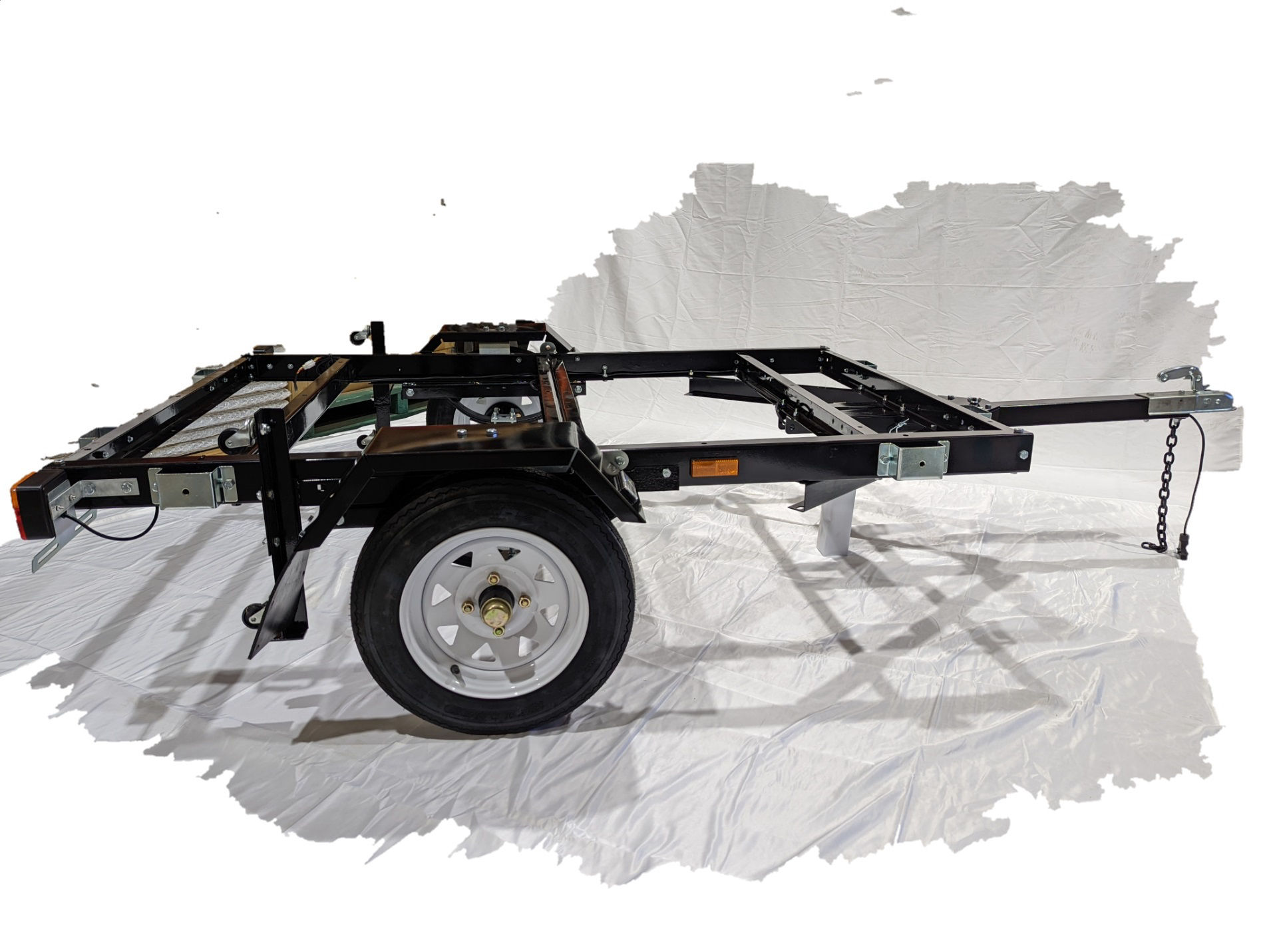

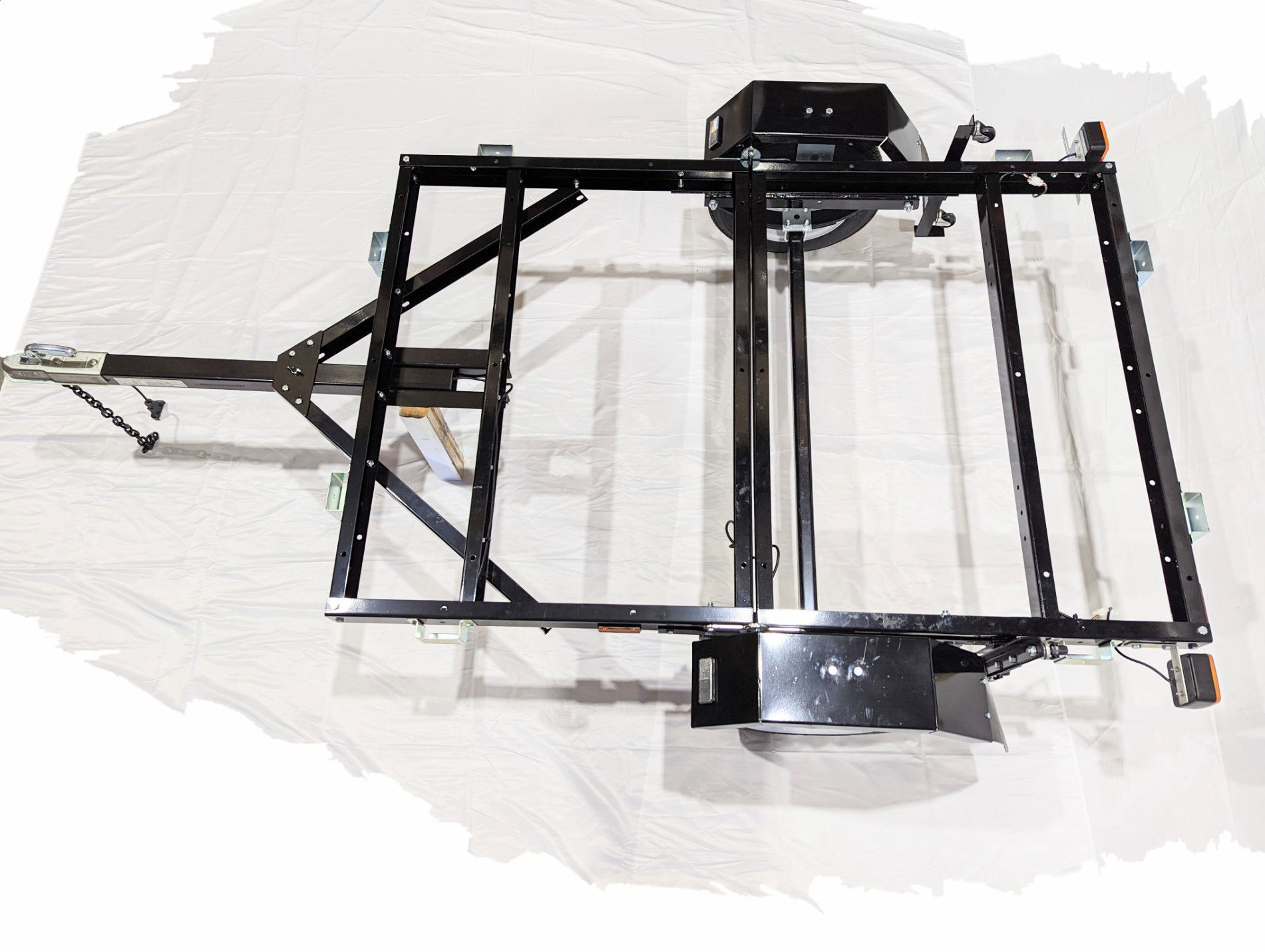

Frame “C” Section 3”x2” (2.5mm+)
Drawbar 1015mm 2.5”x2.5” (2.5mm+)
Towball Weight 10% of GTM
Fender Height 100mm
Lights ADR Standard Combination Type Wiring 7-Pin Flat

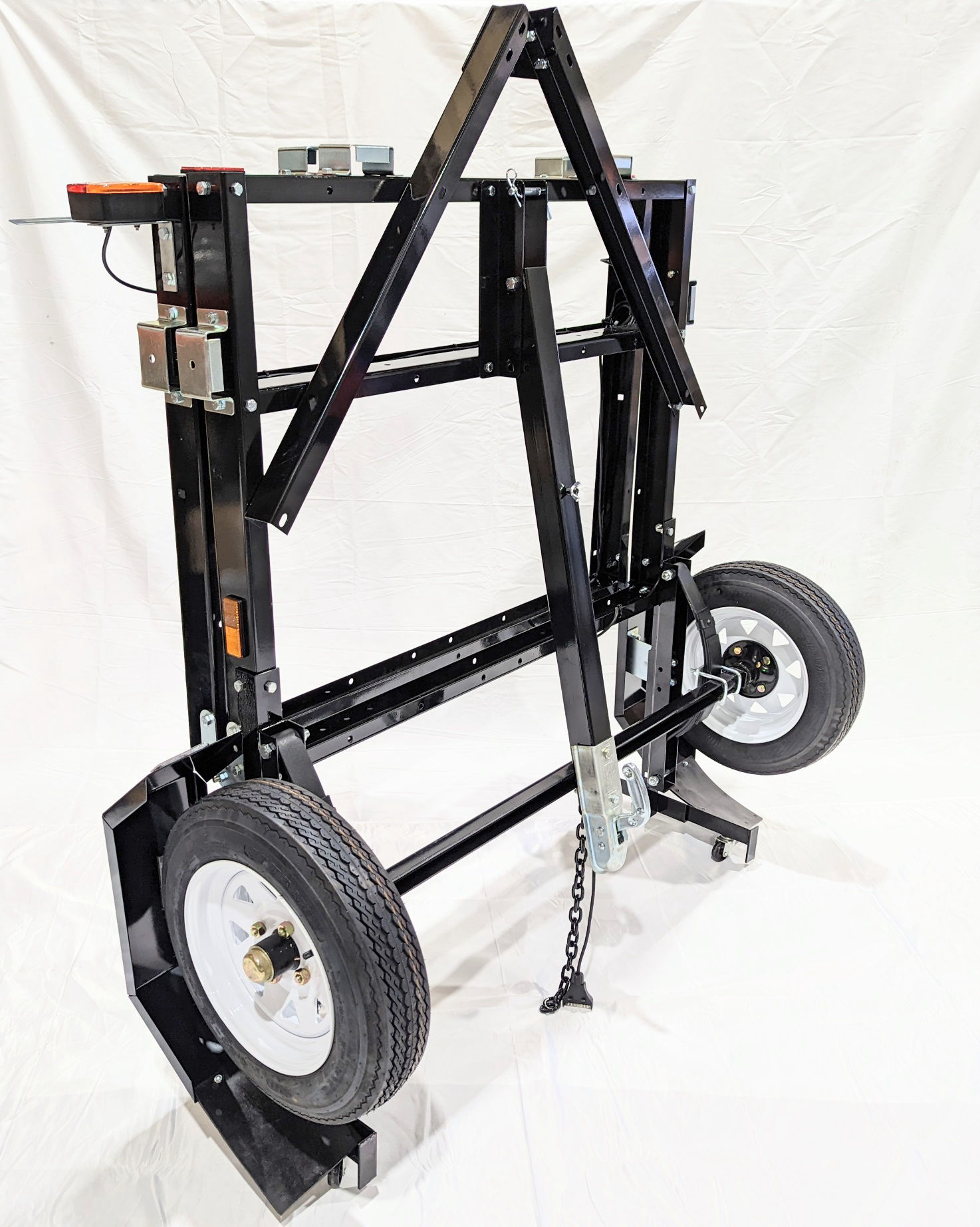

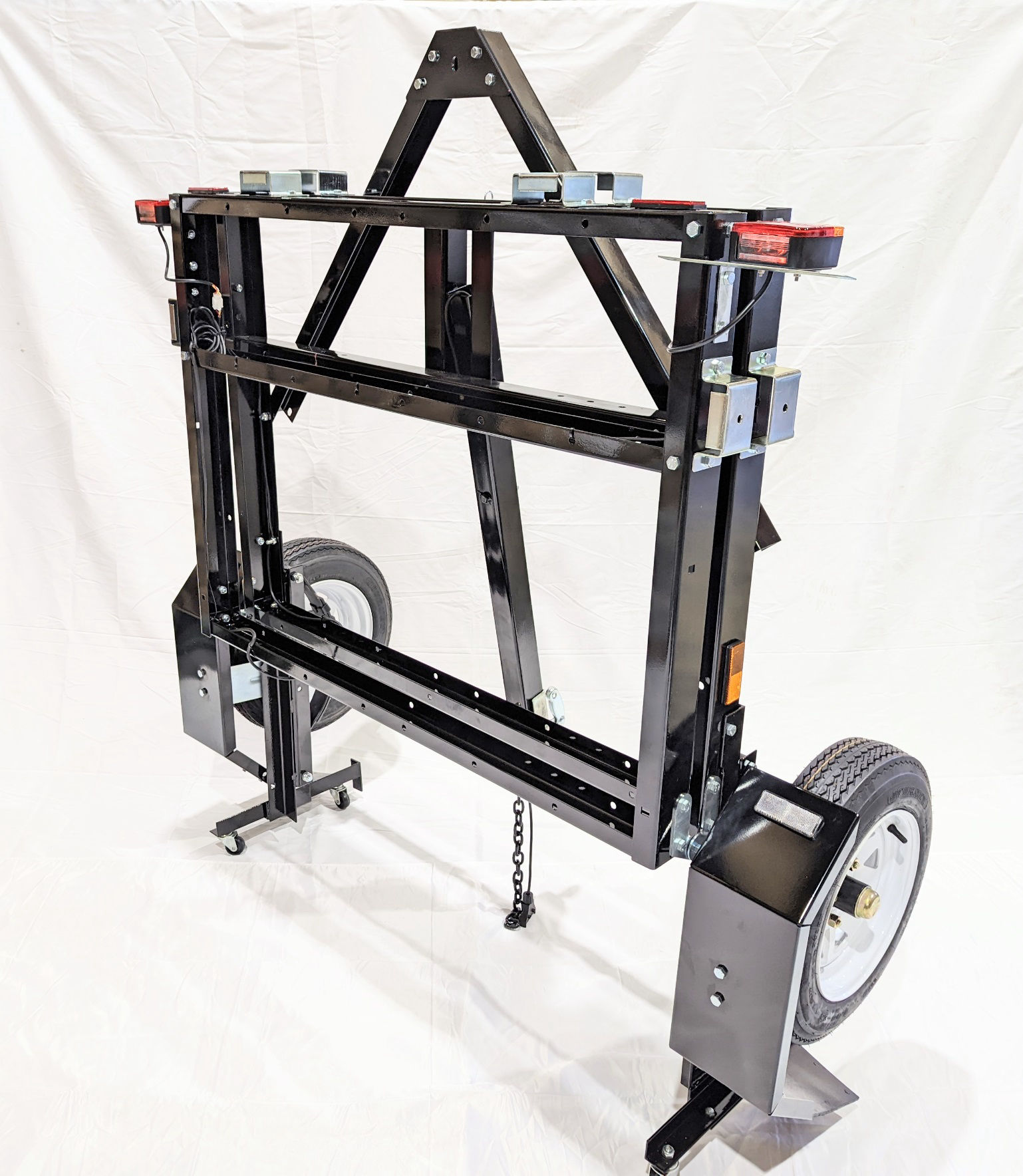

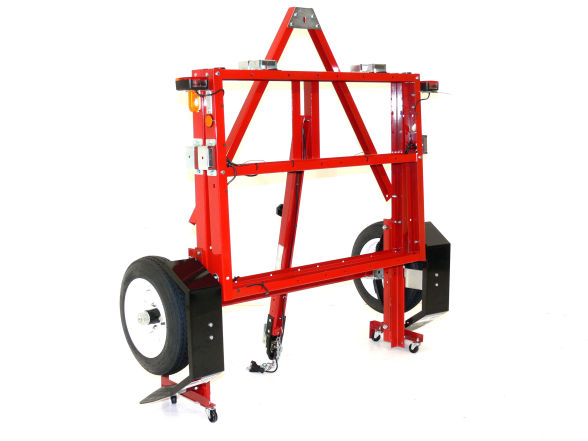

Trailer can be Set as a Folding
or Rigid Trailer Modes.
Move in any Direction with Little Effort.

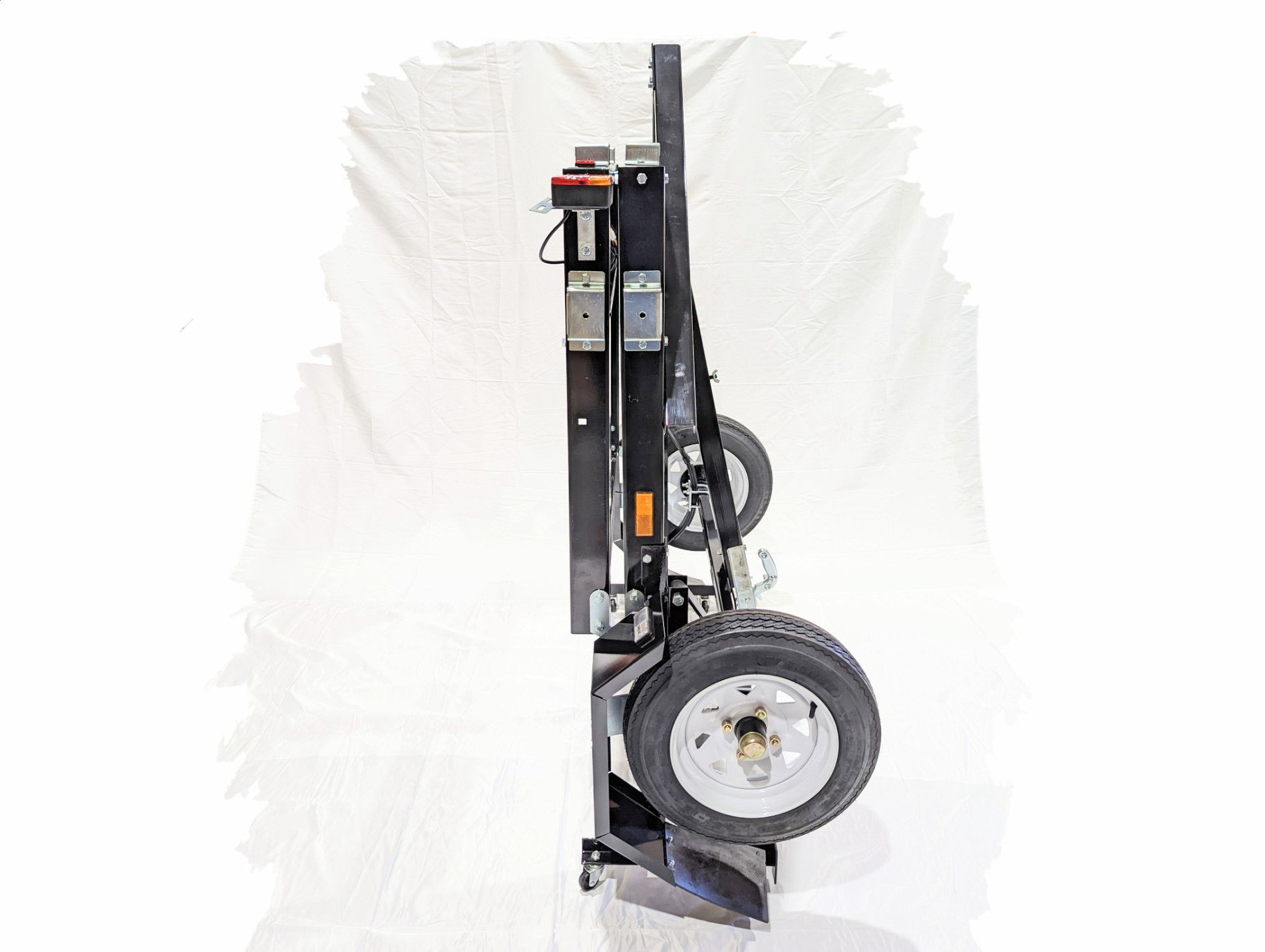

Wheels Through a Doorway
172cm Tall
160cm Wide
62cm Deep
Simple Tilting Feature.
Great for 3 & 4 Wheelers.
2 Stake Clamps Per Side
90mm x 40mm Timber Pocket
Make your Own Sides
50mm Towball ADR/ECE
Qick Release Coupler.
Easy To Use & Hold Trailer.
3 Leaf Slipper Springs.
Simple, Reliable,
Long Lasting.
Grease your Hubs easily via the Grease Fitting. Greases the Core of the Hub, Both Bearings Greased Quickly.
Light Truck Trailer Tyres.
Highway Rated.
Low Drag, Fuel Efficent, and
Long Lasting.

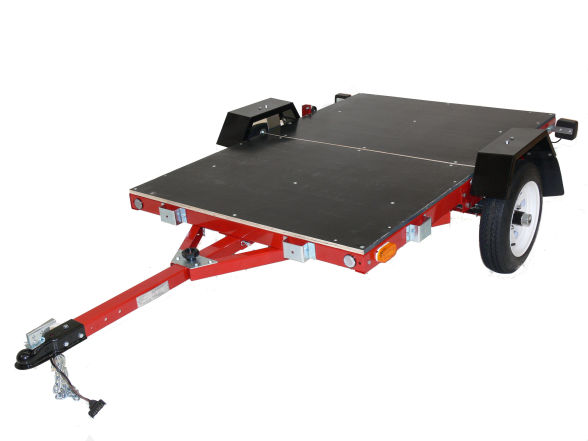

17mm HD Formply Floor
2 Piece Design
Lightweight & Strong

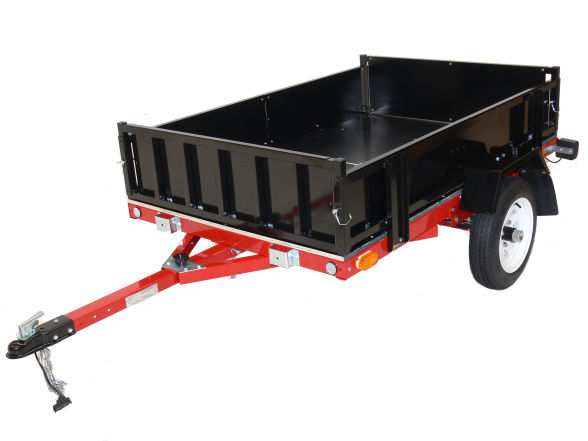

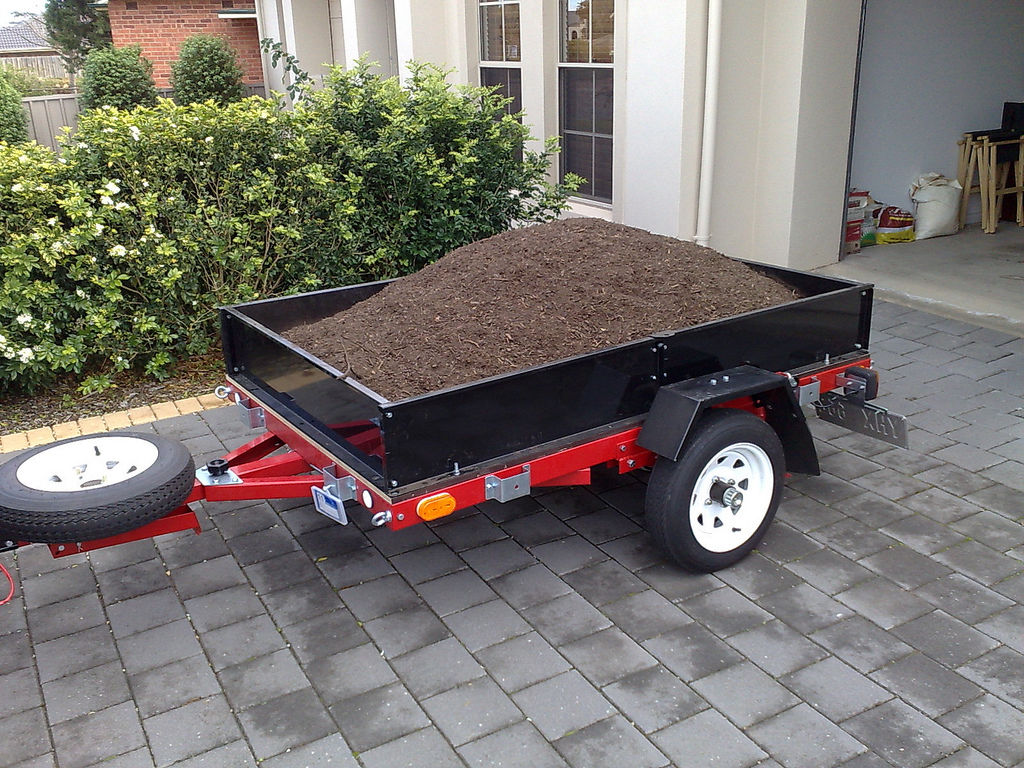

Make it a Box Trailer
with Bolt On Sides
3 Types to Choose From

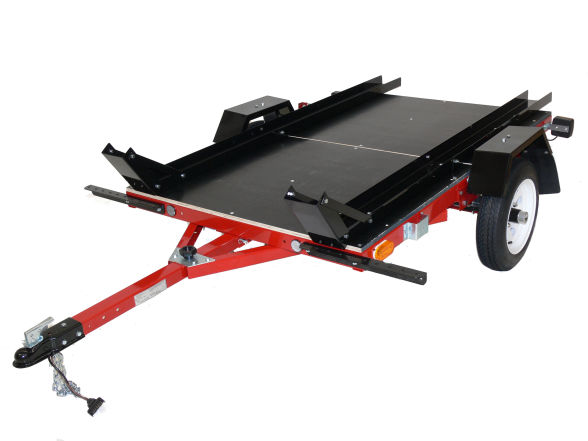

Front Chocks, Transport Stands, Channels, Tie Rings, Ramps and More...

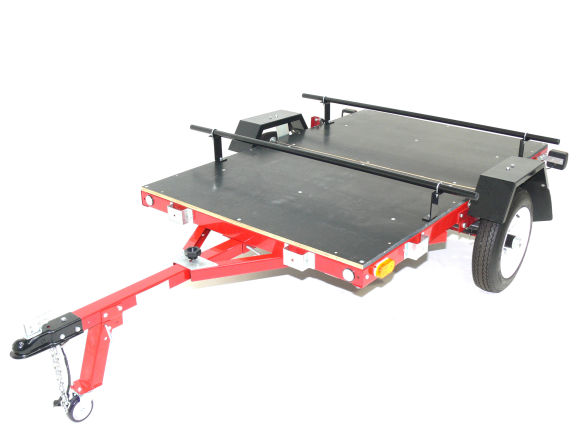

Yakima and Thule Compatible Sports Rack System.
Add Bike & Kayak Holders, Pods and More...
Highspeed R12 Wheel.
OPTIONAL: Holding U Bolt
Mount Below or Above Drawbar
Multifit Folding Levelling Leg.
Folds Up & Locks into Place
Quick Height Adjustment
Fit to Drawbar / Rear of Trailer
500kg Rated Traingle D Rings.
50mm Triangle, Inc Bolts.
Available in 10 or 4 Packs
The Ultimate Motorcycle Transport Stand. 750kg Rated.
Holds Front Wheel & Stand Your Bike Upright.
130mm Wide x 950mm Long
50mm Tall Sides
Suits all Motorcycles up to 120mm Wide Tyres.
Dual Wheel, 6" Castors.
Folding Design.
Note:
ADDs 8kg to Drawbar Weight
500mm Long Frame Extension
Bars to Extend Tie Straps Outside the Frame
300kg Rated, 1600mm Wide
30mm Square HD Pipe.
ADD Thule & Yakima Sports Accessories to Carry Bikes, Kayaks and More
Locks the Operation of the Coupler Handle Completely.
Unique Internal Key Lock.
Cannot Remove wihout KEY.
Off Car Trailer Parking Lock.
Integral Tow Ball Locking System when Trailer is Parked.
HD Wheel Clamp Suits from R12 Up. Key Locking.
Hint: Lock both Wheels with 2 Units.
454kg Rated Ratchet Strap Set.
4.2m Length with Hook Ends.
PT2 Pulley Lock Tie Set

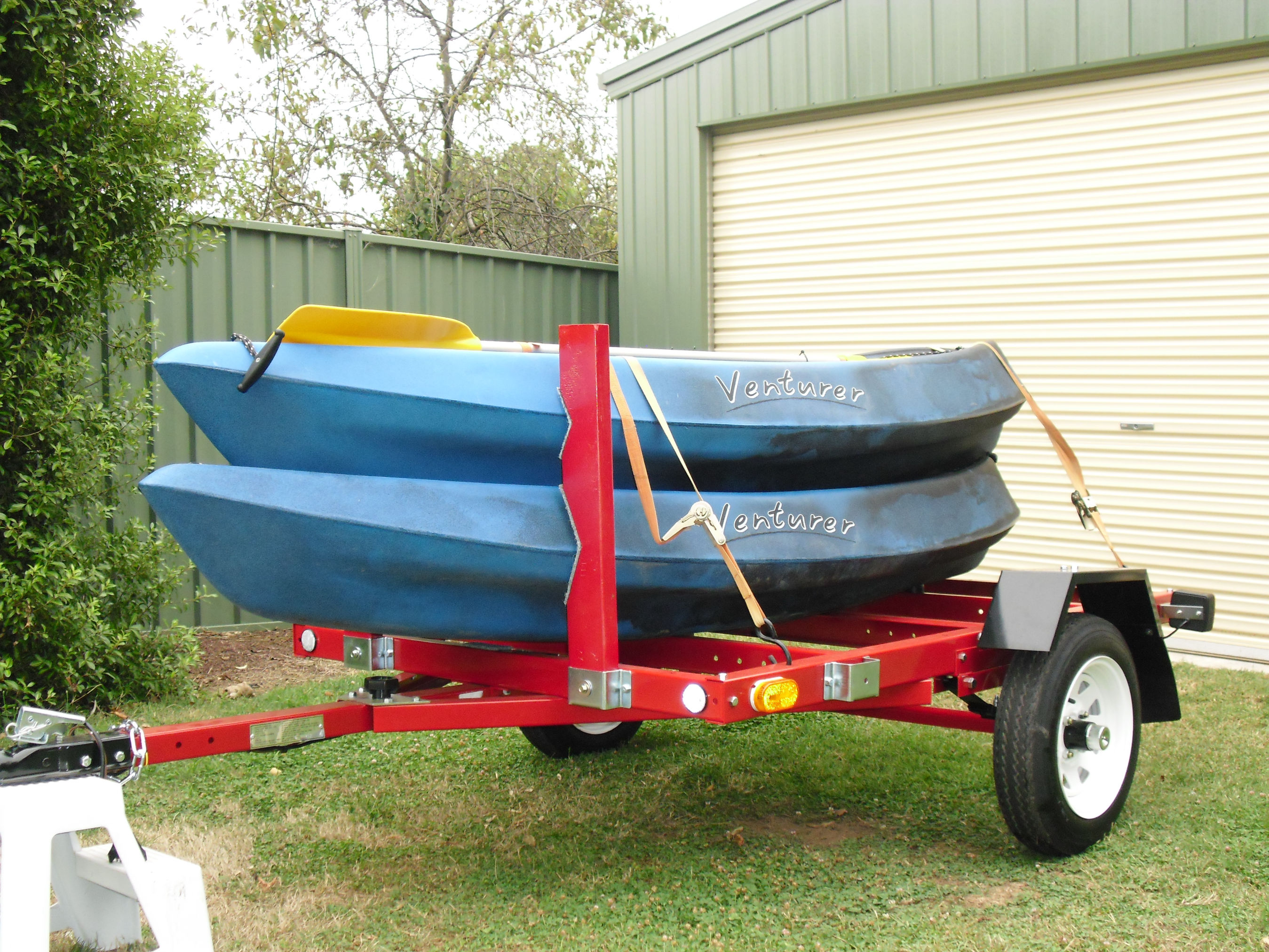

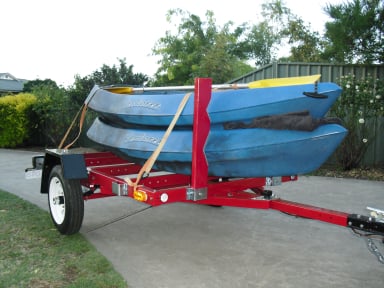

Kayak & Canoe Tie Set.
Soft Cord, Pulley Tie System.
Quick Release.
Use a RED Flag on OVERHANGING items.
Back of Kayaks, Boats, Lumber,
or anyting that exceeds the
back of the Trailer.
Safety for everyone.
400kg Rated HD Ramp.
1700mm Long x 380mm Wide.
Mesh Steel Surface
Ideal to Set a Thread into Plywood Floors to Mount Motorbike Channels, Boxes, and Other items Across the Floor of the Trailer.
10 Pack, includes 40mm Long Bolts & Spring Washers & 4 Pack Available.
