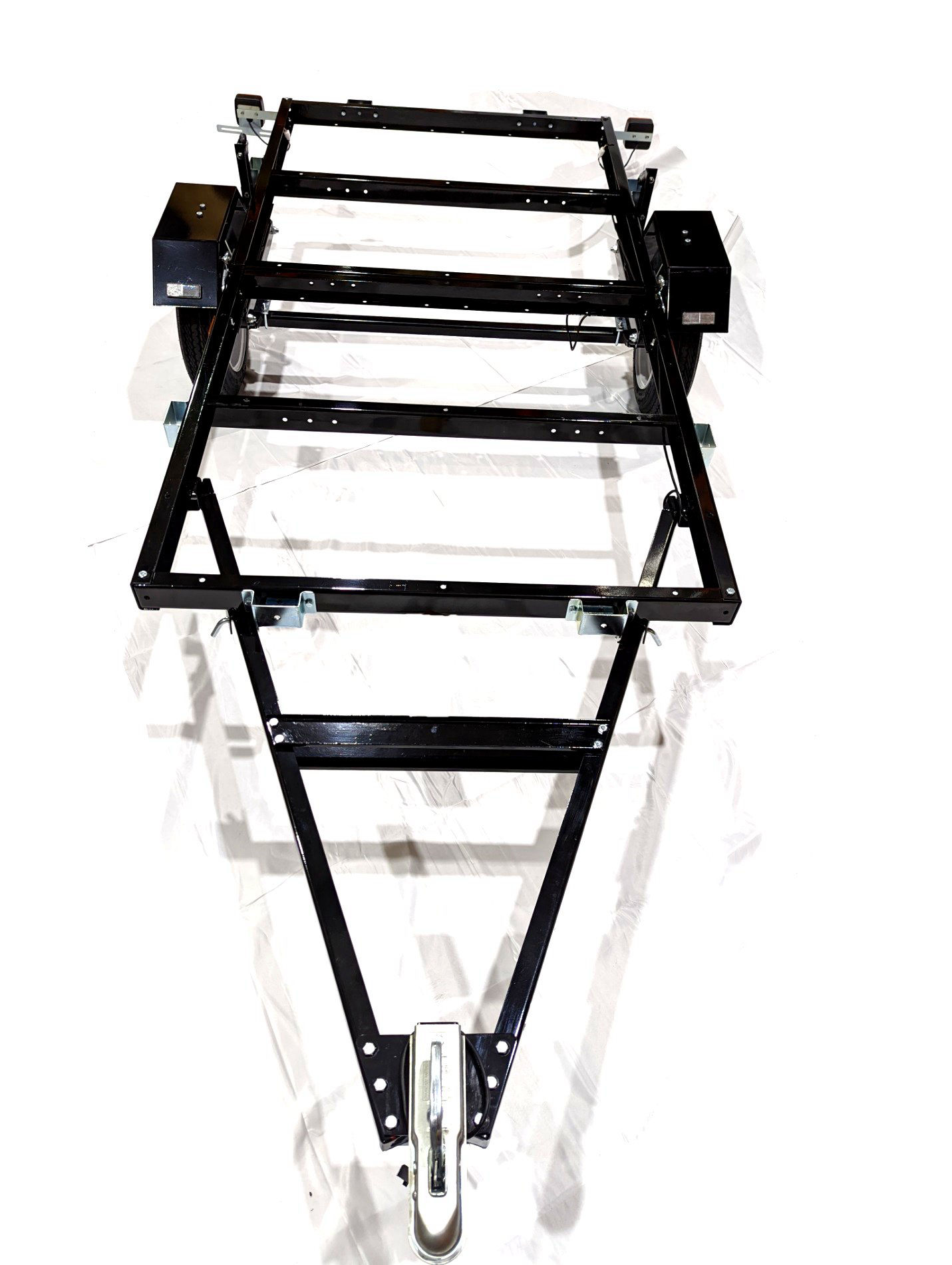

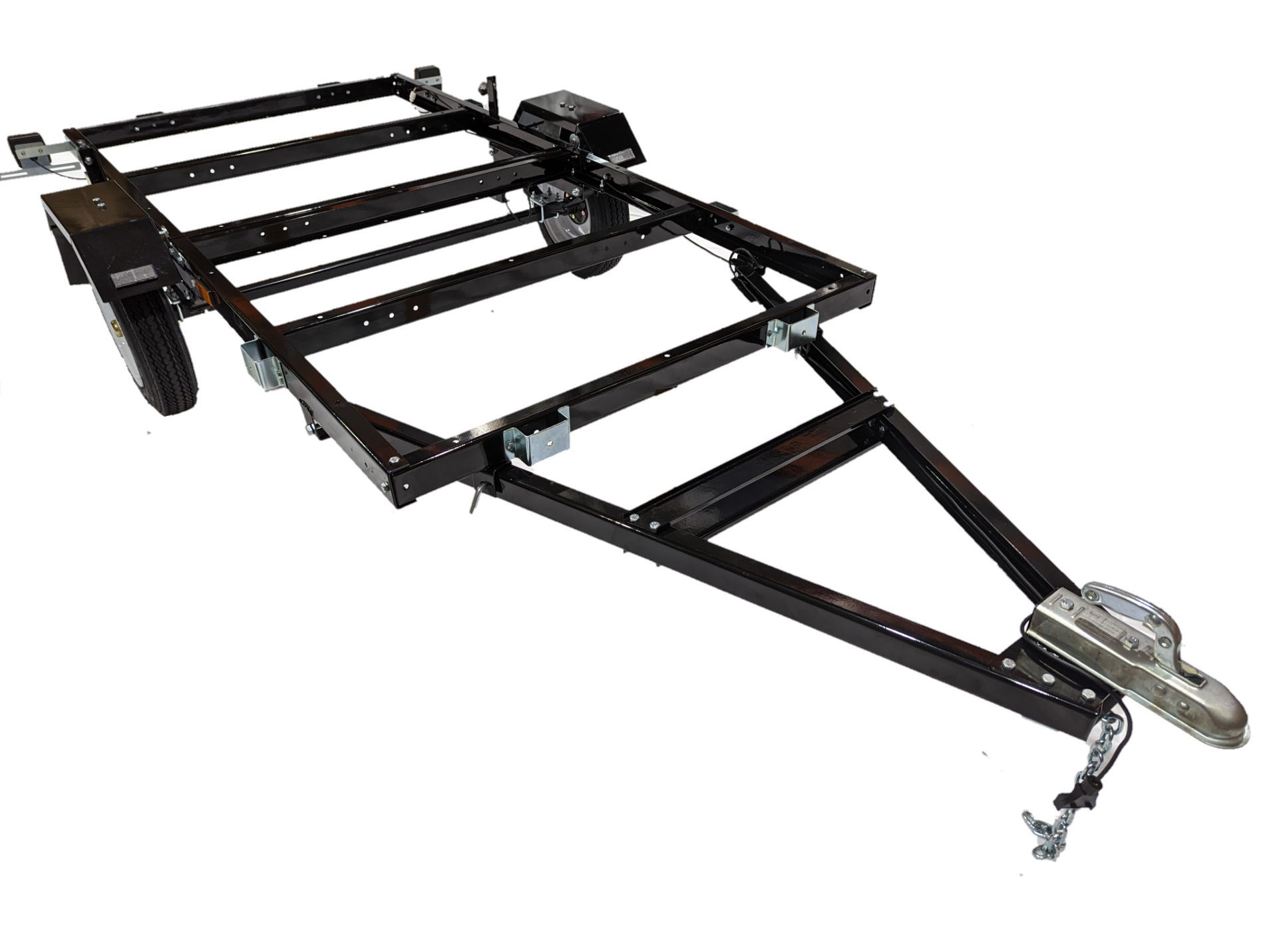

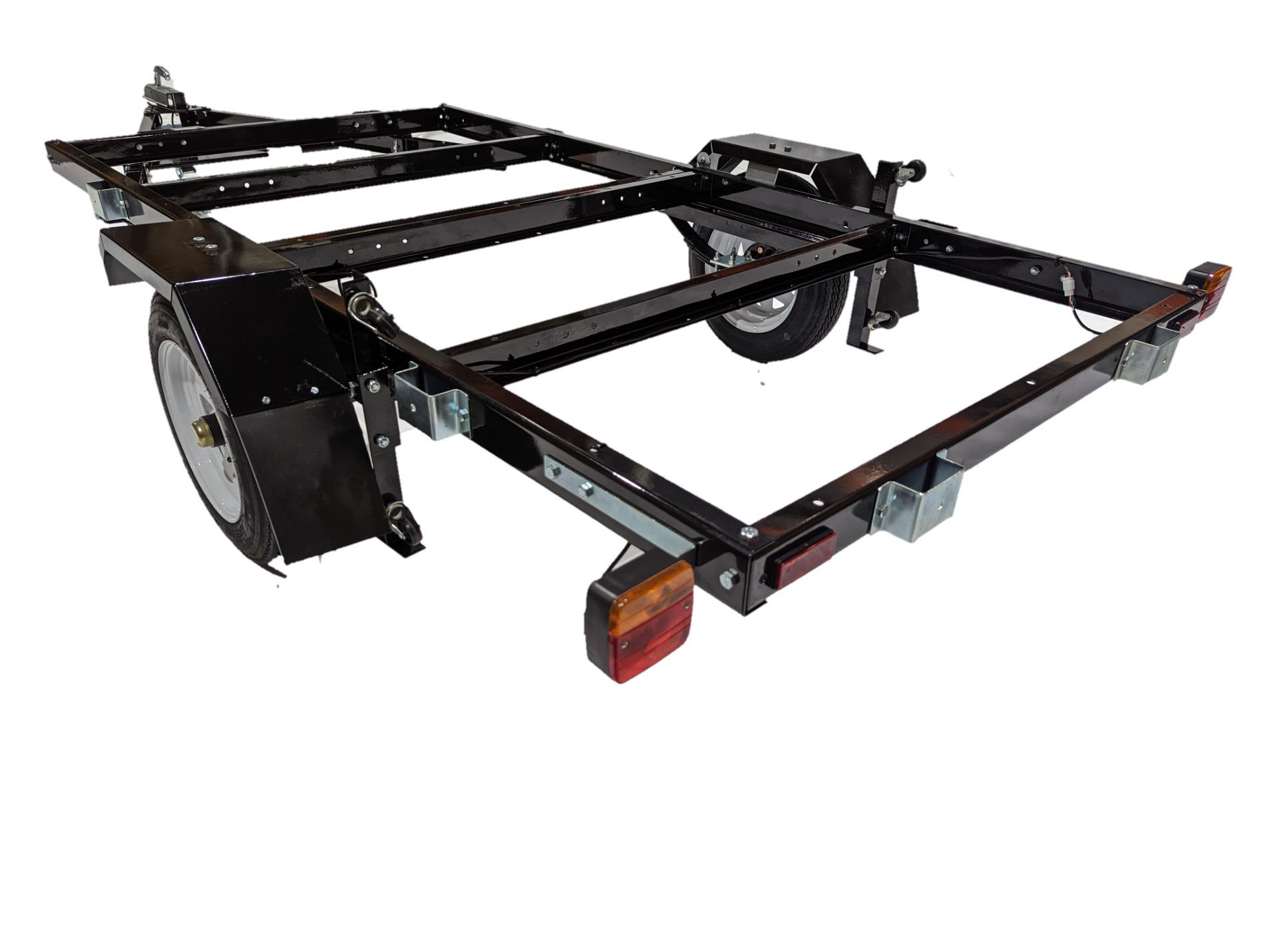

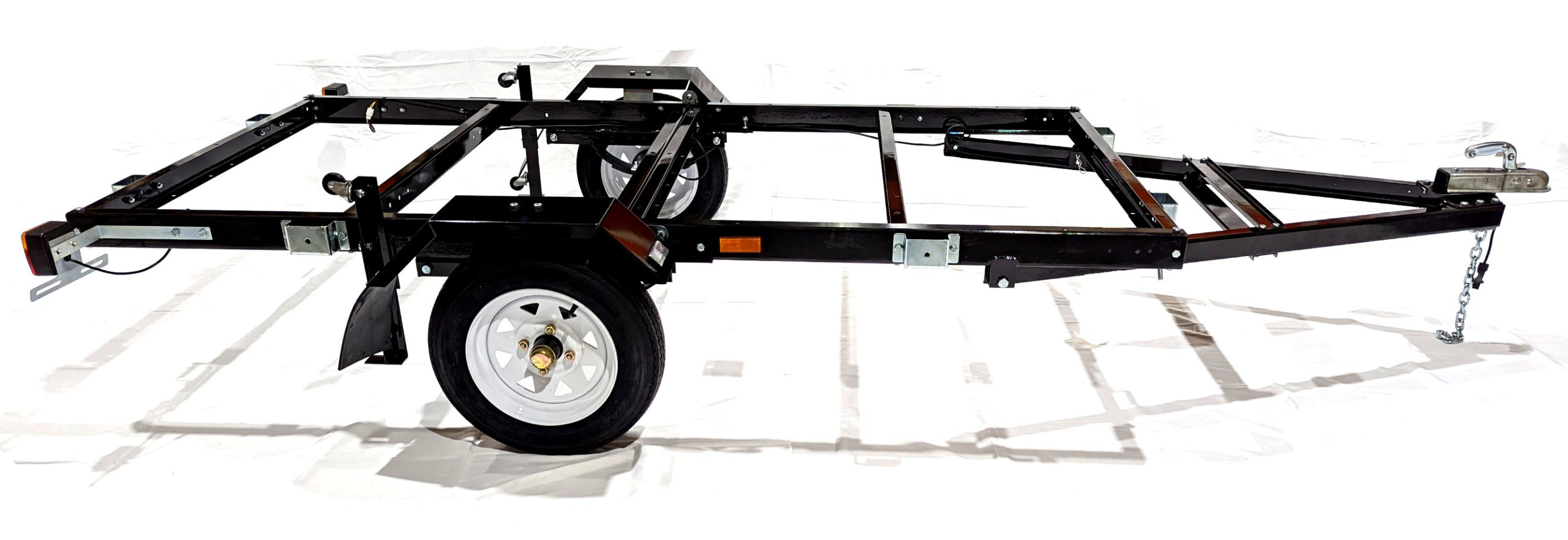

8 X 4 Foldable Chassis Only

Completed Ready to Tow Away Rolling Chassis
8' x 4' - 2440mm x 1220mm
Weight 110kg

Mobirise

Capacity 707kg ATM,
500+kg Payload
Bed Size 2440mm x 1220mm
(2000 lbs Frame Rating)
Overall Size 3580mm x 1600mm
Tare Weight 105kg
Compliance ADR / ECE
Finish High Gloss Powder Coat Red
Springs HT Slipper Leaf (990kg)
Wheels 12” White Spoke (5mm)

Tyres 20” 60PSI,
 4PLY High Speed (711kg)
Hubs/Axle 4 Stud, Cast Iron,
Easy Lube (990kg)
Bearings 2” Fully Tapered (1600kg)
Bed Height 500mm
Coupler 50mm (750kg)
Coupler Height 480mm

Frame “C” Section 3”x2” (2.5mm+)
Drawbar 1085mm 1.5”x2.25” (2.7mm+
Towball Weight 10% of GTM
Fender Height 100mm
Lights ADR Standard Combination Type Wiring 7-Pin Flat

Trailer can be Set as a Folding
or Rigid Trailer Modes.

Mobirise
Mobirise
Mobirise
Mobirise
Mobirise
Mobirise
Mobirise
Mobirise
Mobirise
Mobirise
Mobirise
Easytrailer

50mm Coupler

50mm Towball ADR/ECE
Qick Release Coupler.
Easy To Use & Hold Trailer.

EASYTRAILER

Leaf Spring Suspension

3 Leaf Slipper Springs.
Simple, Reliable,
Long Lasting.

Easytrailer

Easy Lube Hubs

Grease your Hubs easily via the Grease Fitting. Greases the Core of the Hub, Both Bearings Greased Quickly.

Easytrailer

HIgh Speed Trailer Wheels

Light Truck Trailer Tyres.
Highway Rated.
Low Drag, Fuel Efficent, and
Long Lasting.

Easytrailer

360 Degree Castors

Move in any Direction with Little Effort.
Wheels Through a Doorway

6x4 Folding Trailer

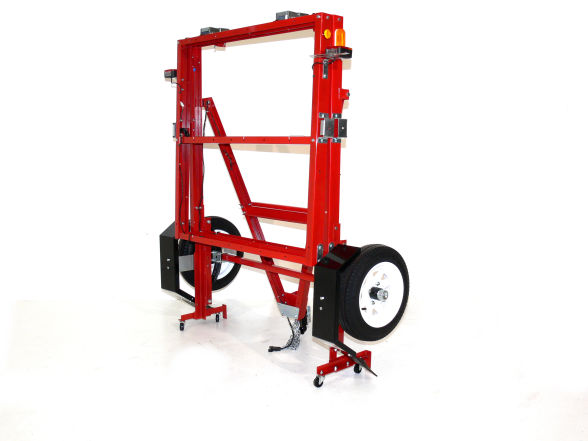

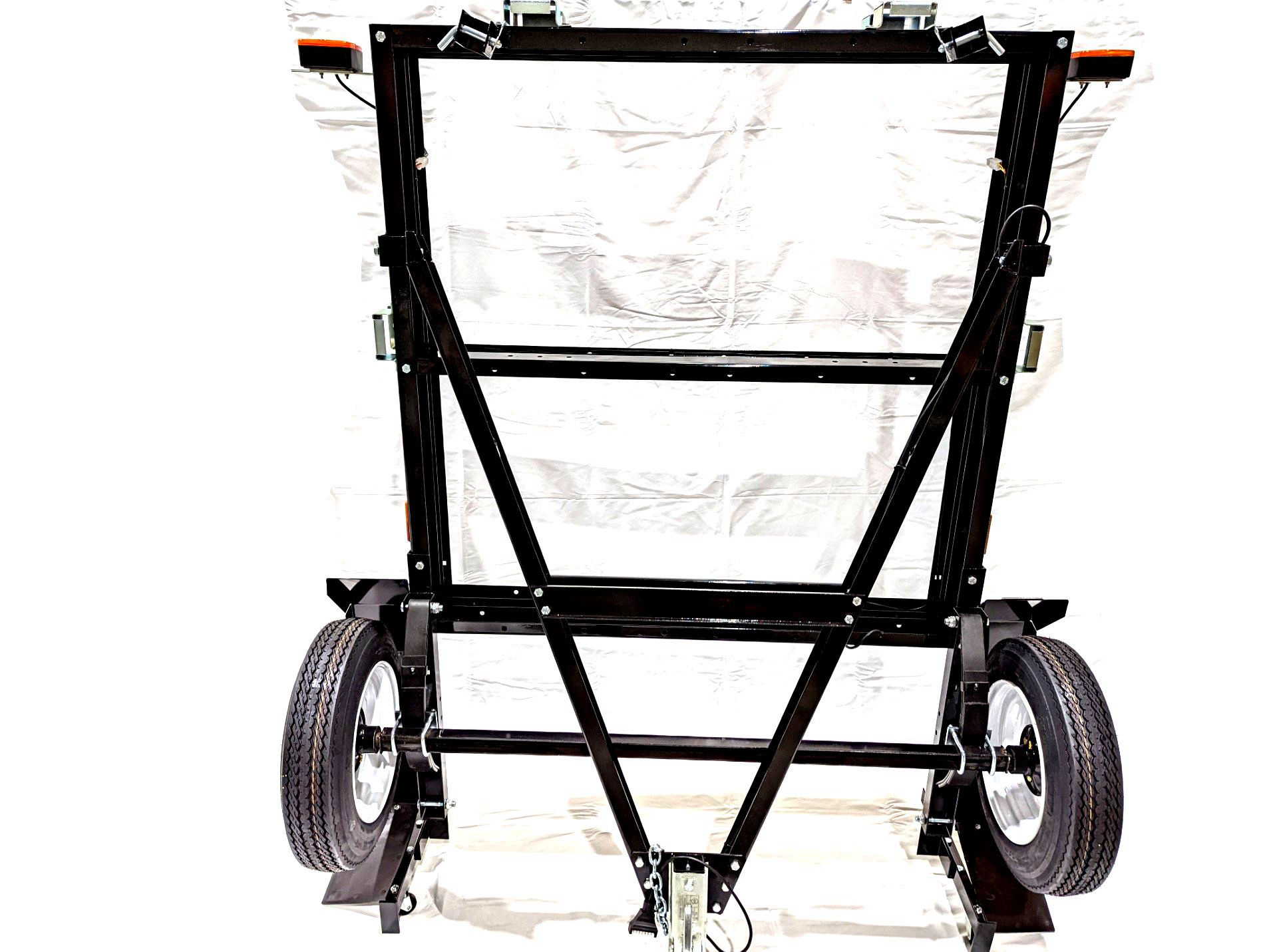

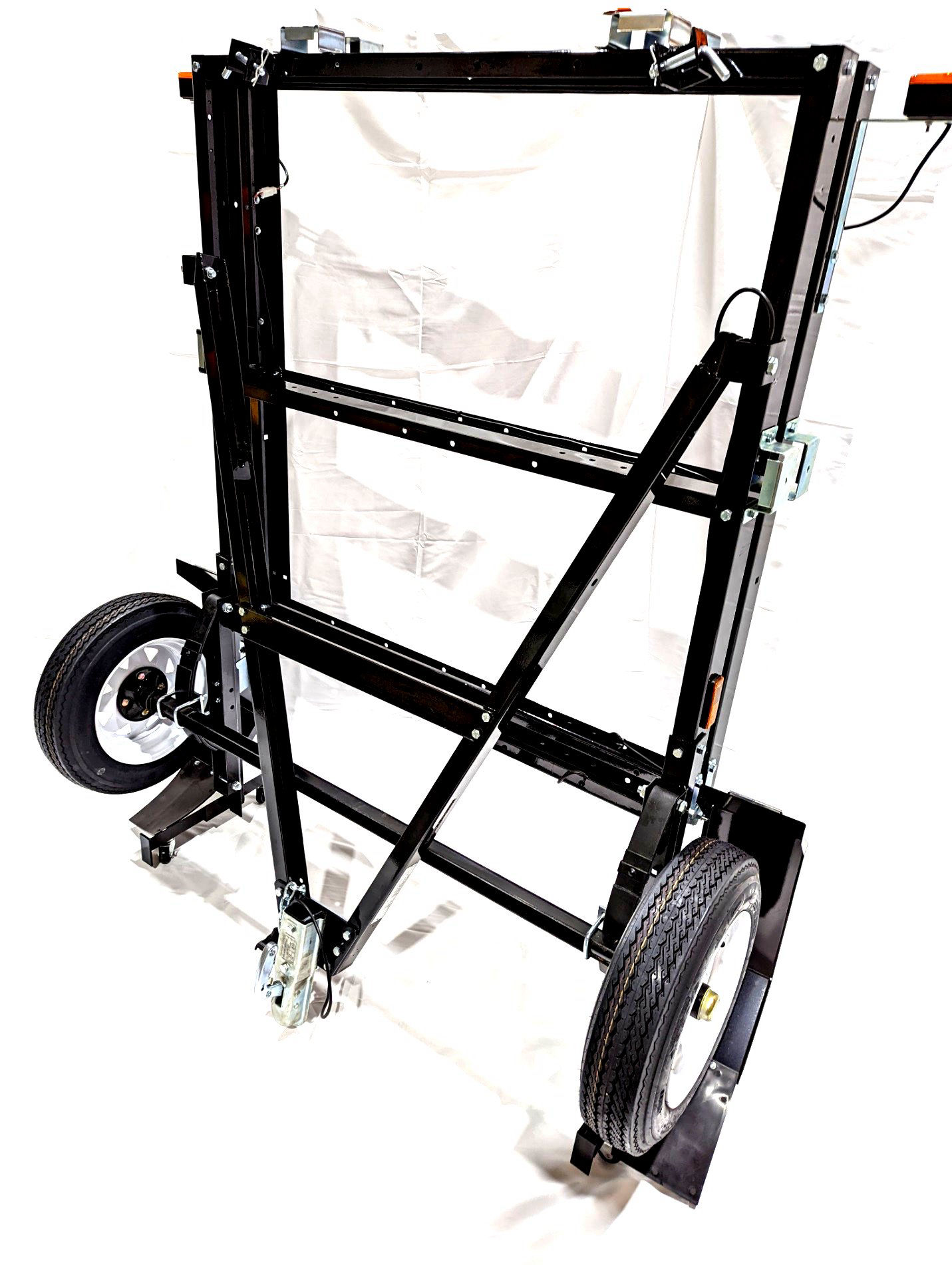

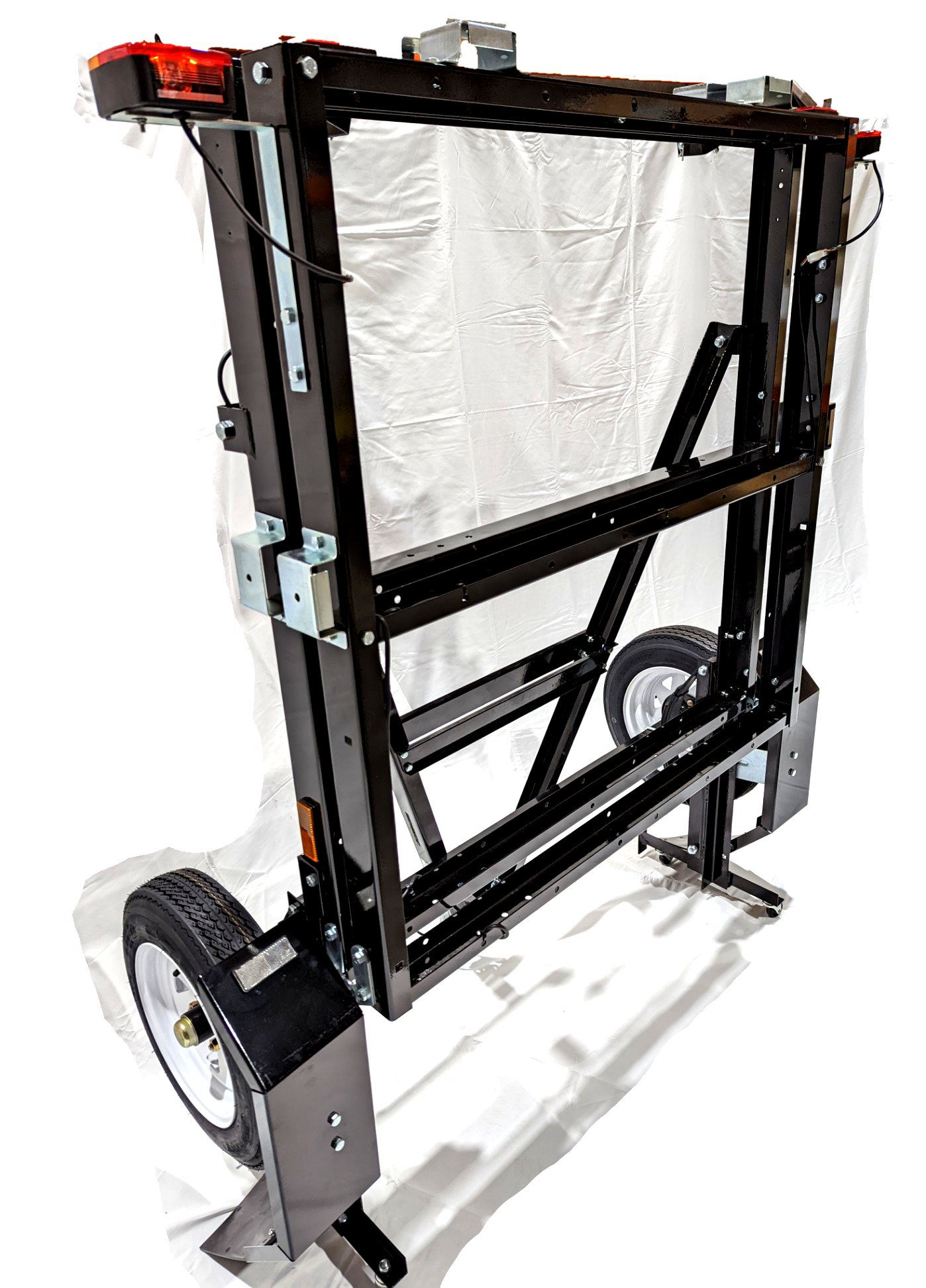

8 X 4 Folded Up

188cm Tall
160cm Wide
62cm Deep

Easytrailer

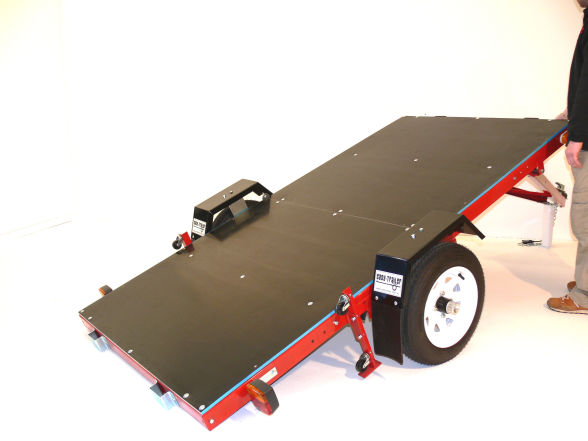

8 X 4 Tilt

Simple Tilting Feature.
Great for 3 & 4 Wheelers.

Easytrailer

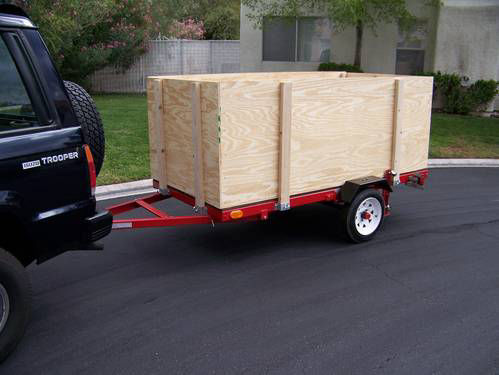

Stake Side Clamps

2 Stake Clamps Per Side
90mm x 40mm Timber Pocket
Make your Own Sides

Easytrailer

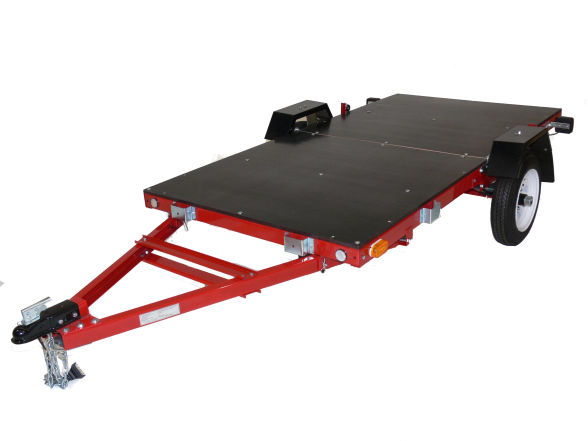

ADD a Floor

17mm HD Formply Floor
2 Piece Design
Lightweight & Strong

6x4 Folding Trailer

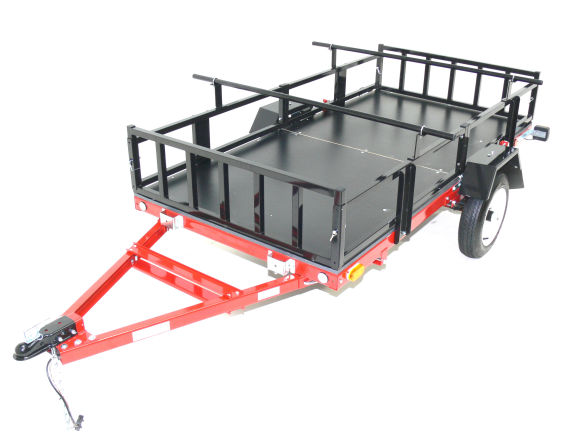

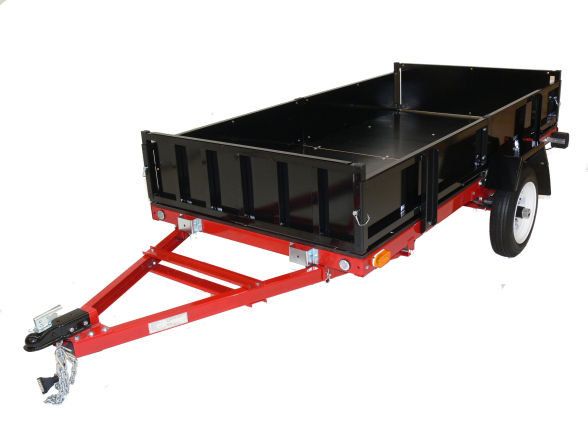

ADD Sides

Make it a Box Trailer
with Bolt On Sides
2 Types to Choose From

Easytrailer

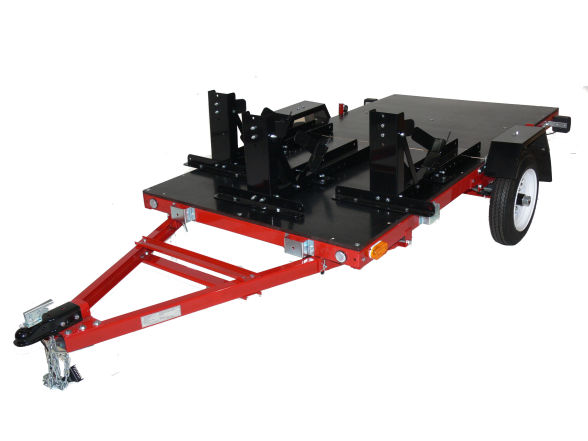

ADD Motorbike Options

Front Chocks, Transport Stands, Channels, Tie Rings, Ramps and More...

Easytrailer

ADD Sports Racks

Yakima and Thule Compatible Sports Rack System.
Add Bike & Kayak Holders, Pods and More...

Mobirise

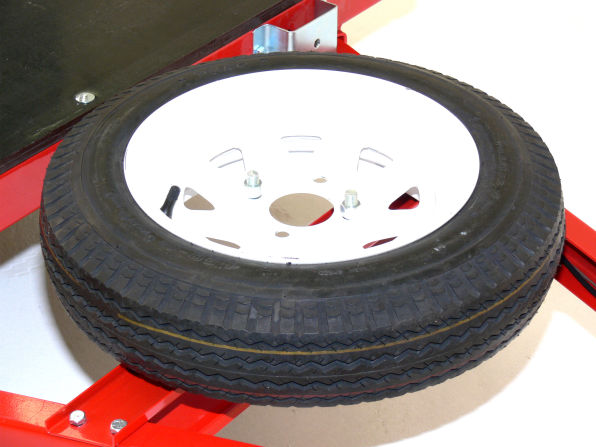

WR12 Wheel & Tyre

Highspeed R12 Wheel.

OPTIONAL: Holding U Bolt
Mount Below or Above Drawbar

Mobirise

SS Stabilser Stand

Multifit Folding Levelling Leg.
Folds Up & Locks into Place
Quick Height Adjustment
Fit to Drawbar / Rear of Trailer

Mobirise

TR-01 D Ring Packs

500kg Rated Traingle D Rings.
50mm Triangle, Inc Bolts.
Available in 10 or 4 Packs

Mobirise

46MX HD Motorbike Stand

The Ultimate Motorcycle Transport Stand. 750kg Rated.
Holds Front Wheel & Stand Your Bike Upright.

Mobirise

30MF Motorbike Front Chock

130mm Wide x 950mm Long
50mm Tall Sides
Suits all Motorcycles up to 120mm Wide Tyres.

Mobirise

JW Jockey Wheel

Dual Wheel, 6" Castors.
Folding Design.
Note:
ADDs 8kg to Drawbar Weight

Mobirise

46TB Tie Bar Set

500mm Long Frame Extension
Bars to Extend Tie Straps Outside the Frame

Mobirise

46RK HD Sports Crossbars

300kg Rated, 1600mm Wide
30mm Square HD Pipe.
ADD Thule & Yakima Sports Accessories to Carry Bikes, Kayaks and More

Mobirise

CKEYLOK1 Coupler Handle Lok

Locks the Operation of the Coupler Handle Completely.
Unique Internal Key Lock.
Cannot Remove wihout KEY.

Mobirise

CPARKLOK2
Parking Coupler Lock

Off Car Trailer Parking Lock.
Integral Tow Ball Locking System when Trailer is Parked.

Mobirise

WC Parking Wheel Clamp

HD Wheel Clamp Suits from R12 Up. Key Locking.
Hint: Lock both Wheels with 2 Units.

Mobirise

STX4 Ratchet Strap x 4

454kg Rated Ratchet Strap Set.
4.2m Length with Hook Ends.

Mobirise

        PT2 Pulley Lock Tie Set

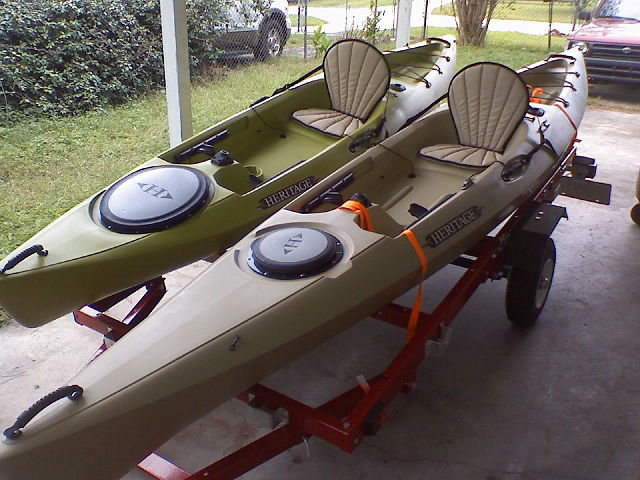

Kayak & Canoe Tie Set.
Soft Cord, Pulley Tie System.
Quick Release.

Mobirise

RF Red Flag

Use a RED Flag on OVERHANGING items.

Back of Kayaks, Boats, Lumber,
or anyting that exceeds the
back of the Trailer.

Safety for everyone.

Mobirise

17R HD Steel Ramp

400kg Rated HD Ramp.
1700mm Long x 380mm Wide.
Mesh Steel Surface

Mobirise

TEE Universal T Nut Set

Ideal to Set a Thread into Plywood Floors to Mount Motorbike Channels, Boxes, and Other items Across the Floor of the Trailer.
10 Pack, includes 40mm Long Bolts & Spring Washers & 4 Pack Available.
