8'x4' - 2440mm x 1220mm

Foldable Roll A Way Trailer, Space Saving Design

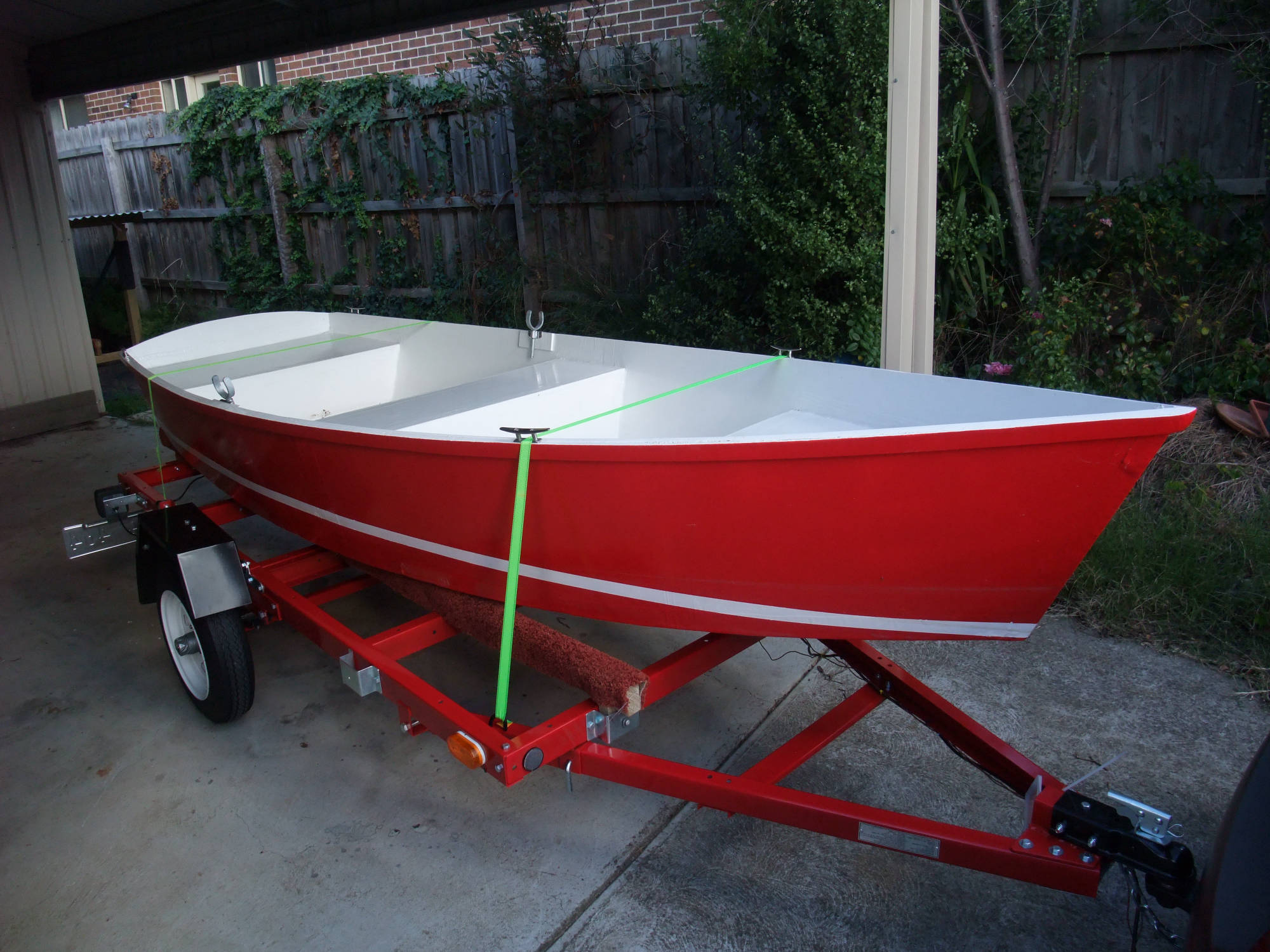

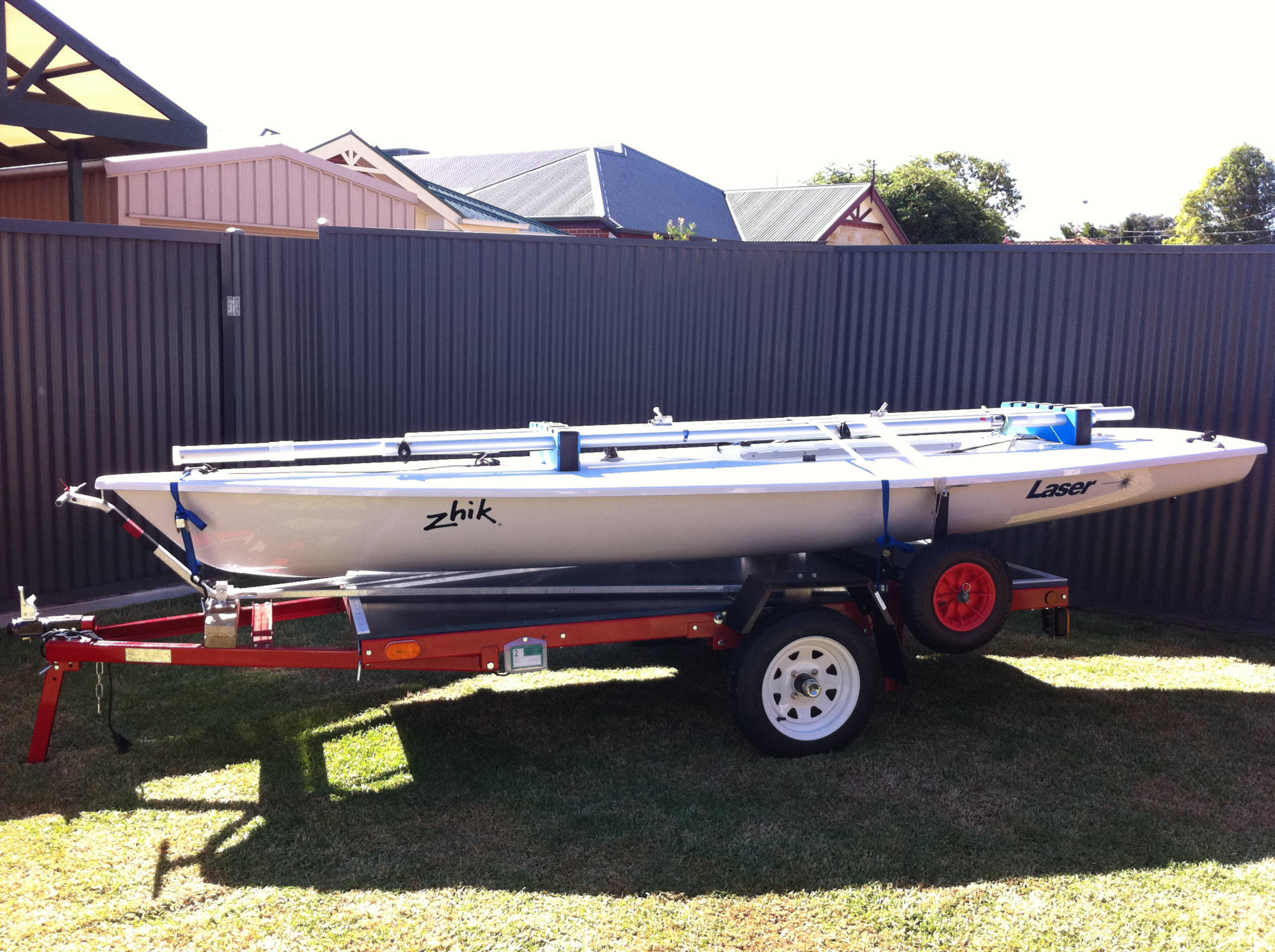

Convertible Trailer to Motorbike, Box, Kayak, Flat Top & More

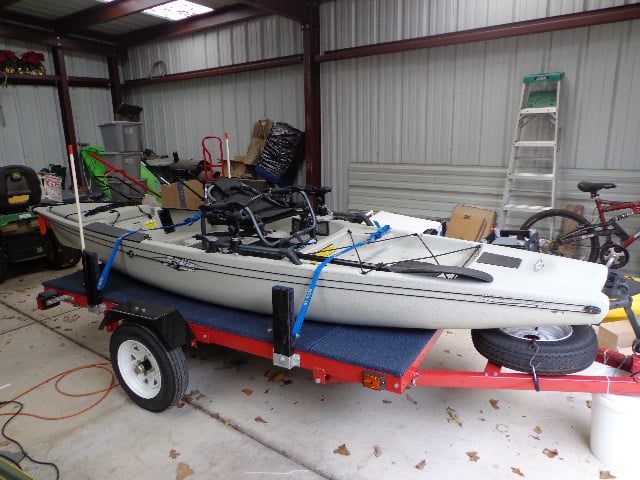

Kayaks & Fishing Kayaks up to 4.8m*

Capacity 707kg ATM,
500+kg Payload
Bed Size 2440mm x 1220mm
(2000 lbs Frame Rating)
Overall Size 3580mm x 1600mm
Tare Weight 105kg
Compliance ADR / ECE
Finish High Gloss Powder Coat Red
Springs HT Slipper Leaf (990kg)
Wheels 12” White Spoke (5mm)

Tyres 20” 60PSI,
 4PLY High Speed (711kg)
Hubs/Axle 4 Stud, Cast Iron,
Easy Lube (990kg)
Bearings 2” Fully Tapered (1600kg)
Bed Height 500mm
Coupler 50mm (750kg)
Coupler Height 480mm

Frame “C” Section 3”x2” (2.5mm+)
Drawbar 1085mm 1.5”x2.25” (2.7mm+
Towball Weight 10% of GTM
Fender Height 100mm
Lights ADR Standard Combination Type Wiring 7-Pin Flat

Trailer can be Set as a Folding
or Rigid Trailer Modes.

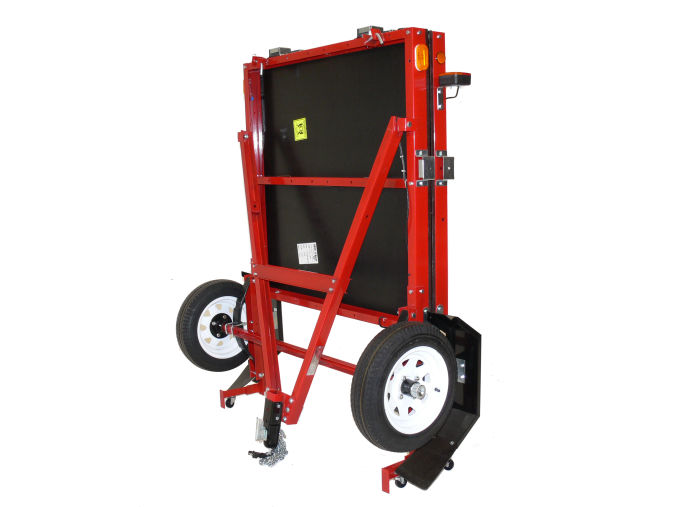

Folding Roll A Way

Folds & Rolls Through A Doorway.
360 Deg Castor Wheel System.
Folds with Floor and Without.
Folded Dimensions:
160cm W x 188cm T x 62cm D

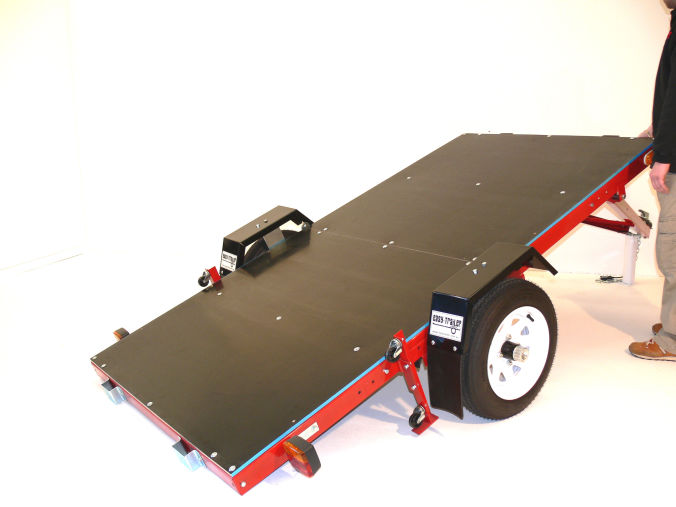

Simple Tilting Feature

Lighweight to Lift.

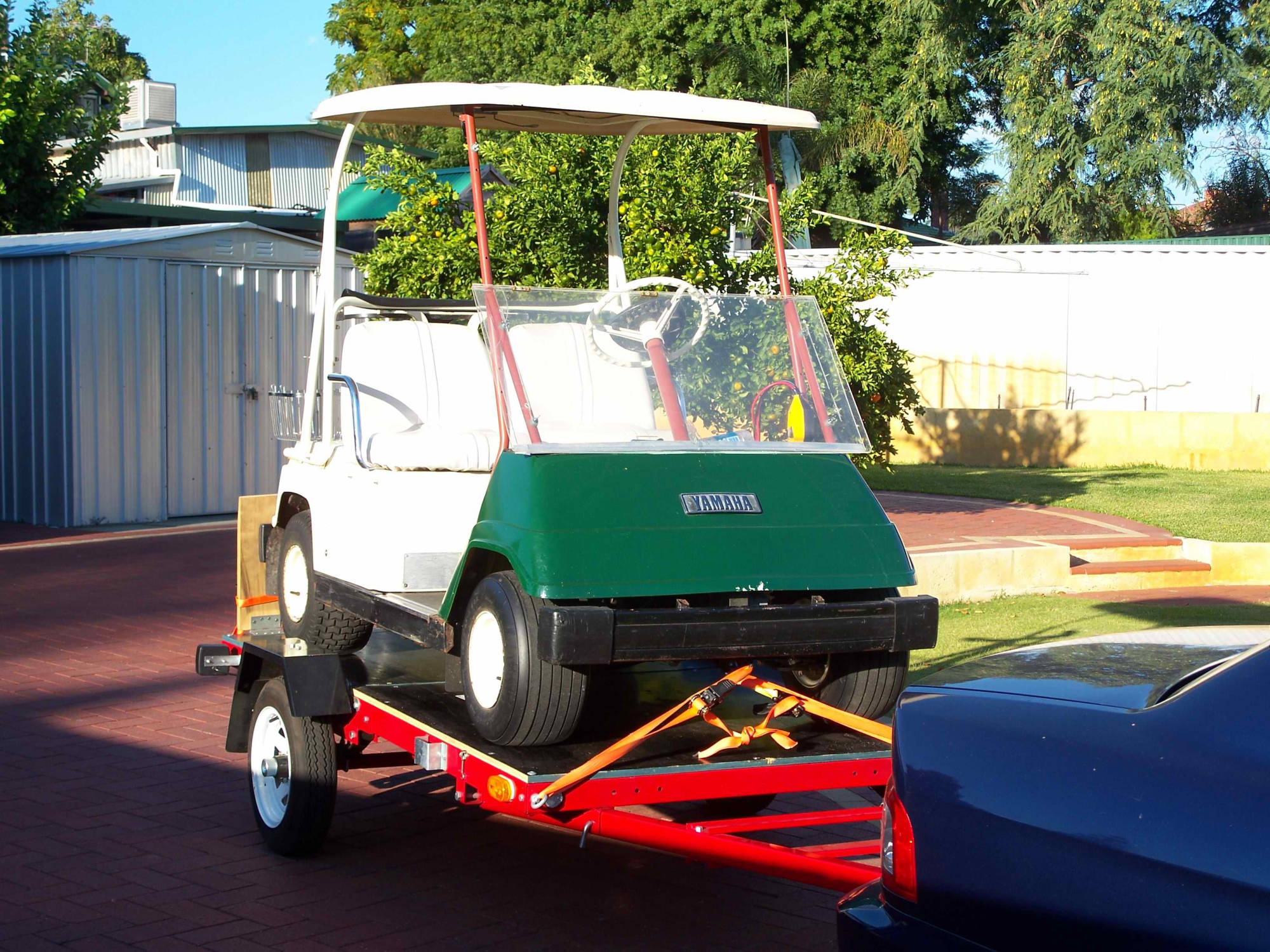

Fantastic for Off Loading or
Loading 3 to 4 Wheelers.

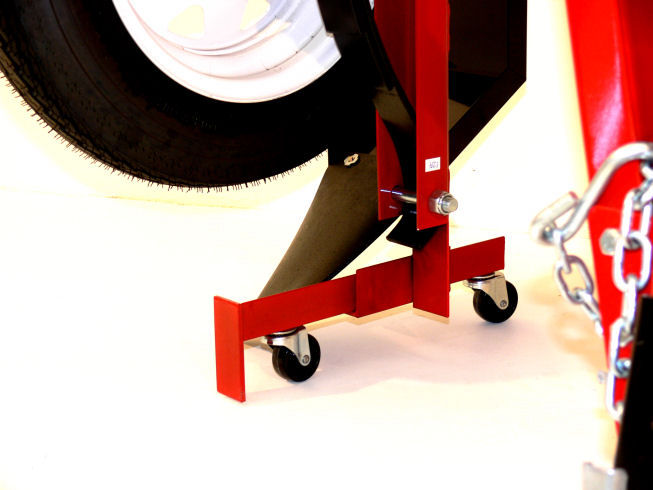

360 Degree Castor Wheels

Move your Trailer Sideways, Frontways,
in Circles. Full Movement.

Goes into an elevator & take it to your
20th floor Apartment.


50mm Coupler

50mm Towball ADR/ECE
Qick Release Coupler.
Easy To Use & Hold Trailer.

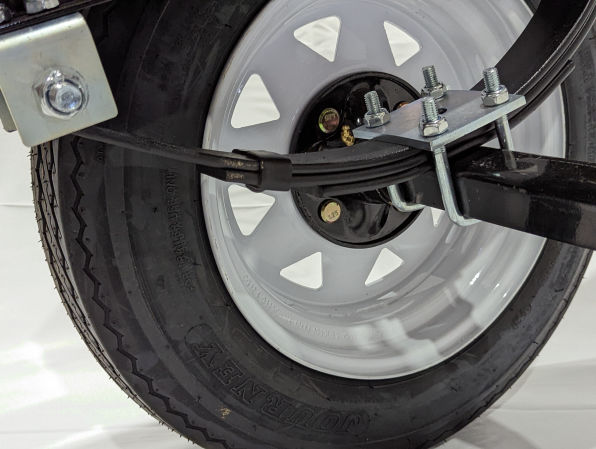

Leaf Spring Suspension

3 Leaf Slipper Springs.
Simple, Reliable,
Long Lasting.

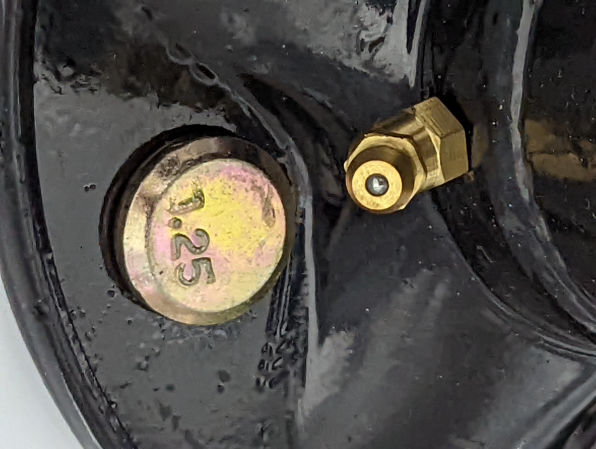

Easy Lube Hubs

Grease your Hubs easily via the Grease Fitting. Greases the Core of the Hub, Both Bearings Greased Quickly.

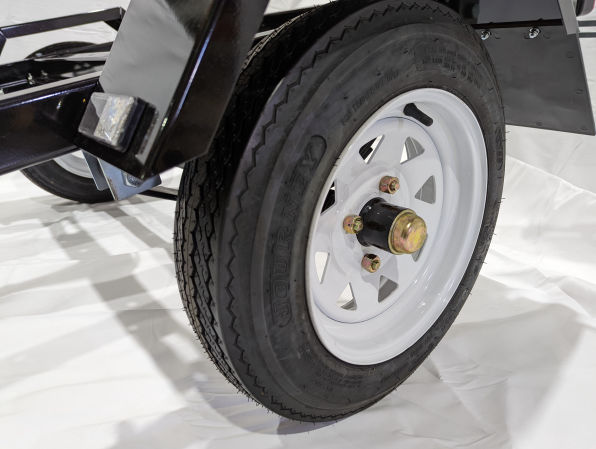

HIgh Speed Trailer Wheels

Light Truck Trailer Tyres.
Highway Rated.
Low Drag, Fuel Efficent, and
Long Lasting.

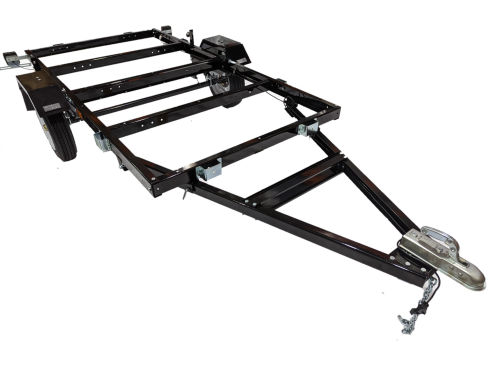

8 X 4 Chassis Trailer

Complete Rolling Chassis Kit.
Folding Roll A Way.

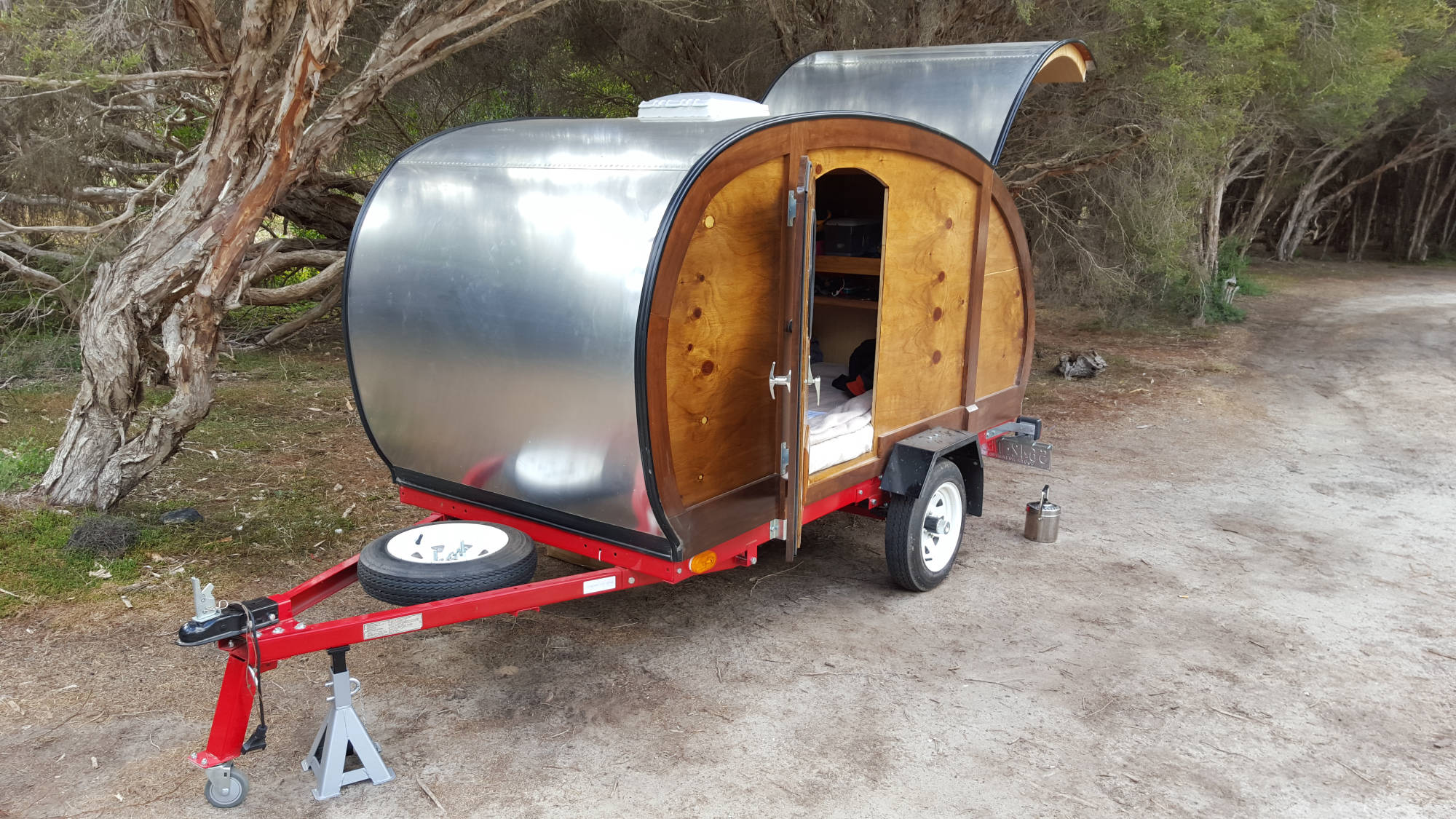

Ideal for your next Small Trailer Project.

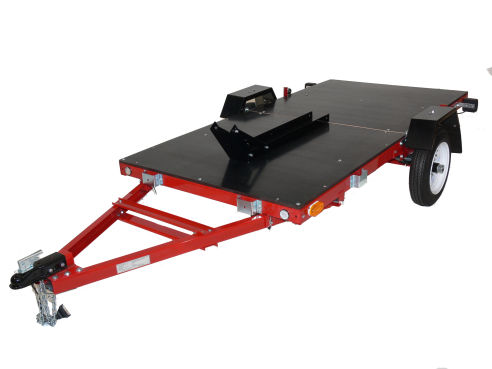

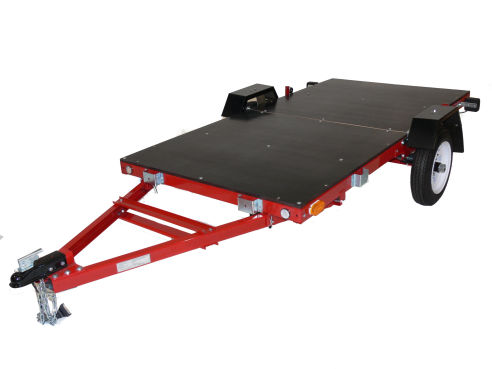

8 X 4 Flat Top Trailer

17mm Formply Floor.
Lightweight but Strong.
Folding Roll A Way.
Basic Tilt Feature.

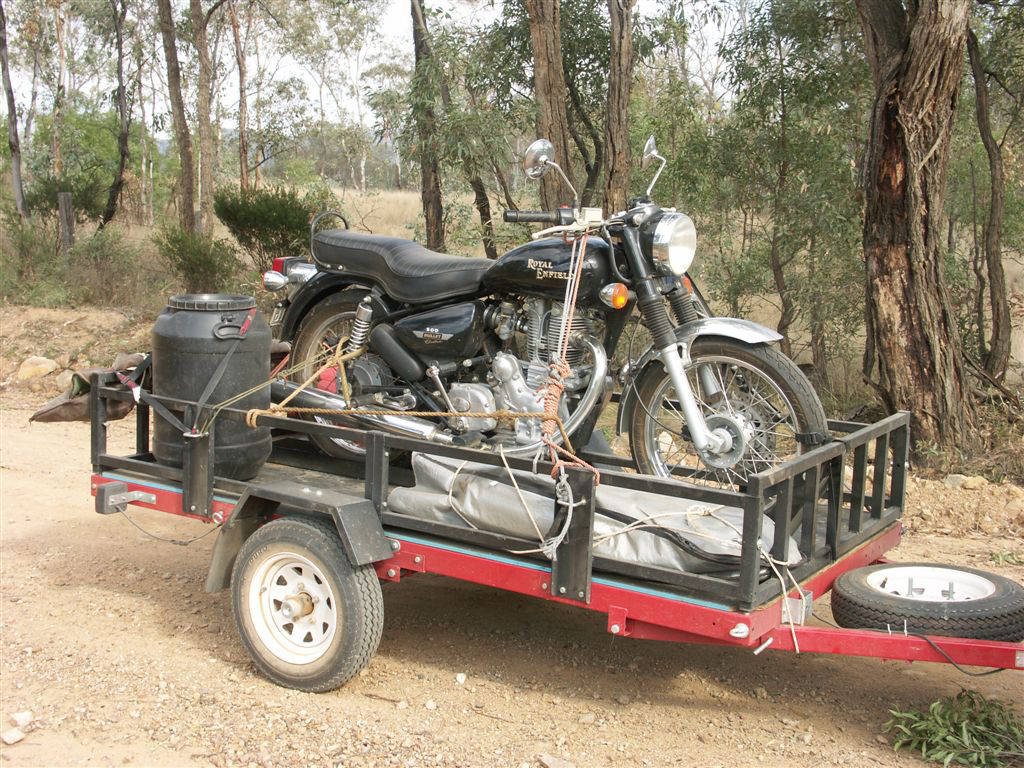

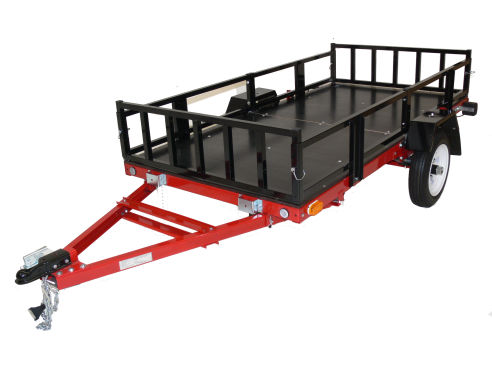

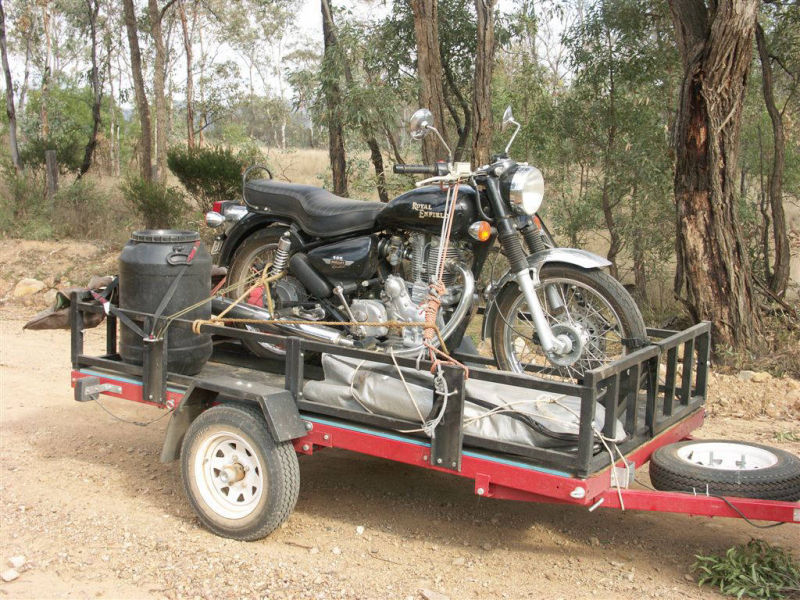

8 X 4 HD Rail Sides Trailer

Open Box Tube Rail Sides. Front & Rear Gates are Ramps!
Ideal for ATV's & 4 Wheelers.

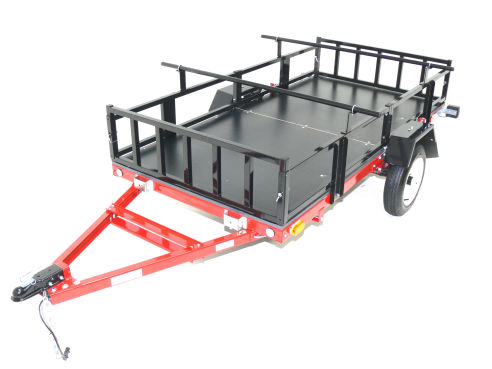

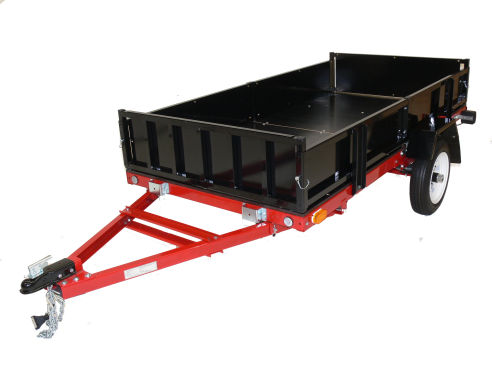

8 X 4 HD Rail Box Sides Trailer

Open Box Tube Rail Sides combined with Steel Panels Skins.
Front & Rear Gates are Ramps!
The Ultimate Sides Kit.

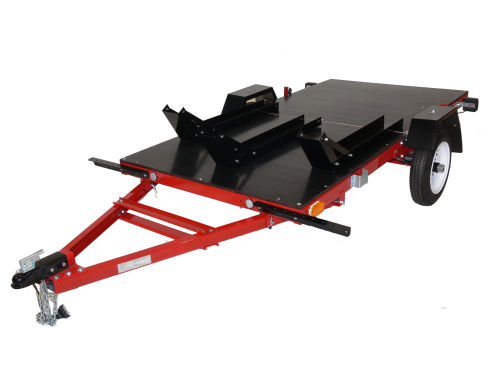

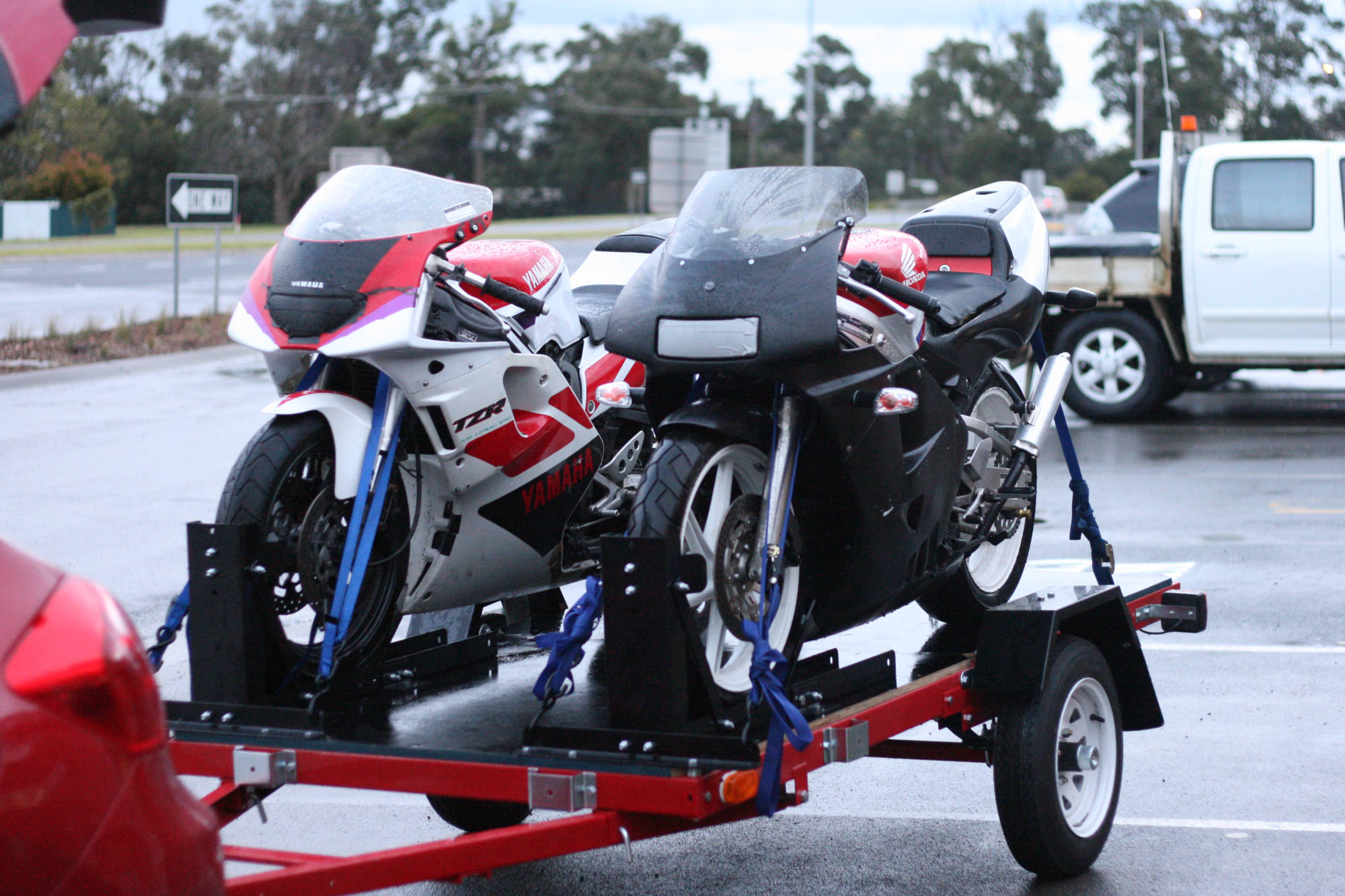

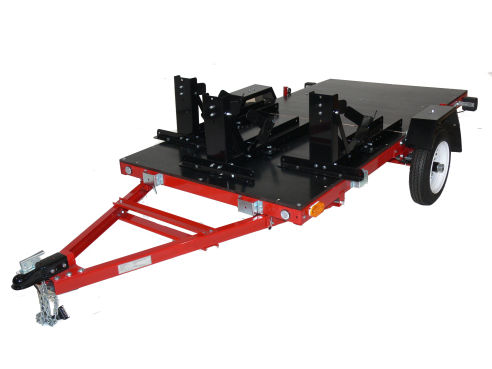

8 X 4 Motorbike Trailers

2 to 3 Motorcycle Combinations with
Basic Front
Wheel Chocks

8 X 4 Sports Motorcycle Trailers

1 to 3 Motorbike Combinations with
Superior HD Bike Chocks.

8 X 4 Simple Motorcycle Trailers

1 Motorbike Combination.
Simple Set Ups.

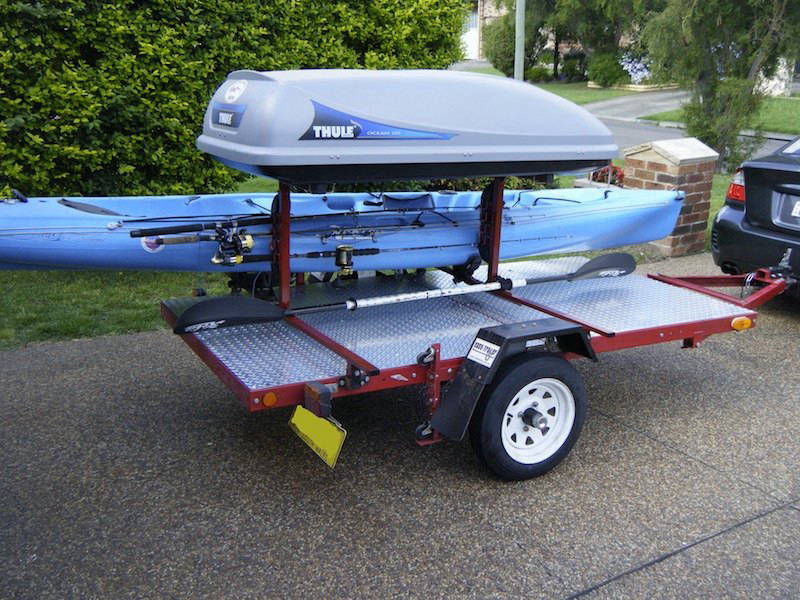

8 X 4 Sports Crossbar Trailers

1600mm Wide HD Crossbars.
USE Thule or Yakima Roof Products to carry Kayaks and Bikes.
