Box Trailer Sides with Loading Ramps

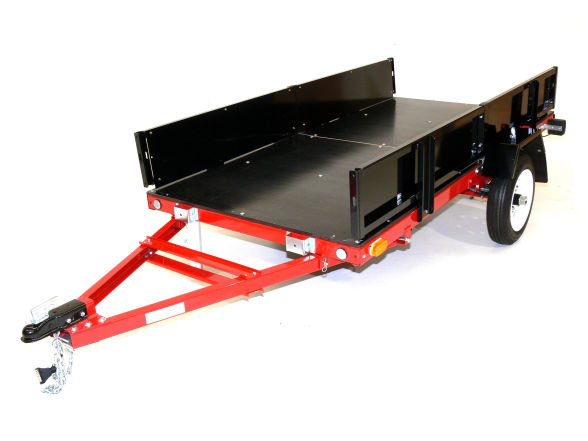

Lightweight Box Trailer Foldable 8x4


Lightweight Full Sized Foldable Box Sided Trailer with Bolt on and Off Sides. Steel Trailer Sides are 330mm Tall and the Front and Rear Gates Double Up as Loading Ramps. Loading Ramps are 1220mm Long. Sides Comprise of 50RR Open Rail Sides and Steel Panels Applied to Enclose the Sides to a Box Trailer. The Sides Can be Removed Easily into Four Pieces for Storage and the Trailer Becomes a Flat Top Trailer That Can Fold Up to Save Space. Easy to Tow.
Total Trailer Weight 205kg


Foldable Box Trailer | Easy Trailer
Foldable Box Trailer 8x4 | Easy Trailer
Foldable Trailer Loading Ramps | Easy Trailer
Folding Box Trailer Folded Up | Easy Trailer

Trailer Specifications Features and Trailer Accessories

Capacity 707kg ATM,
500+kg Payload
Bed Size 2440mm x 1220mm
(2000 lbs Frame Rating)
Overall Size 3580mm x 1600mm
Tare Weight 110kg + Accessories
Compliance ADR / ECE
Finish High Gloss Powder Coat Black
Springs HT Slipper Leaf (990kg)
Wheels 12” White Spoke (5mm)

Tyres 20” 60PSI,
 4PLY High Speed (711kg)
Hubs/Axle 4 Stud, Cast Iron,
Easy Lube (990kg)
Bearings 2” Fully Tapered (1600kg)
Bed Height 500mm
Coupler 50mm (750kg)
Coupler Height 480mm

Frame “C” Section 3”x2” (2.5mm+)
Drawbar 1085mm 1.5”x2.25” (2.7mm+
Towball Weight 10% of GTM
Fender Height 100mm
Lights ADR Standard Combination Type Wiring 7-Pin Flat

Trailer can be Set as a Folding
or Rigid Trailer Modes.

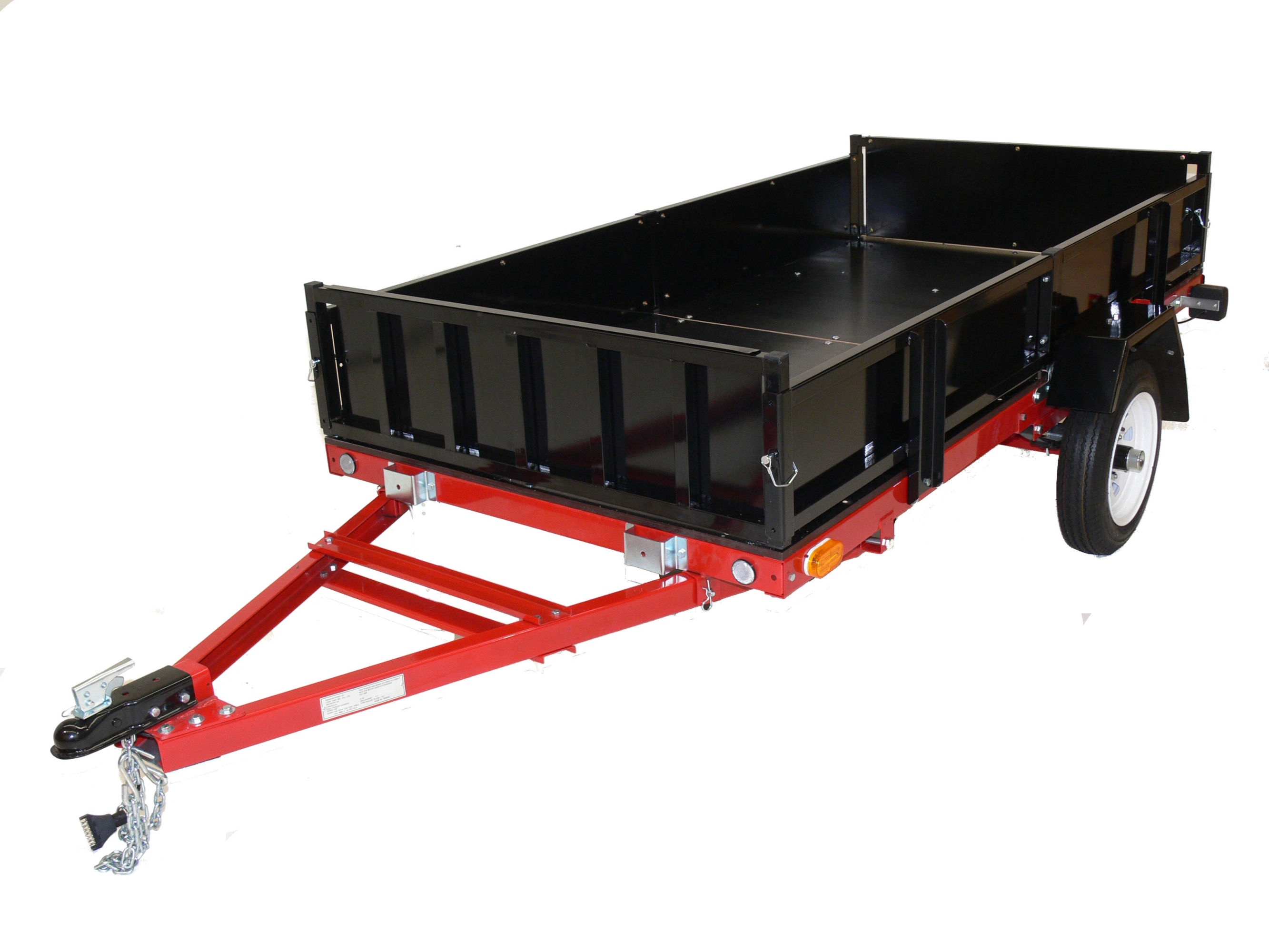

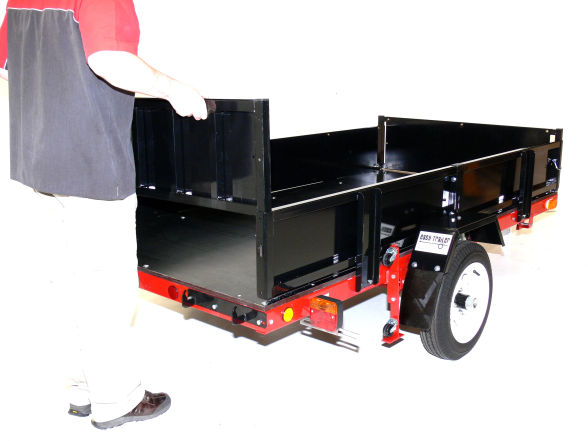

Trailer with Removable Box Trailer Sides

Box Trailer With Loading Ramps

4 Panel Design
Bolted to Sides of Trailer
Steel Panel Kit -
TEK Screw Attachment
330mm High
2380mm x 1160mm Inside Box
Quick Pin Lift Off Ramp Set
Includes 2 x Ramp Hooks

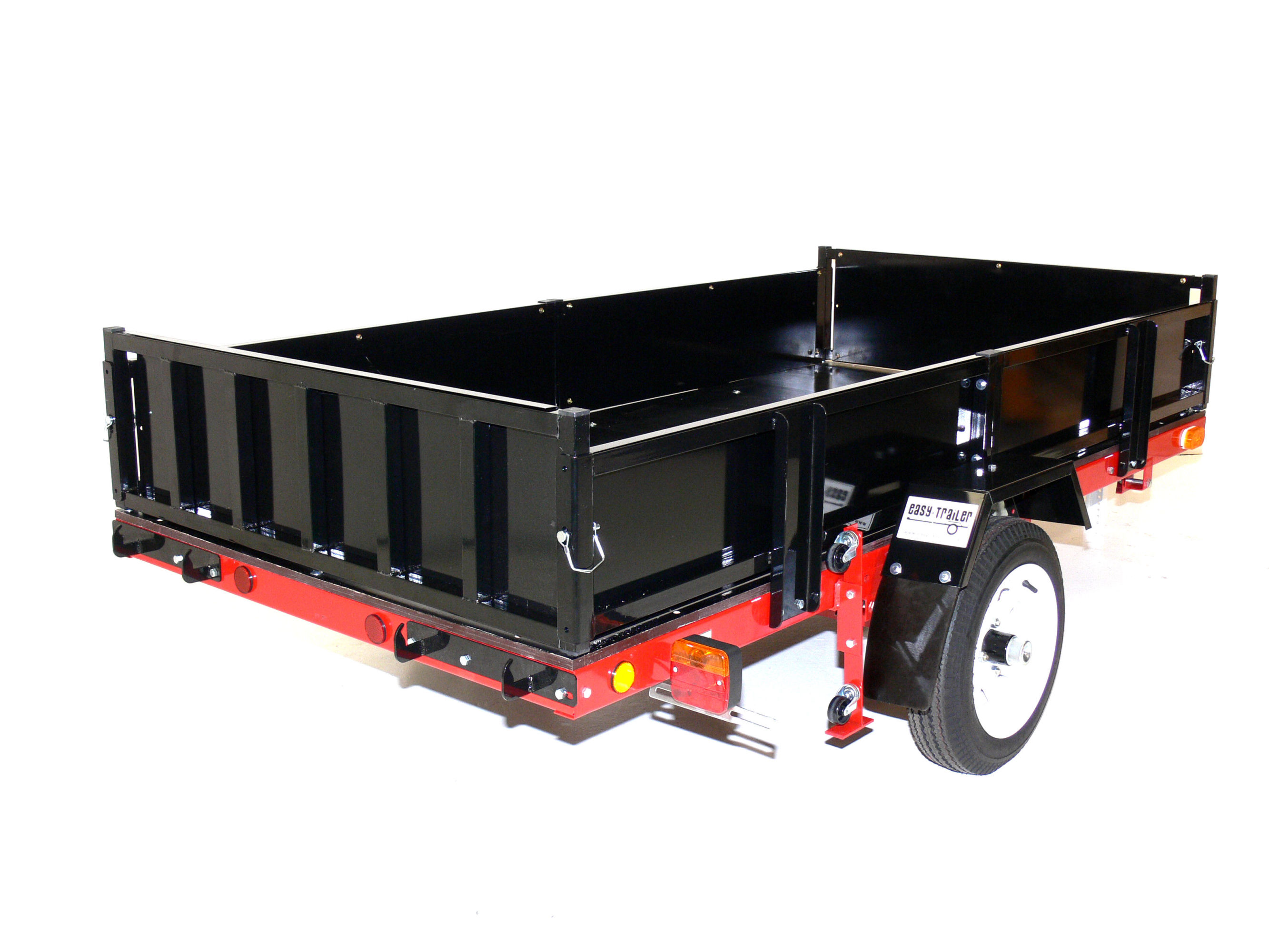

Heavy Duty Box Trailer Sides

Box Trailer Ramp Hook and Side Details

Unique Ramp Hook System.
Lock the Ramp in Use & Use them on the Ladder Side
or the Flat Metal Side
Left or Right Universal.
NOTE: Gap in Front & Back Panels is 25mm Each Side to Engage Ramp Hooks.

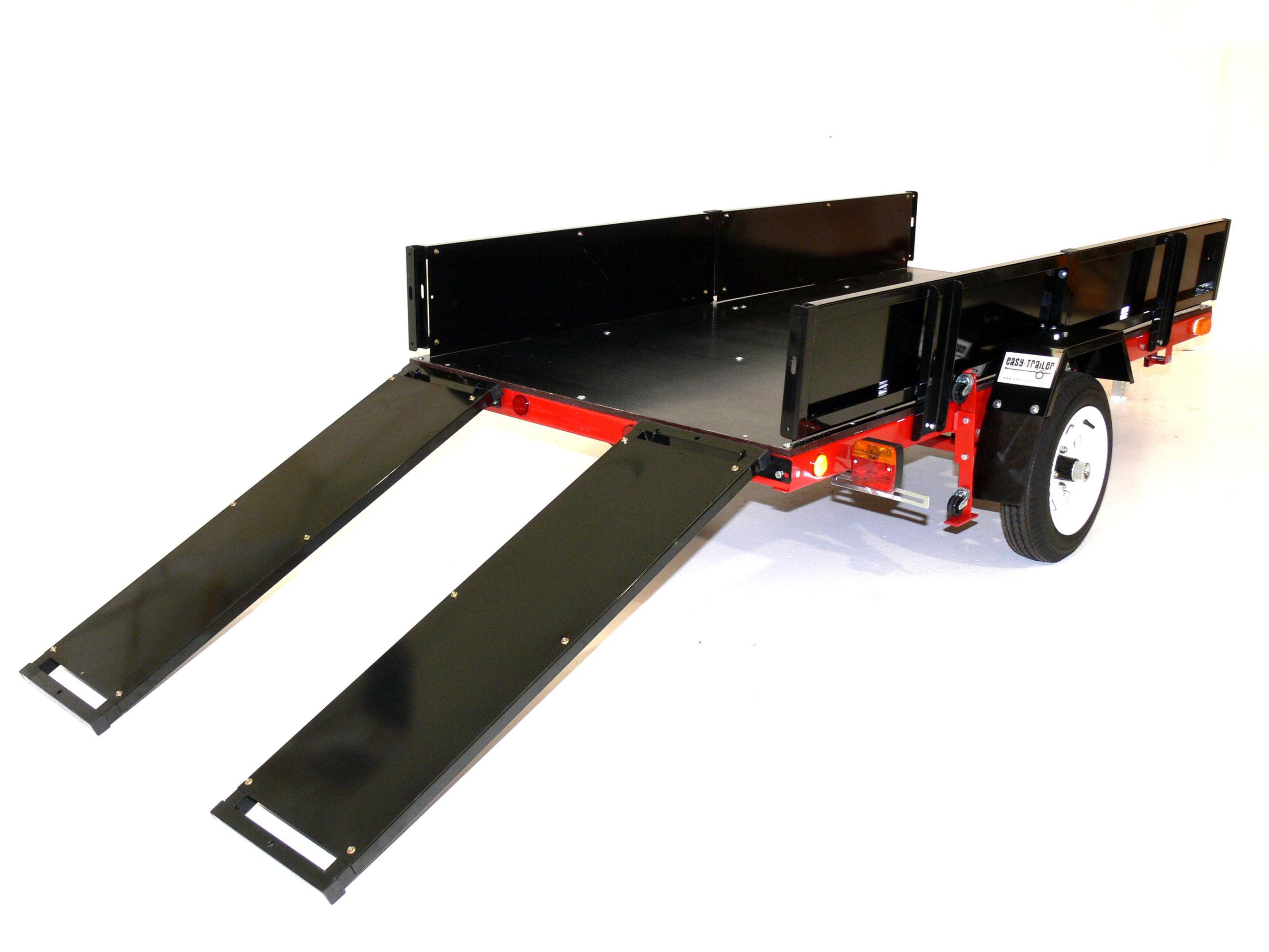

Box Trailer Loading Ramps Set

Trailer Loading Ramps

Front & Rear Gates
Double Up as Ramps.
500kg Rated.
1220mm L x 330mm Wide
Ladder Style & Flat Type Universal Ramps.

Box Trailer With Sides Only for Long Loads

Sides Replaces Stake Clamps

The HD Rail Sides Bolts to the Sides of the Trailer.
Stake Clamps are Included,
but Sides take their Position.

Easytrailer

50mm Coupler

50mm Towball ADR/ECE
Qick Release Coupler.
Easy To Use & Hold Trailer.

EASYTRAILER

Leaf Spring Suspension

3 Leaf Slipper Springs.
Simple, Reliable,
Long Lasting.

Easytrailer

Easy Lube Hubs

Grease your Hubs easily via the Grease Fitting. Greases the Core of the Hub, Both Bearings Greased Quickly.

Easytrailer

HIgh Speed Trailer Wheels

Light Truck Trailer Tyres.
Highway Rated.
Low Drag, Fuel Efficent, and
Long Lasting.

Easytrailer

360 Degree Castor Wheels

Move in any Direction with Little Effort.
Wheels Through a Doorway

6x4 Folding Trailer

Folded Trailer Dimensions

Folds With Floor
Remove Sides to Fold
188cm H x 160cm W 62cm D
Sides Pieces
2 x 2440cm x 39cm
2 x 122cm x 33cm

Easytrailer

Tilt Trailer Feature

Simple Tilting Feature.
Great for 3 & 4 Wheelers.

Tilts with Sides Fitted.

Easytrailer

 Trailer Stake Side Clamps

Are Included - But the 50RR System Takes their Position.
2 Stake Clamps Per Side
90mm x 40mm Timber Pocket
Make Your Own Sides

Trailer Spare Wheel | Easy Trailer

Trailer Spare Wheel WR12

Highspeed R12 Wheel.

OPTIONAL: Holding U Bolt
Mount Below or Above Drawbar

Trailer Stabilizer Leg | Easy Trailer

Trailer Stabilser Stand SS

Multifit Folding Levelling Leg.
Folds Up & Locks into Place
Quick Height Adjustment
Fit to Drawbar / Rear of Trailer

D Ring Tie Rings | Easy Trailer

D Ring Tie Point Packs

500kg Rated Traingle D Rings.
50mm Triangle, Inc Bolts.
Available in 10 or 4 Packs

Motorbike Transport Stand | Easy Trailer

Motorbike Transport Stand MX

The Ultimate Motorcycle Transport Stand. 750kg Rated.
Holds Front Wheel & Stand Your Bike Upright.

Motorbike Front Wheel Chock | Easy Trailer

Motorbike Front Chock 30MF

130mm Wide x 950mm Long
50mm Tall Sides
Suits all Motorcycles up to 120mm Wide Tyres.

Trailer Jockey Wheel | Easy Trailer

Trailer Jockey Wheel CJW

Lightweight Jockey Wheel Adjustable Height 125mm Castor Wheel - Suits all Models (ex. 880)

Trailer Tie Bar Set | Easy Trailer

Trailer Tie Bar Set 46TB

500mm Long Frame Extension
Bars to Extend Tie Straps Outside the Frame

Trailer Cargo Carry Racks | Easy Trailer

Trailer Sports Crossbars 46RK

300kg Rated, 1600mm Wide
30mm Square HD Pipe.
ADD Thule & Yakima Sports Accessories to Carry Bikes, Kayaks and More

Trailer Coupler Key Lock | Easy Trailer

Coupler Handle Key Lock CKEYLOK1

Locks the Operation of the Coupler Handle Completely.
Unique Internal Key Lock.
Cannot Remove wihout KEY.

Trailer Coupler Parking Lock | Easy Trailer


Trailer Coupler Parking Lock CPARKLOK2

Off Car Trailer Parking Lock.
Integral Tow Ball Locking System when Trailer is Parked.

Trailer Security Wheel Clamp | Easy Trailer

Trailer Wheel Clamp WC

HD Wheel Clamp Suits from R12 Up. Key Locking.
Hint: Lock both Wheels with 2 Units.

Ratchet Tie Straps Pack | Easy Trailer

Ratchet Tie Down Straps

4 x 400kg Ratchet Strap Set.
3.6m Length with Hook Ends.

Rope Pulley Lock Toe Downs | Easy Trailer

    Rope Pulley Lock Tie Set

Kayak & Canoe Tie Set.
Soft Cord, Pulley Tie System.
Quick Release.

Trailer Overhang Safety Flag | Easy Trailer

Trailer Overhang Red Flag

Use a RED Flag on OVERHANGING items.

Back of Kayaks, Boats, Lumber,
or anyting that exceeds the
back of the Trailer.

Safety for everyone.

Steel Mesh Loading Ramp | Easy Trailer

Steel Mesh Loading Ramp 17R

400kg Rated HD Ramp.
1700mm Long x 380mm Wide.
Mesh Steel Surface

T Nut TEE Nut Inserts | Easy Trailer

Universal T Nut Set

Ideal to Set a Thread into Plywood Floors to Mount Motorbike Channels, Boxes, and Other items Across the Floor of the Trailer.
10 Pack, includes 40mm Long Bolts & Spring Washers & 4 Pack Available.

Easytrailer Photo Galley

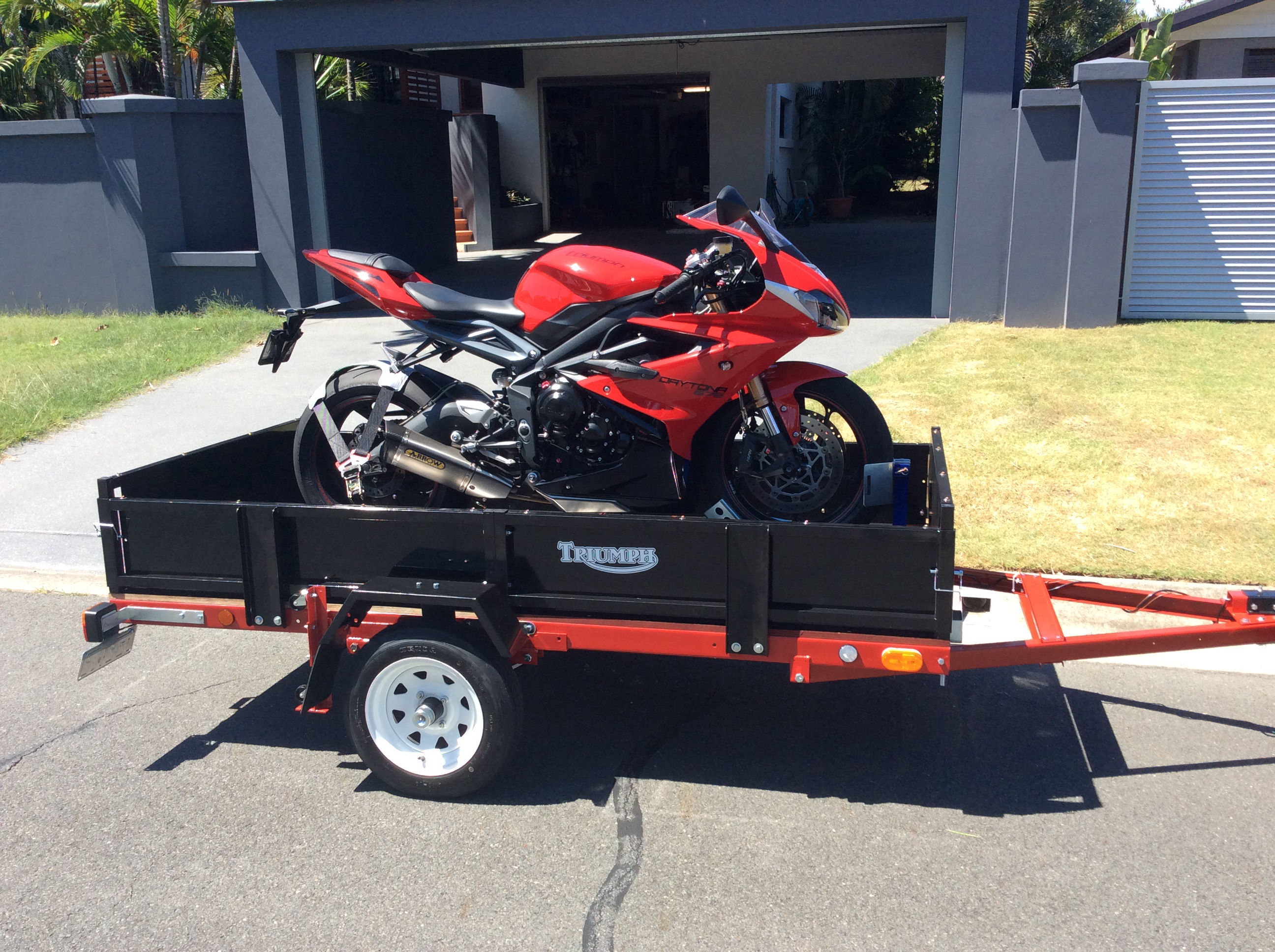

Trailer Applications

Easy Trailer has the ability to change your Trailer to suit hundreds of applications.
Set up one Trailer to carry a multitude of sports and hobbies with our changeable system. Set up as a Flat Top Trailer to Motorbike Trailer to Kayak Trailer and to anything you need to carry with ease.
