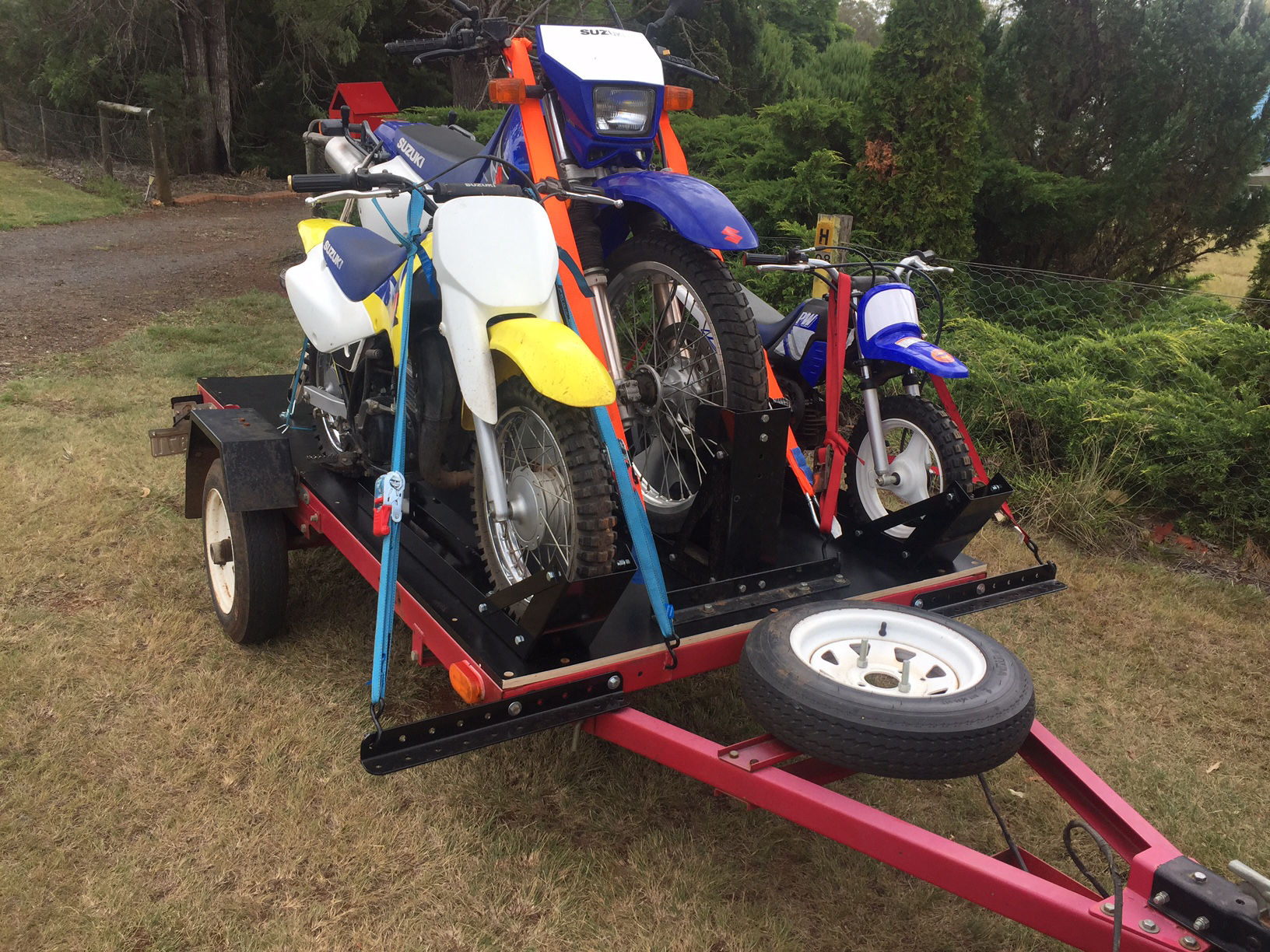

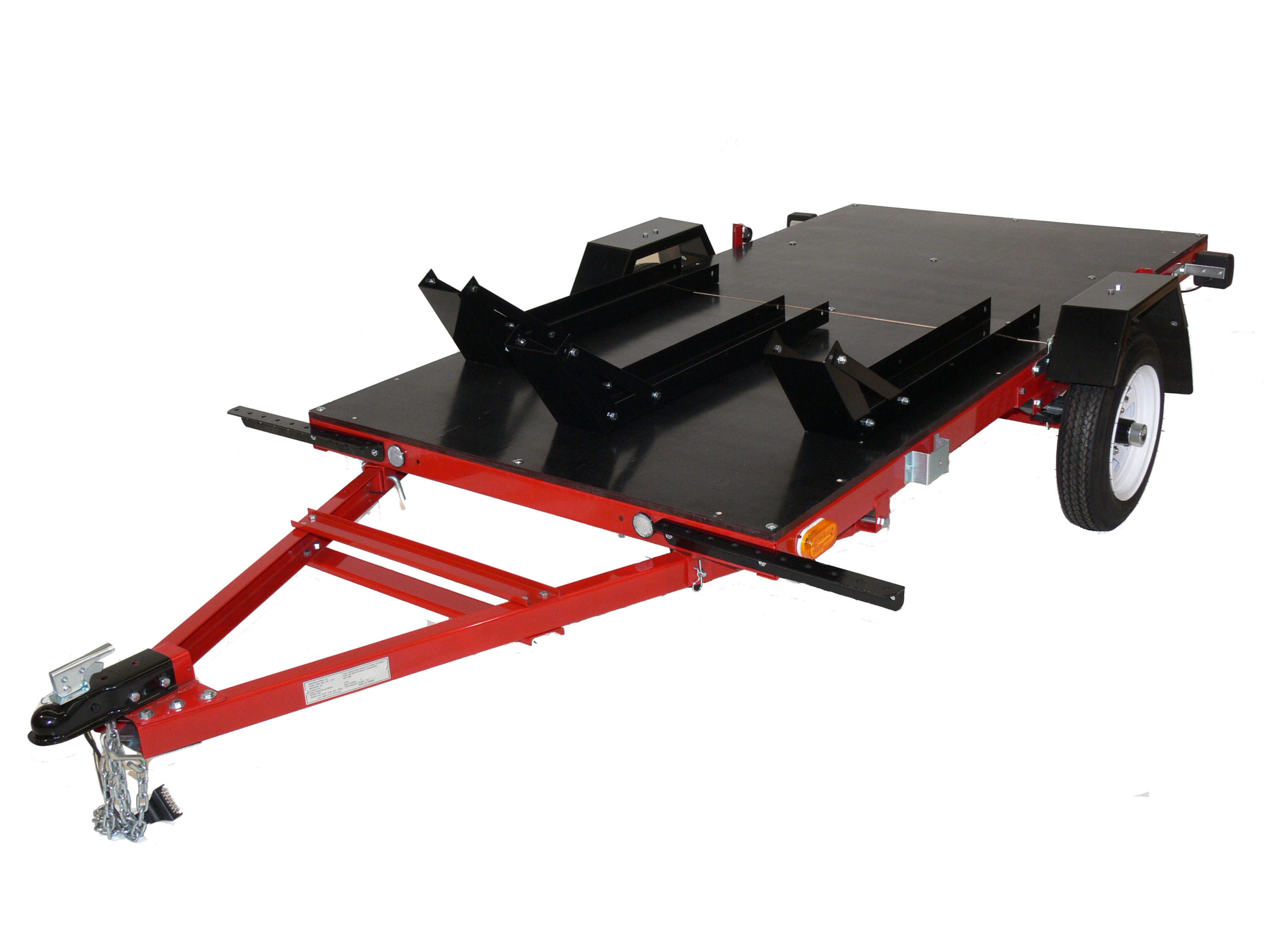

Transport One to Three Motorcycles with this Lightweight Full Sized Foldable Trailer. Use this Trailer as a Flat Top Trailer as well as a Motorcycle Trailer. The Standard Front Wheel Chocks Fits Tyres Up to 130mm Wide and Easily Mounted to the Trailer Floor. Add Extension Tie Bars for Extended Width Tie Points. A Trailer that is Easy to Tow and Can Fold Up as a Flat Top Trailer to Save Space. Total Trailer Weight 155kg to 180kg.
Capacity 707kg ATM,
500+kg Payload
Bed Size 2440mm x 1220mm
(2000 lbs Frame Rating)
Overall Size 3580mm x 1600mm
Tare Weight 110kg + Accessories
Compliance ADR / ECE
Finish High Gloss Powder Coat Black
Springs HT Slipper Leaf (990kg)
Wheels 12” White Spoke (5mm)
Tyres 20” 60PSI,
4PLY High Speed (711kg)
Hubs/Axle 4 Stud, Cast Iron,
Easy Lube (990kg)
Bearings 2” Fully Tapered (1600kg)
Bed Height 500mm
Coupler 50mm (750kg)
Coupler Height 480mm
Frame “C” Section 3”x2” (2.5mm+)
Drawbar 1085mm 1.5”x2.25” (2.7mm+
Towball Weight 10% of GTM
Fender Height 100mm
Lights ADR Standard Combination Type Wiring 7-Pin Flat
Trailer can be Set as a Folding
or Rigid Trailer Modes.
130mm Wide
950mm Long
50mm High Edges
Bolts to Floor of Trailer
Simple Effective Wheel Chock
For 2 & 3 Bike Combos...
500mm Long HD Extension
Tie Bar Set.
Allows to Triangulate your Straps Outside Trailer Frame.
Look at our 1700mm Long Steel Mesh Ramp to Load your Bikes.
46MX HD Motorbike Transport Stand Upgrade.
The Ultimate Sports Bike Wheel CHock System.
50mm Towball ADR/ECE
Qick Release Coupler.
Easy To Use & Hold Trailer.
3 Leaf Slipper Springs.
Simple, Reliable,
Long Lasting.
Grease your Hubs easily via the Grease Fitting. Greases the Core of the Hub, Both Bearings Greased Quickly.
Light Truck Trailer Tyres.
Highway Rated.
Low Drag, Fuel Efficent, and
Long Lasting.
Move in any Direction with Little Effort.
Wheels Through a Doorway
Folds With Floor
Remove Sides to Fold
188cm H x 160cm W 62cm D
Sides Pieces
Simple Tilting Feature.
Great for 3 & 4 Wheelers.
Tilts with Sides Fitted.
2 Stake Clamps Per Side
90mm x 40mm Timber Pocket
Make Your Own Sides
Highspeed R12 Wheel.
OPTIONAL: Holding U Bolt
Mount Below or Above Drawbar
Multifit Folding Levelling Leg.
Folds Up & Locks into Place
Quick Height Adjustment
Fit to Drawbar / Rear of Trailer
500kg Rated Traingle D Rings.
50mm Triangle, Inc Bolts.
Available in 10 or 4 Packs

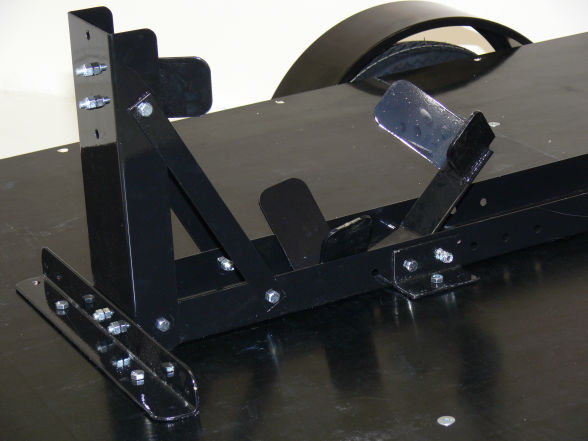

The Ultimate Motorcycle Transport Stand. 750kg Rated.
Holds Front Wheel & Stand Your Bike Upright.
130mm Wide x 950mm Long
50mm Tall Sides
Suits all Motorcycles up to 120mm Wide Tyres.
Lightweight Jockey Wheel Adjustable Height 125mm Castor Wheel - Suits all Models (ex. 880)
500mm Long Frame Extension
Bars to Extend Tie Straps Outside the Frame
300kg Rated, 1600mm Wide
30mm Square HD Pipe.
ADD Thule & Yakima Sports Accessories to Carry Bikes, Kayaks and More
Locks the Operation of the Coupler Handle Completely.
Unique Internal Key Lock.
Cannot Remove wihout KEY.
Off Car Trailer Parking Lock.
Integral Tow Ball Locking System when Trailer is Parked.
HD Wheel Clamp Suits from R12 Up. Key Locking.
Hint: Lock both Wheels with 2 Units.
4 x 400kg Ratchet Strap Set.
3.6m Length with Hook Ends.
Rope Pulley Lock Tie Set
Kayak & Canoe Tie Set.
Soft Cord, Pulley Tie System.
Quick Release.
Use a RED Flag on OVERHANGING items.
Back of Kayaks, Boats, Lumber,
or anyting that exceeds the
back of the Trailer.
Safety for everyone.
400kg Rated HD Ramp.
1700mm Long x 380mm Wide.
Mesh Steel Surface
Ideal to Set a Thread into Plywood Floors to Mount Motorbike Channels, Boxes, and Other items Across the Floor of the Trailer.
10 Pack, includes 40mm Long Bolts & Spring Washers & 4 Pack Available.
Easy Trailer has the ability to change your Trailer to suit hundreds of applications.
Set up one Trailer to carry a multitude of sports and hobbies with our changeable system. Set up as a Flat Top Trailer to Motorbike Trailer to Kayak Trailer and to anything you need to carry with ease.
