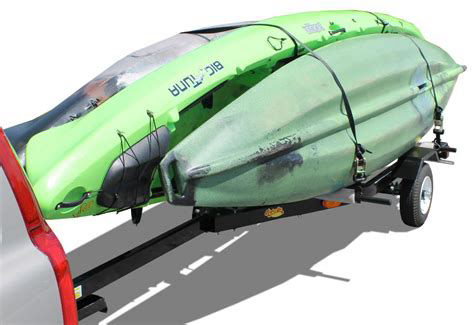

13 X 3 MULTISPORT
CROSSBAR TRAILER

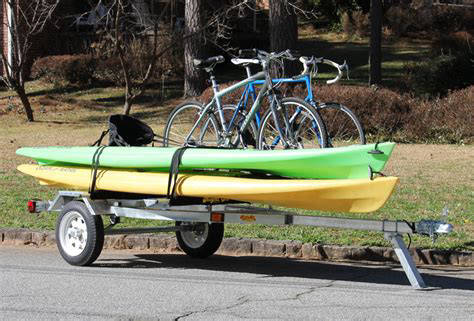

2.0m to 5.5m Kayaks - 1 to 6 Bicycles

Lightweight Trailer for Light Marine Craft.
1 to 4 Kayak - 1 to 6 Bike Combinations

Capacity 505kg ATM
400kg Payload
Bed Size 3900mm x 1016mm
Overall Size 4100mm x 1360mm
Tare Weight 88kg
Compliance ADR / ECE
Finish Hot Dipped Galvanised
Springs HT Slipper Leaf (660kg)
Wheels 12” White Spoke, 5mm

Tyres 20” 60PSI,
4PLY High Speed (711kg)
Hubs/Axle 4 Stud, Cast Iron,
Easy Lube (990kg)
Bearings 2” Fully Tapered (1600kg)
Bed Height 475mm
Coupler 50mm (750kg)
Coupler Height 470mm

Drawbar 2”x2” RHS One Piece (2.7mm+)
Frame 2”x2” RHS (2.5mm+)
Towball Weight 10% of GTM
Fender Height 100mm
Lights ADR Standard Combination Type Wiring 7-Pin Flat Loom

Easytrailer

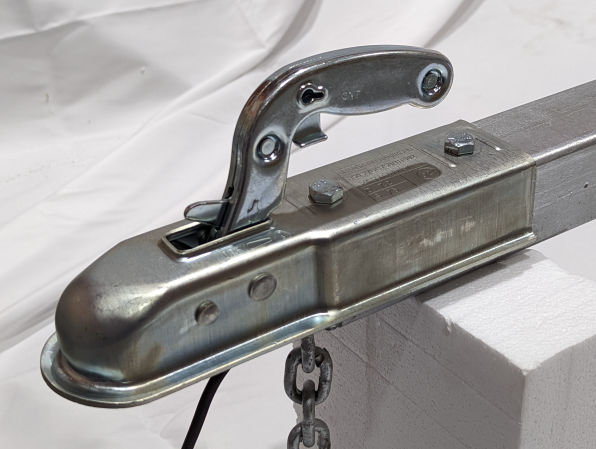

50mm Coupler

50mm Towball ADR/ECE
Qick Release Coupler.
Easy To Use & Hold Trailer.

EASYTRAILER

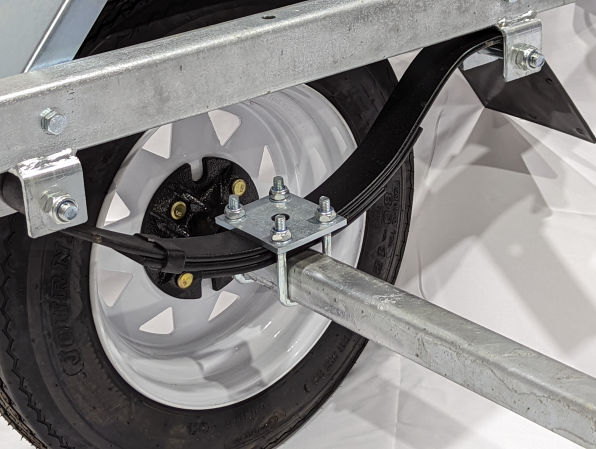

Leaf Spring Suspension

3 Leaf Slipper Springs.
Simple, Reliable,
Long Lasting.

Easytrailer

Easy Lube Hubs

Grease your Hubs easily via the Grease Fitting. Greases the Core of the Hub, Both Bearings Greased Quickly.

Easytrailer

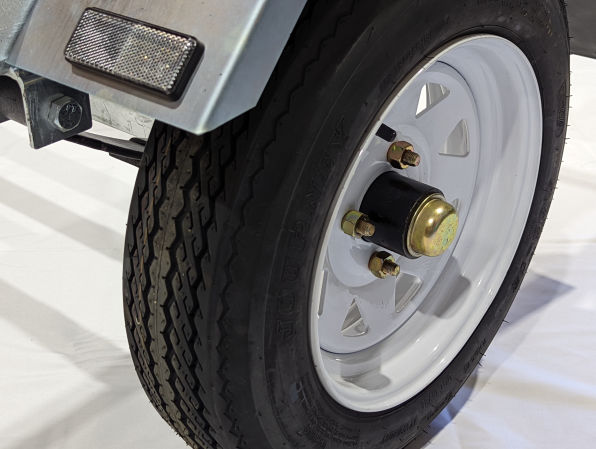

HIgh Speed Trailer Wheels

Light Truck Trailer Tyres.
Highway Rated.
Low Drag, Fuel Efficent, and
Long Lasting.

WR12 Wheel & Tyre

Highspeed R12 Wheel.

OPTIONAL: Holding U Bolt
Mount Below or Above Drawbar

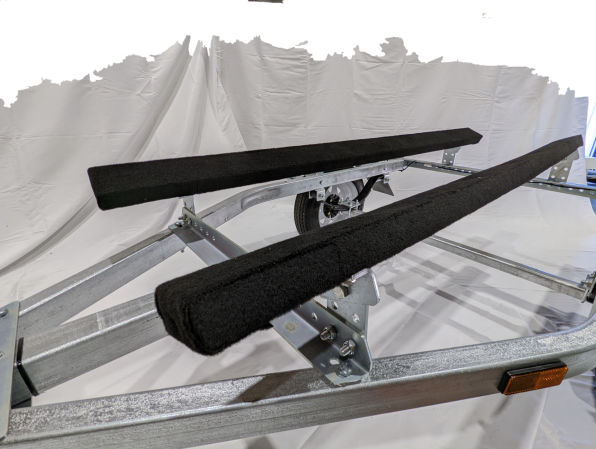

Long Carpet Skids

Wide Flat with Tapered Edge
Adustable width & Angle to suit a wide range of Marine Craft.

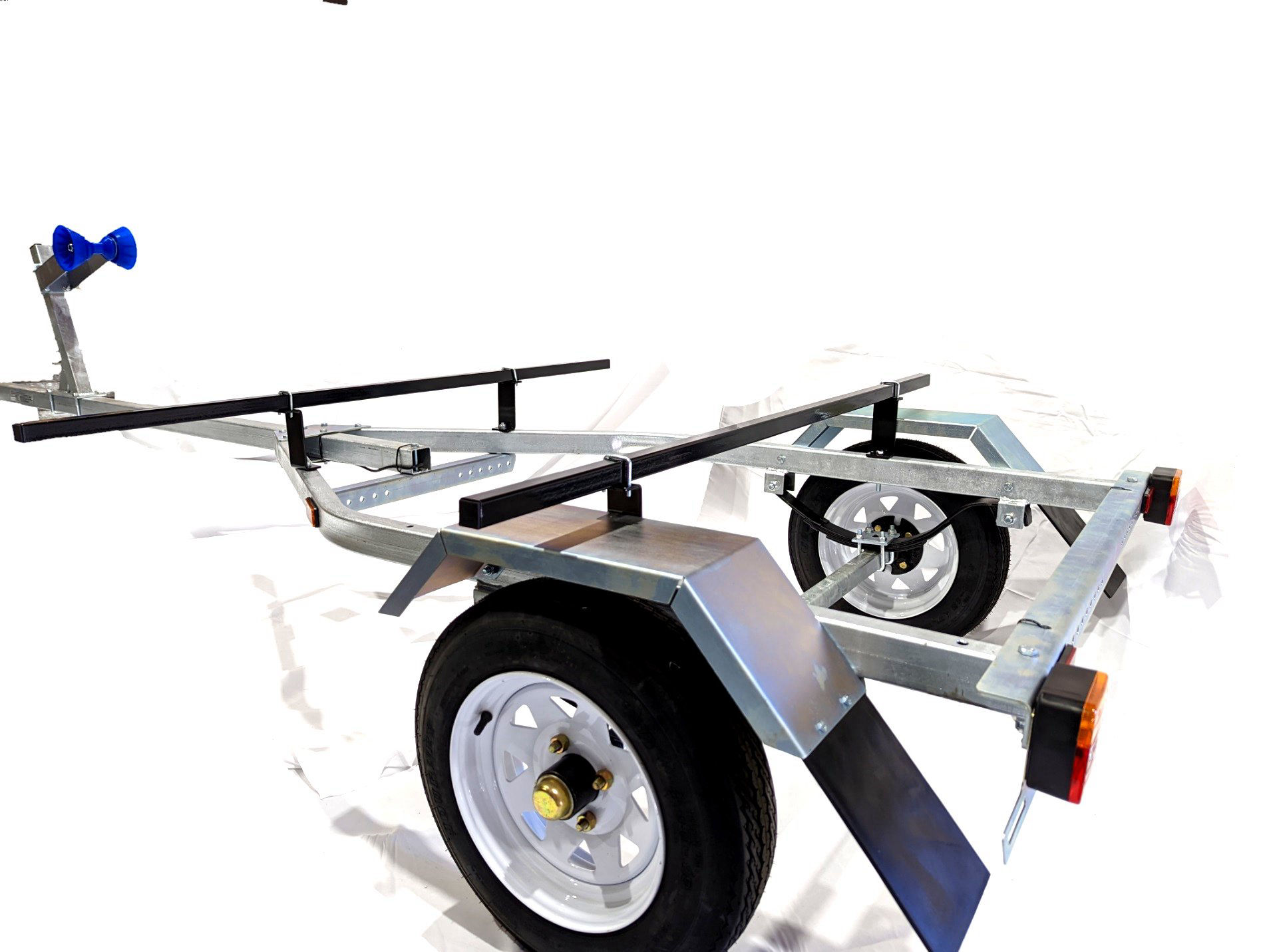

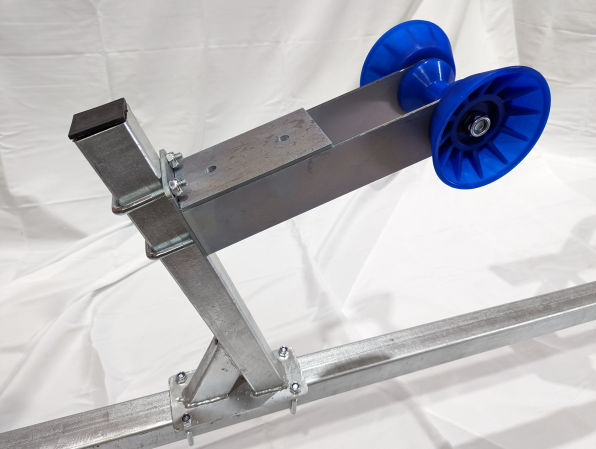

Adjustable Bow Stop

Bow Stop & Bow Roller is Adjustable in Height & Along the Drawbar to Suit your Craft Length. Compatible with Small Winch Packs.

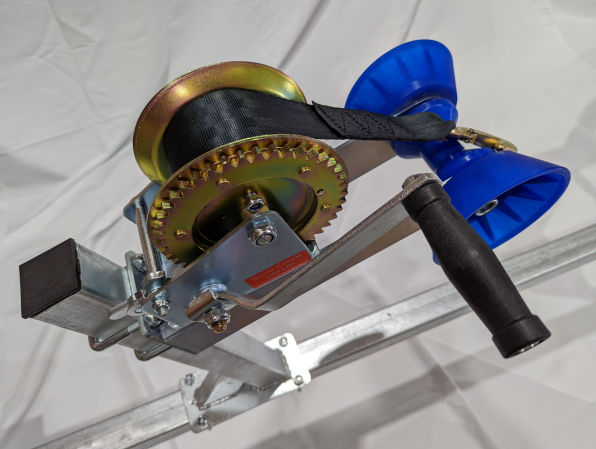

HD Winch & Strap

Optional Winch Pack, 500+kg Capacity with Soft Braided Strap.

68AC Castor Stand

Fold Up Leveling Castor Stand.
4" Castor Wheel.
Folds Up in Transit.

JW Jockey Wheel

Dual Wheel, 6" Castors.
Folding Design.
Note:
ADDs 8kg to Drawbar Weight

46TB Tie Bar Set

500mm Long Frame Extension
Bars to Extend Tie Straps Outside the Frame

*Requires Drilling 13X3 Frame*

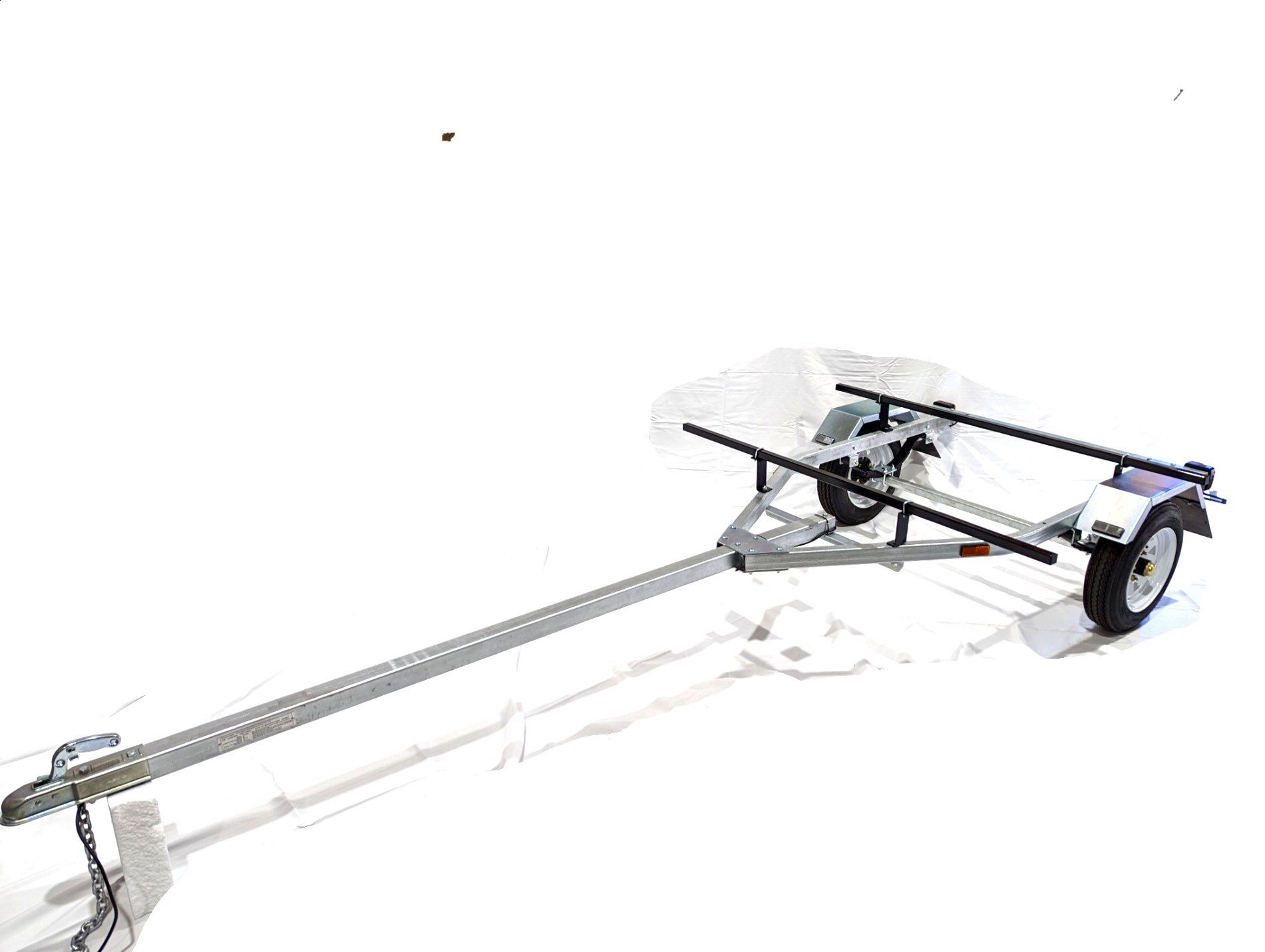

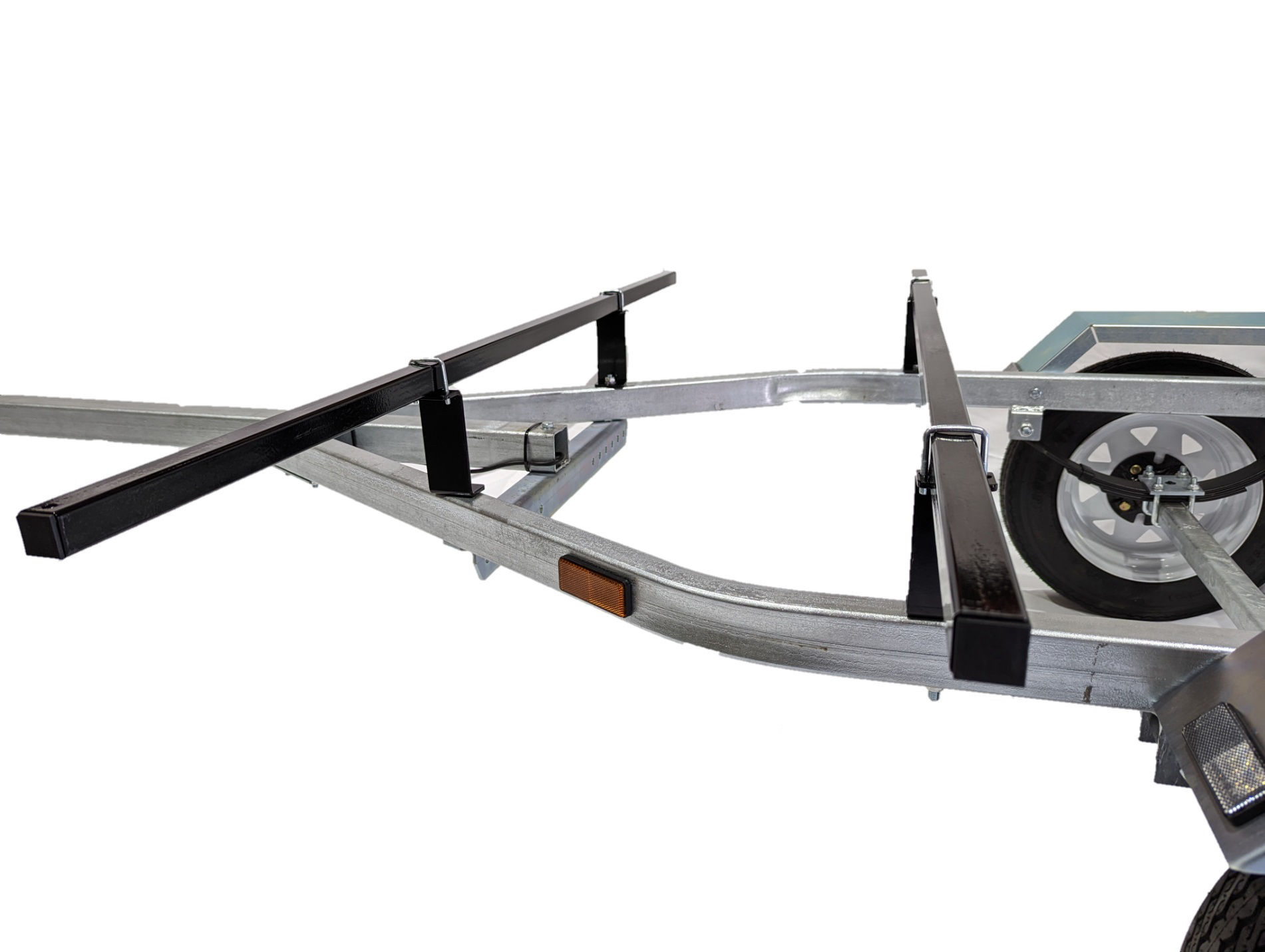

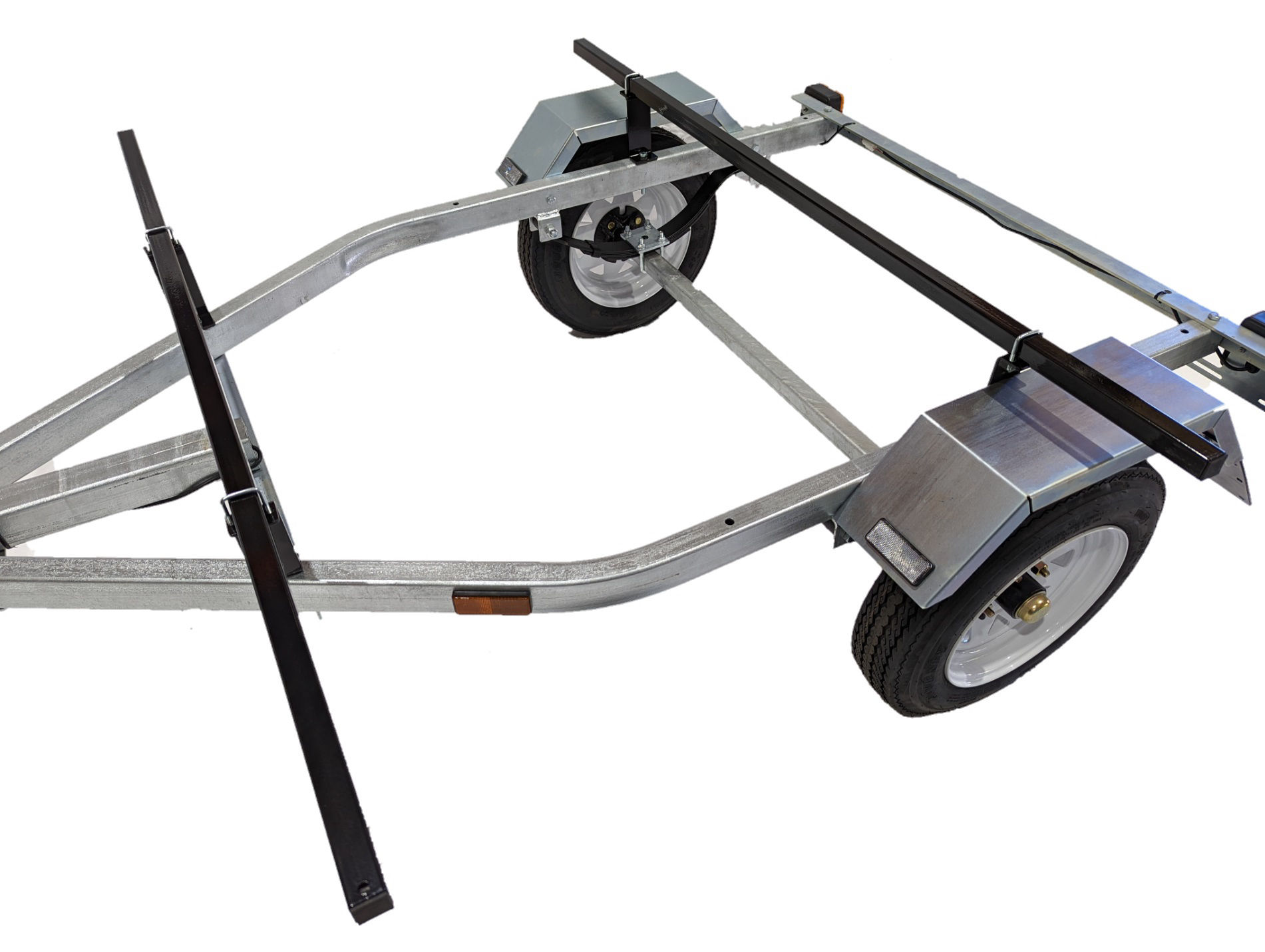

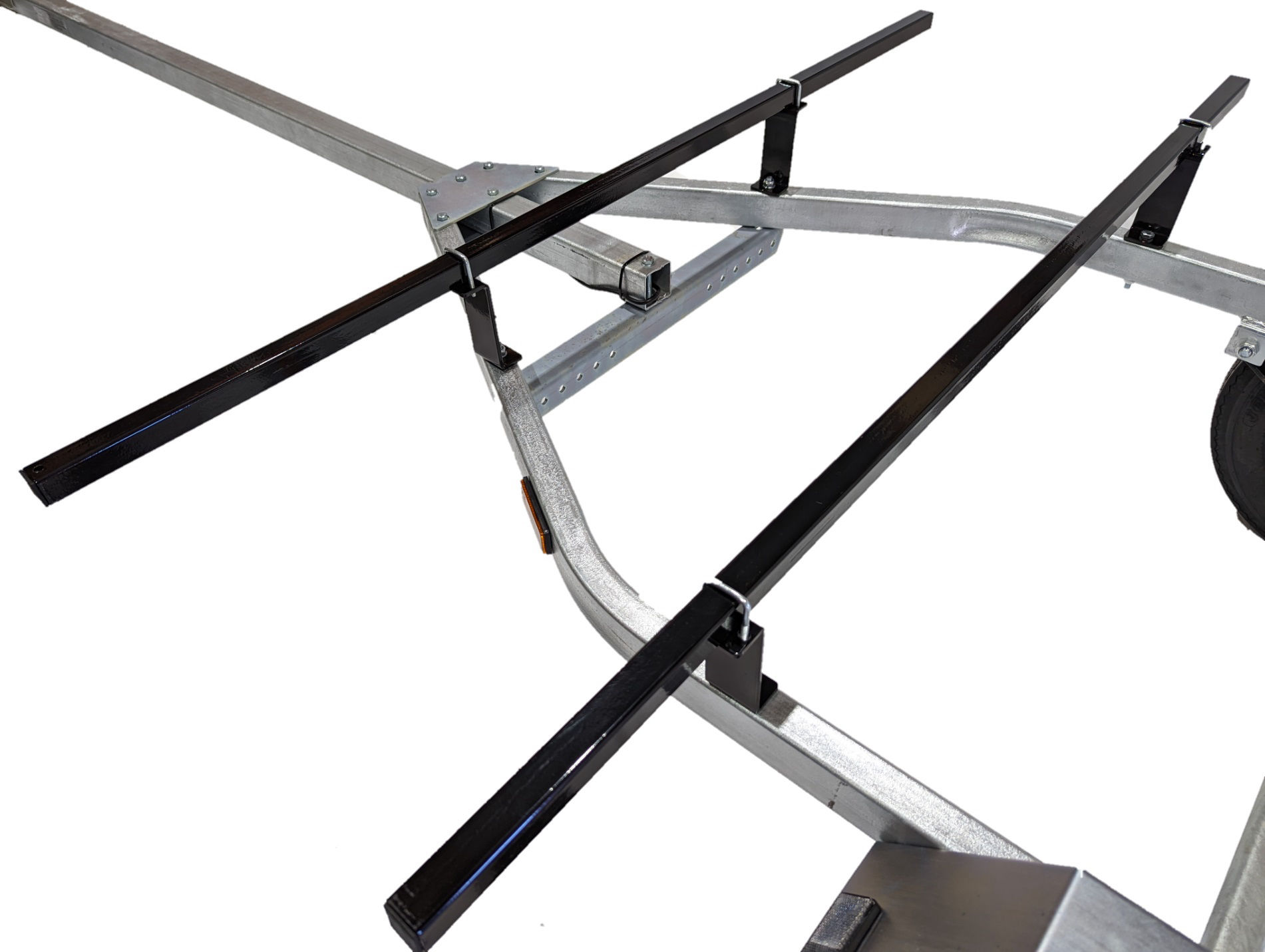

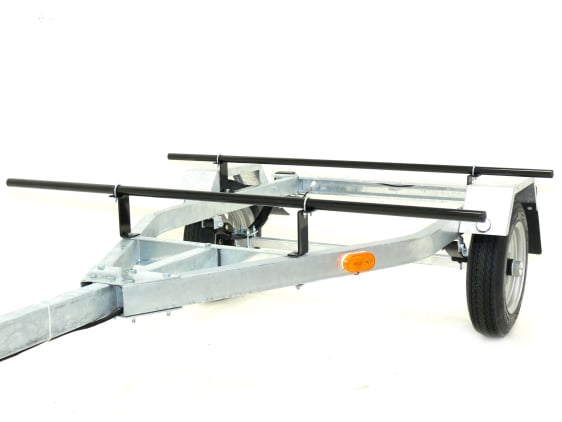

46RK HD Sports Crossbars

300kg Rated, 1600mm Wide
30mm Square HD Pipe.
ADD Thule & Yakima Sports Accessories to Carry Bikes, Kayaks and More

        PT2 Pulley Lock Tie Set

Kayak & Canoe Tie Set.
Soft Cord, Pulley Tie System.
Quick Release.

RF Red Flag

Use a RED Flag on OVERHANGING items.

Back of Kayaks, Boats, Lumber,
or anyting that exceeds the
back of the Trailer.

Safety for everyone.

17R HD Steel Ramp

400kg Rated HD Ramp.
1700mm Long x 380mm Wide.
Mesh Steel Surface

* Ideal for Sand Carts or Watercraft Trolleys *

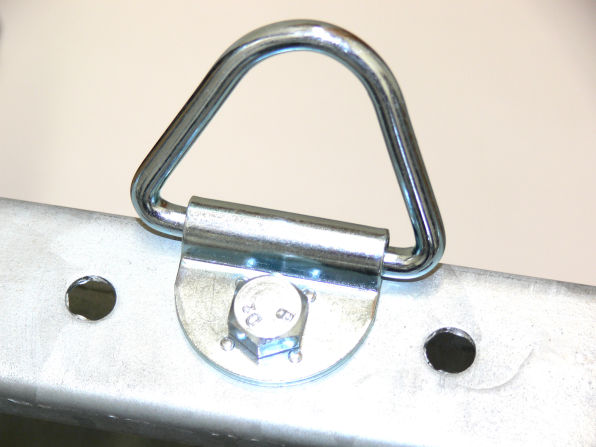

TR-01 D Ring Tie Points

500kg Rated Traingle D Rings.
50mm Triangle, Inc Bolts.
Available in 10 or 4 Packs

MORE PHOTOS

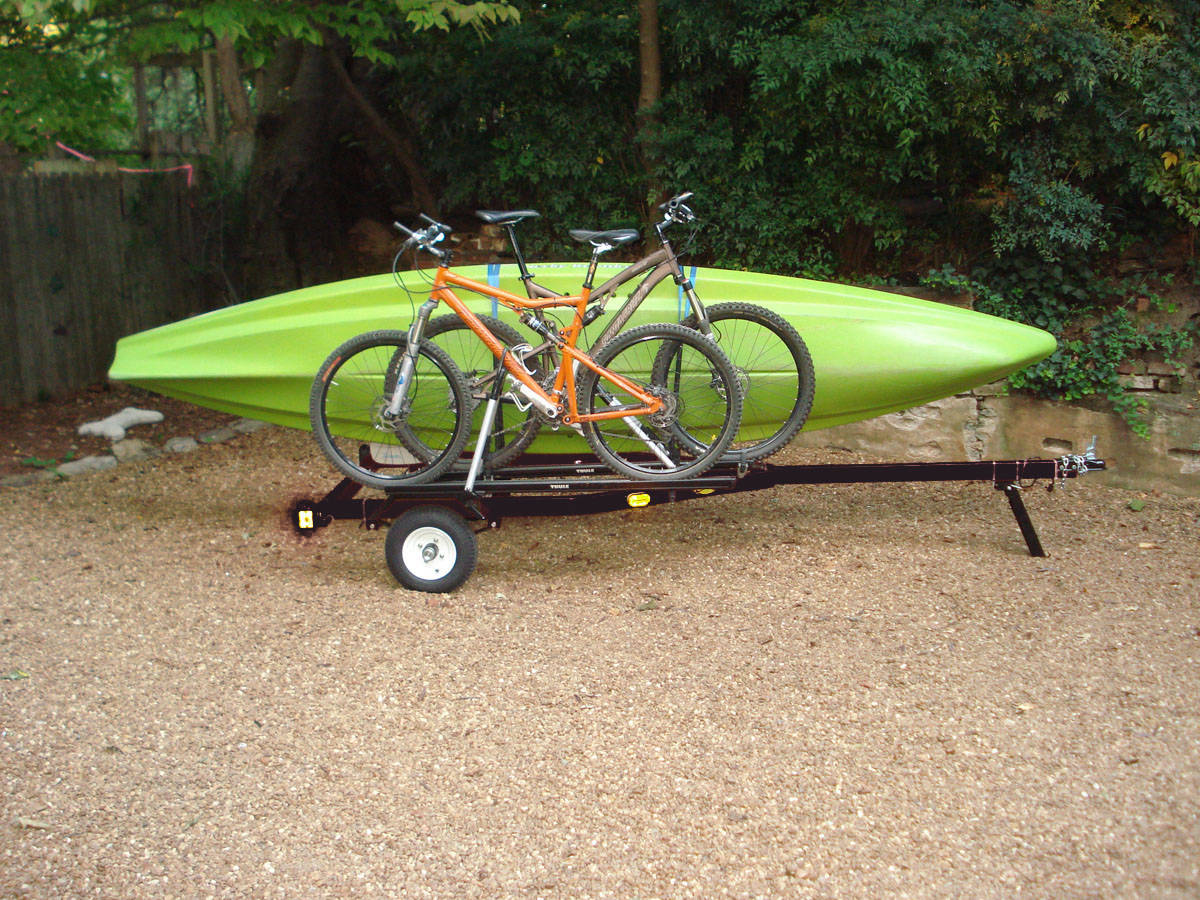

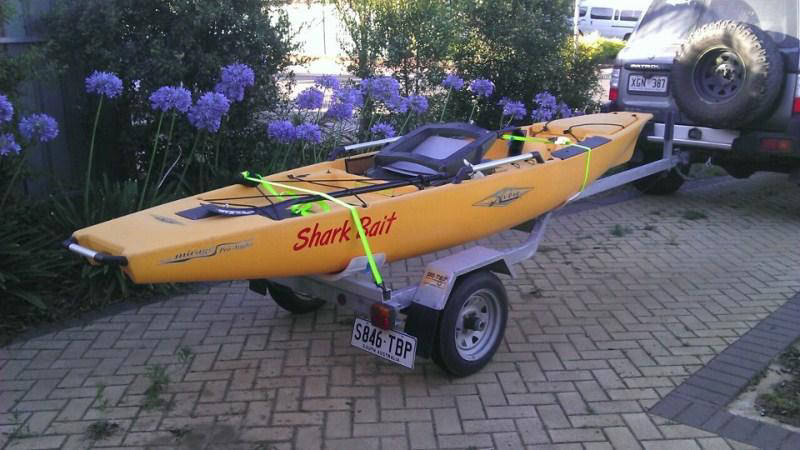

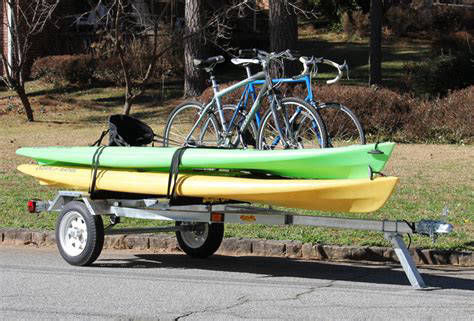

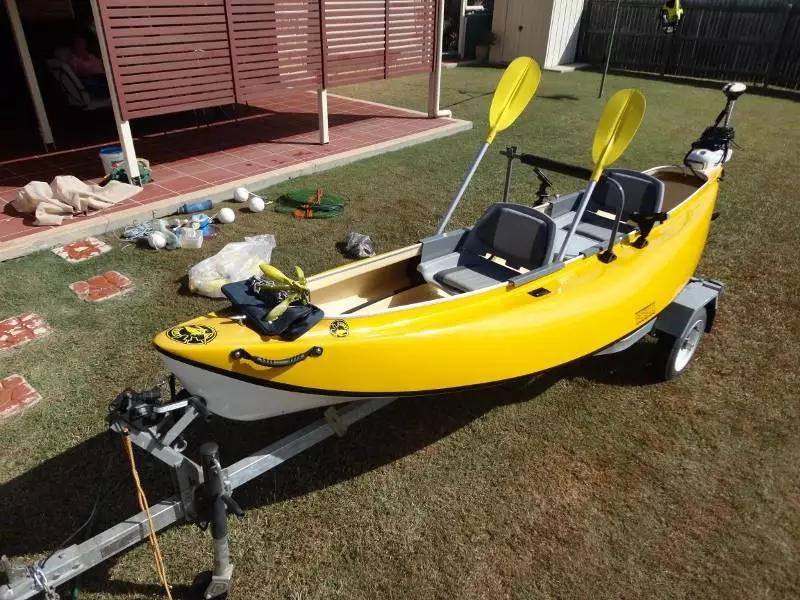

13X3 CUSTOMER PHOTOS
