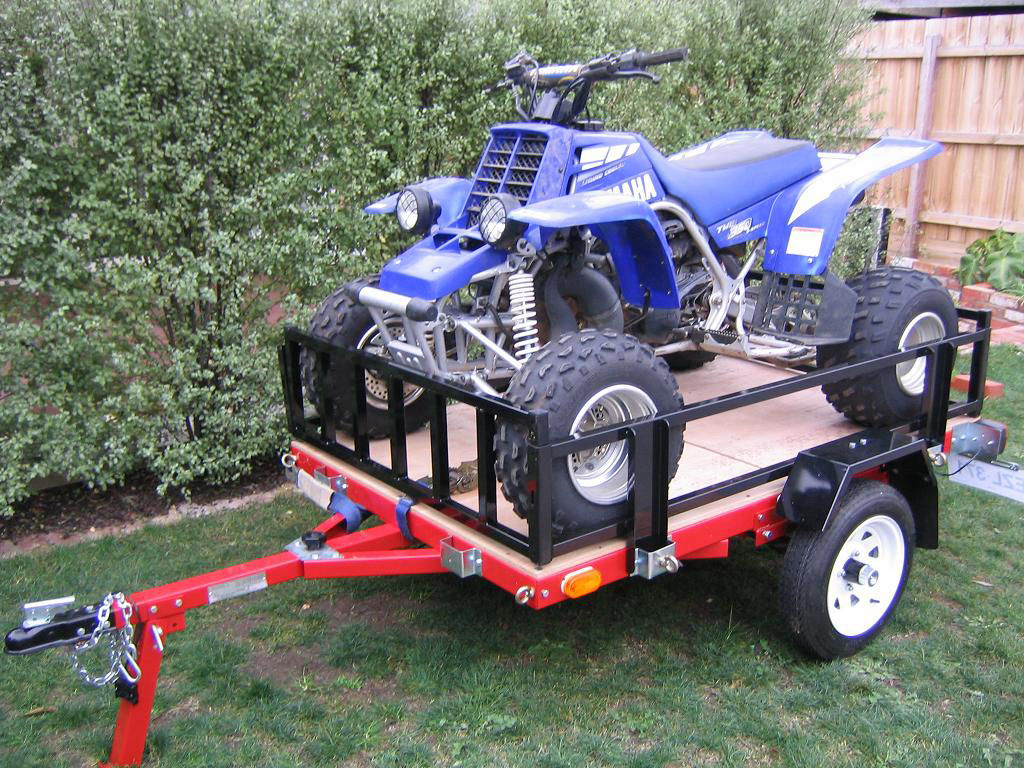

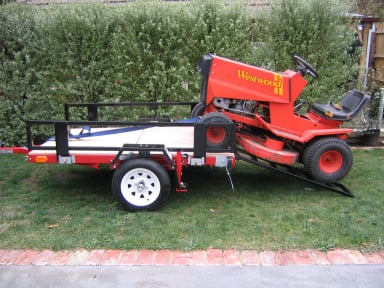

Ideal to Carry Quad Bikes Ride On Mowers and More this Lightweight 6x4 Size Folding Trailer with Bolt on and Off Rail Sides. Steel Trailer Sides are 330mm Tall and the Front and Rear Gates Double Up as Loading Ramps. Loading Ramps are 1220mm Long. Sides Comprise of 46RR Open Rail Side. The Sides Can be Removed Easily into Four Pieces for Storage and the Trailer Becomes a Flat Top Trailer That Can Fold Up to Save Space. Easy to Tow.
Total Trailer Weight 159kg
Capacity 707kg ATM,
500+kg Payload
Bed Size 1830mm x 1220mm
(2000 lbs Frame Rating)
Overall Size 2845mm x 1600mm
Tare Weight 105kg + Accessories
Compliance ADR / ECE
Finish High Gloss Powder Coat Black
Springs HT Slipper Leaf (990kg)
Wheels 12” White Spoke (5mm)
Tyres 20” 60PSI,
4PLY High Speed (711kg)
Hubs/Axle 4 Stud, Cast Iron,
Easy Lube (990kg)
Bearings 2” Fully Tapered (1600kg)
Bed Height 500mm
Coupler 50mm (750kg)
Coupler Height 420mm
Frame “C” Section 3”x2” (2.5mm+)
Drawbar 1015mm 2.5”x2.5” (2.5mm+)
Towball Weight 10% of GTM
Fender Height 100mm
Lights ADR Standard Combination Type Wiring 7-Pin Flat

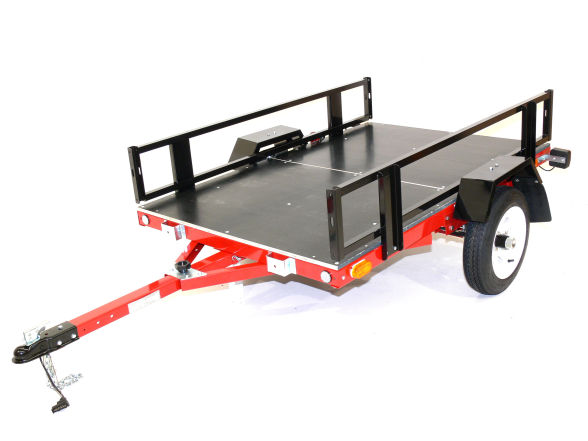

Trailer can be Set as a Folding
or Rigid Trailer Modes.

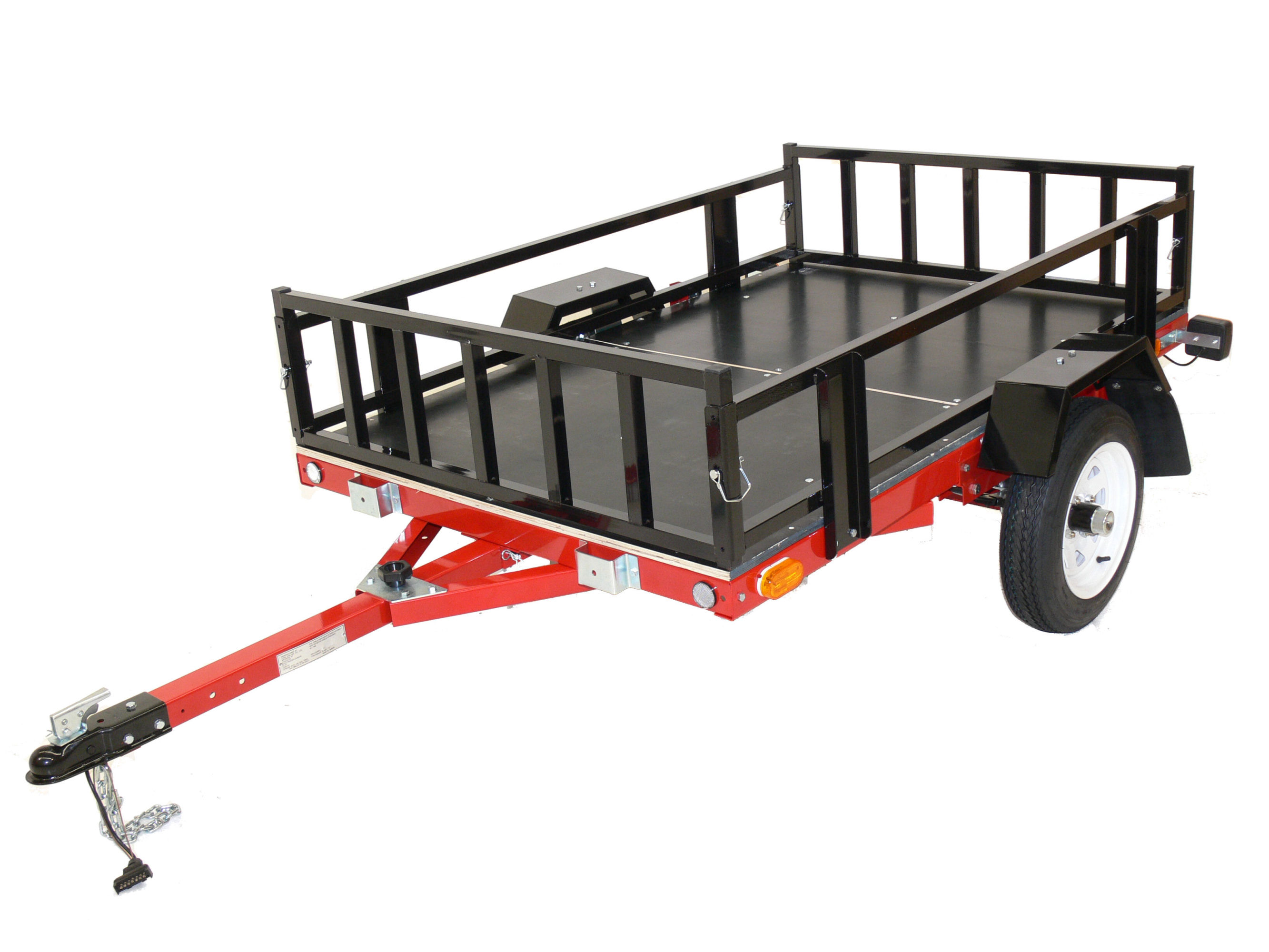

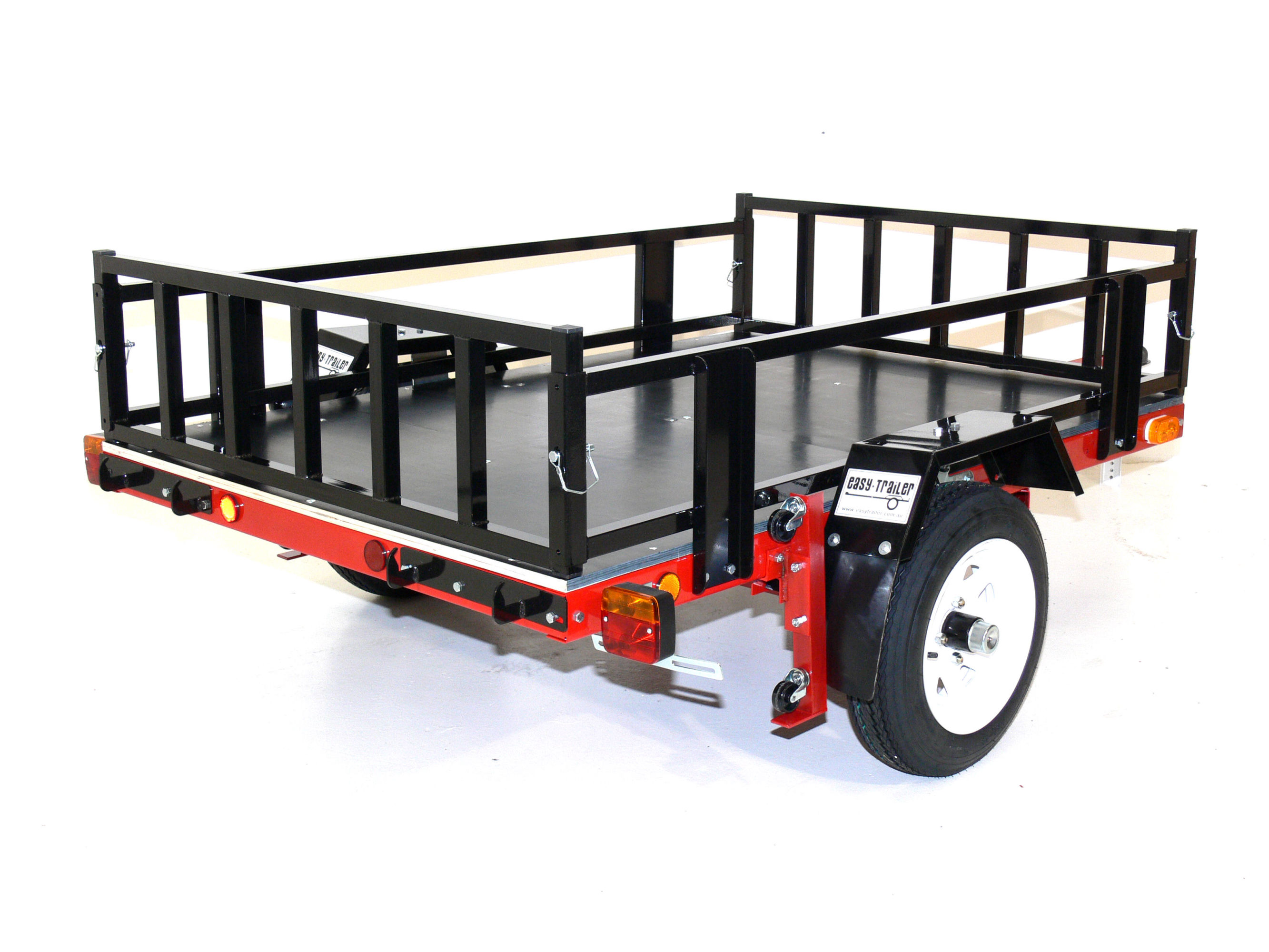

4 Panel Design
Bolted to Sides of Trailer
330mm High
1770mm x 1160mm Inside Box

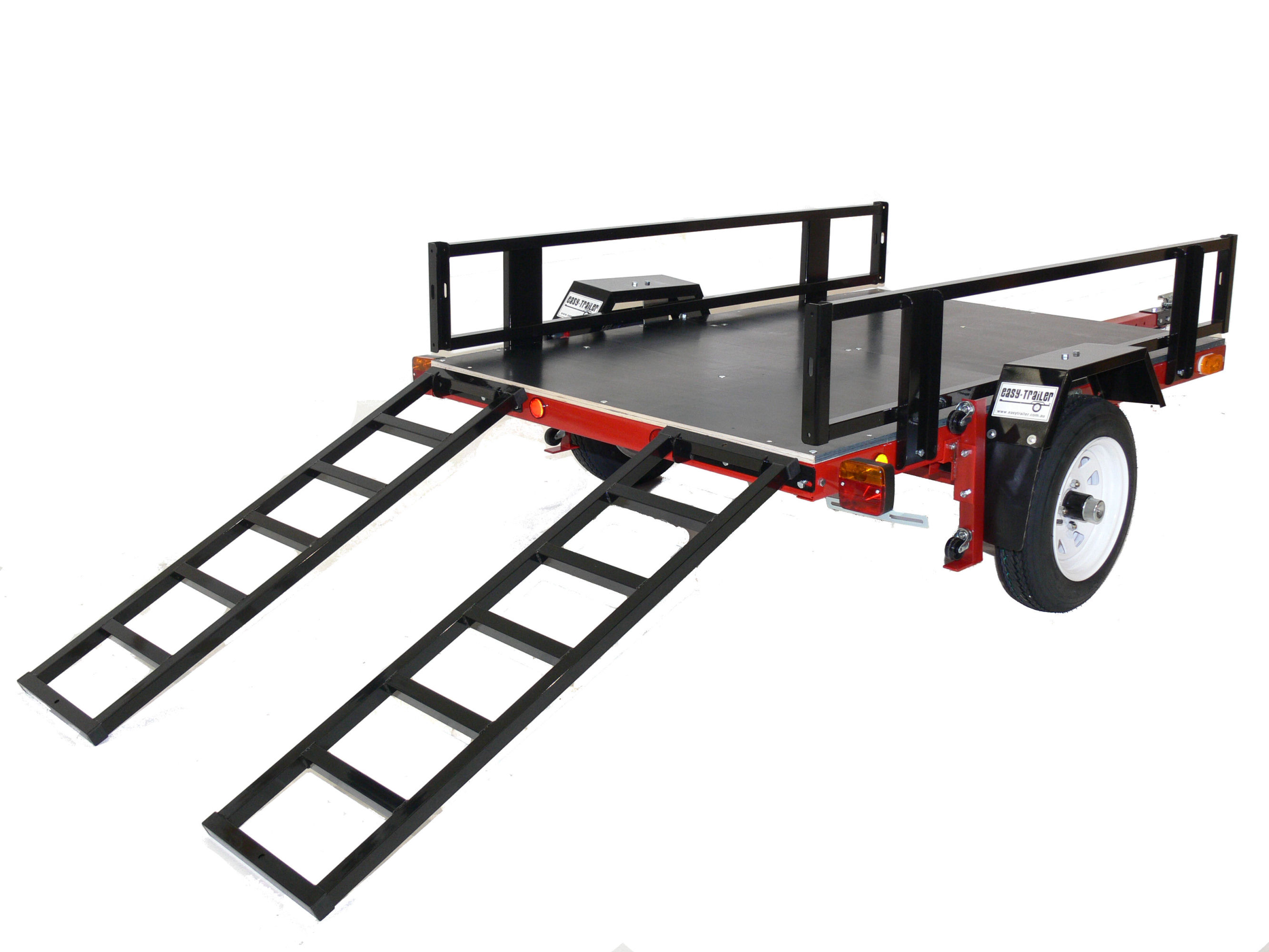

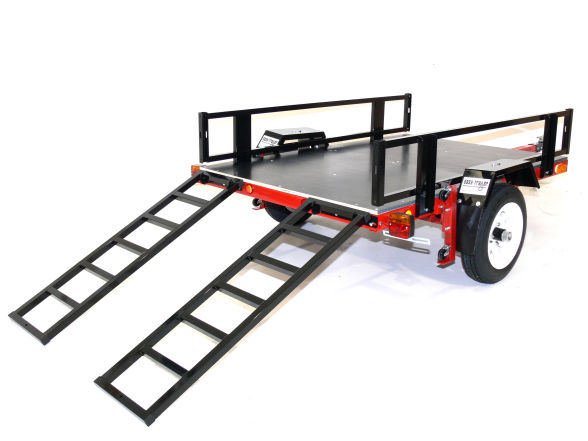

Quick Pin Lift Off Ramp Set
Includes 2 x Ramp Hooks
Special Design Hooks
That Engage the Ramp.
Never Un Hooks During Loading.
Unique to Easy Trailer
Front & Rear Gates
Double Up as Ramps.
500kg Rated.
1220mm L x 330mm Wide
Ladder Style Ramp.
The HD Rail Sides Bolts to the Sides of the Trailer.
Stake Clamps are Included,
but Sides take their Position.
Move in any Direction with Little Effort.
Wheels Through a Doorway
Folds With Floor
Remove Sides to Fold
172cm H x 160cm W 62cm D
Sides Pieces
2 x 183cm x 39cm
2 x 122cm x 33cm

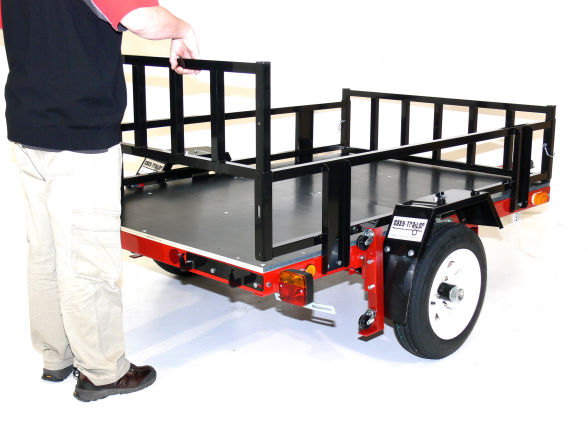

Simple Tilting Feature.
Great for 3 & 4 Wheelers.
Tilts with Sides Fitted.
Are Included - But the 46RR System Takes their Position.
2 Stake Clamps Per Side
90mm x 40mm Timber Pocket
Make Your Own Sides
50mm Towball ADR/ECE
Qick Release Coupler.
Easy To Use & Hold Trailer.
3 Leaf Slipper Springs.
Simple, Reliable,
Long Lasting.
Grease your Hubs easily via the Grease Fitting. Greases the Core of the Hub, Both Bearings Greased Quickly.
Light Truck Trailer Tyres.
Highway Rated.
Low Drag, Fuel Efficent, and
Long Lasting.
Highspeed R12 Wheel.
OPTIONAL: Holding U Bolt
Mount Below or Above Drawbar
Multifit Folding Levelling Leg.
Folds Up & Locks into Place
Quick Height Adjustment
Fit to Drawbar / Rear of Trailer
500kg Rated Traingle D Rings.
50mm Triangle, Inc Bolts.
Available in 10 or 4 Packs
The Ultimate Motorcycle Transport Stand. 750kg Rated.
Holds Front Wheel & Stand Your Bike Upright.
130mm Wide x 950mm Long
50mm Tall Sides
Suits all Motorcycles up to 120mm Wide Tyres.
Lightweight Jockey Wheel Adjustable Height 125mm Castor Wheel - Suits all Models (ex. 880)
500mm Long Frame Extension
Bars to Extend Tie Straps Outside the Frame
300kg Rated, 1600mm Wide
30mm Square HD Pipe.
ADD Thule & Yakima Sports Accessories to Carry Bikes, Kayaks and More
Locks the Operation of the Coupler Handle Completely.
Unique Internal Key Lock.
Cannot Remove wihout KEY.
Off Car Trailer Parking Lock.
Integral Tow Ball Locking System when Trailer is Parked.
HD Wheel Clamp Suits from R12 Up. Key Locking.
Hint: Lock both Wheels with 2 Units.
4 x 400kg Ratchet Strap Set.
3.6m Length with Hook Ends.
Rope Pulley Lock Tie Set
Kayak & Canoe Tie Set.
Soft Cord, Pulley Tie System.
Quick Release.
Use a RED Flag on OVERHANGING items.
Back of Kayaks, Boats, Lumber,
or anyting that exceeds the
back of the Trailer.
Safety for everyone.
400kg Rated HD Ramp.
1700mm Long x 380mm Wide.
Mesh Steel Surface
Ideal to Set a Thread into Plywood Floors to Mount Motorbike Channels, Boxes, and Other items Across the Floor of the Trailer.
10 Pack, includes 40mm Long Bolts & Spring Washers & 4 Pack Available.
Easy Trailer has the ability to change your Trailer to suit hundreds of applications.
Set up one Trailer to carry a multitude of sports and hobbies with our changeable system. Set up as a Flat Top Trailer to Motorbike Trailer to Kayak Trailer and to anything you need to carry with ease.
