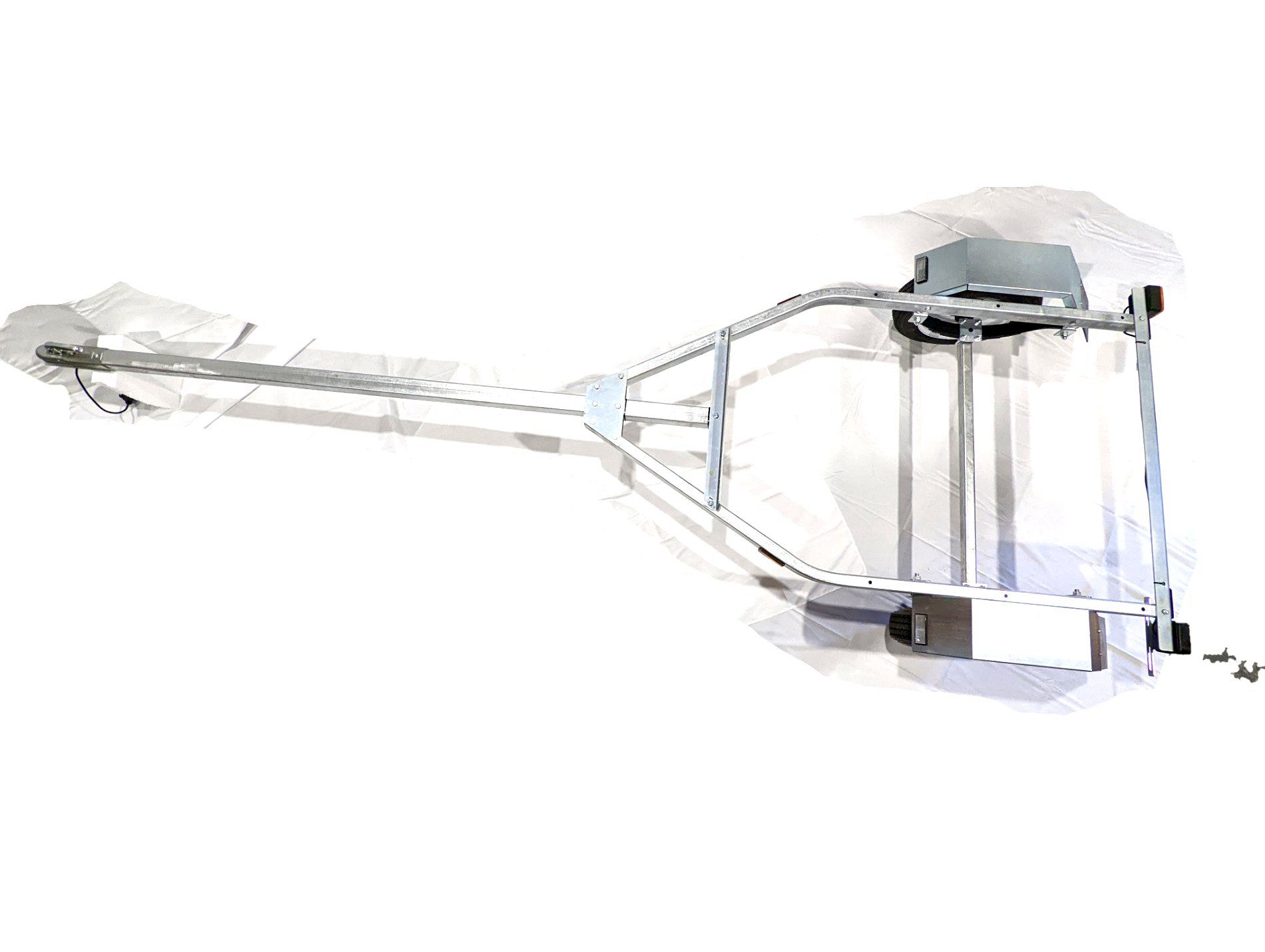

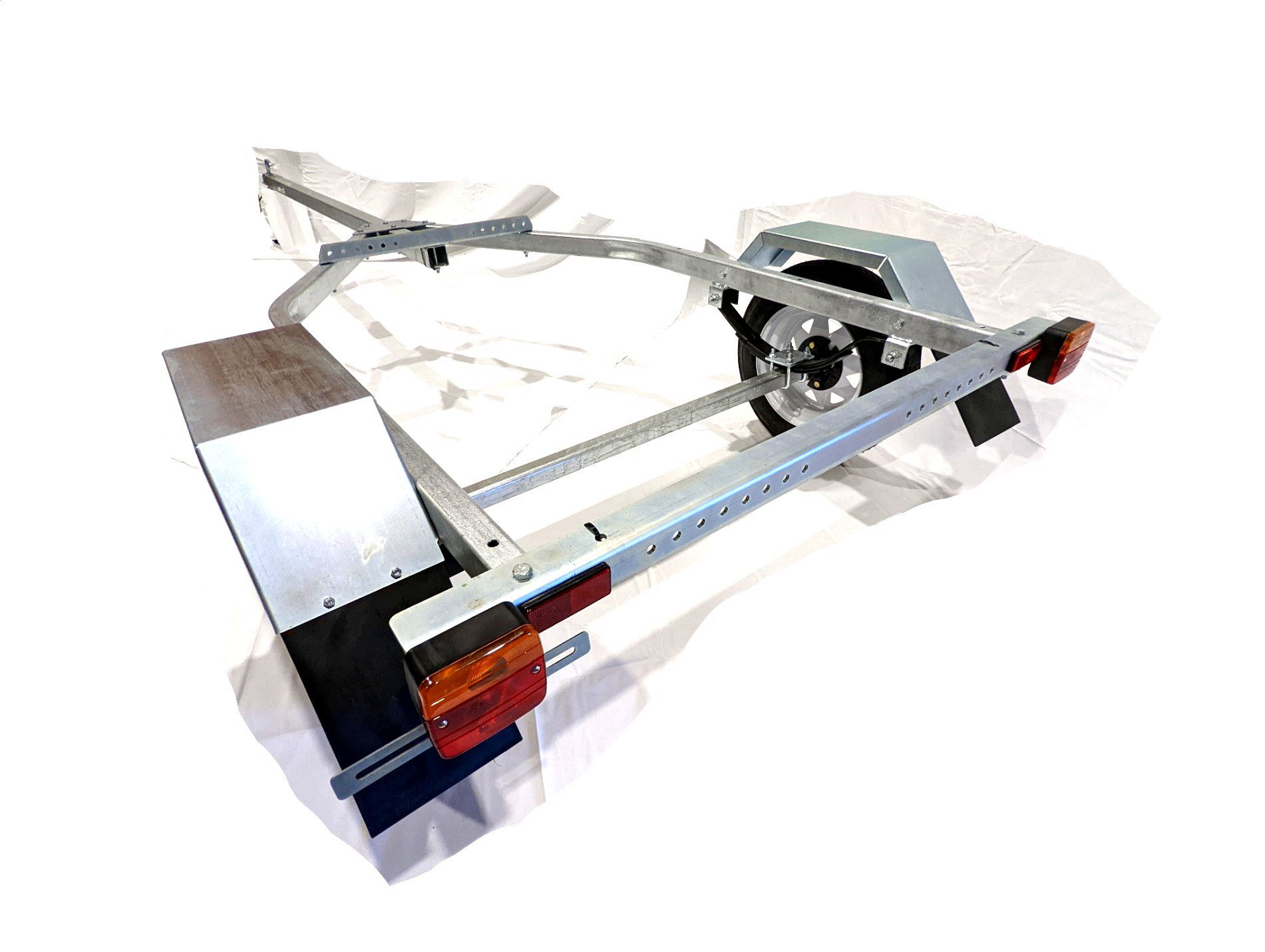

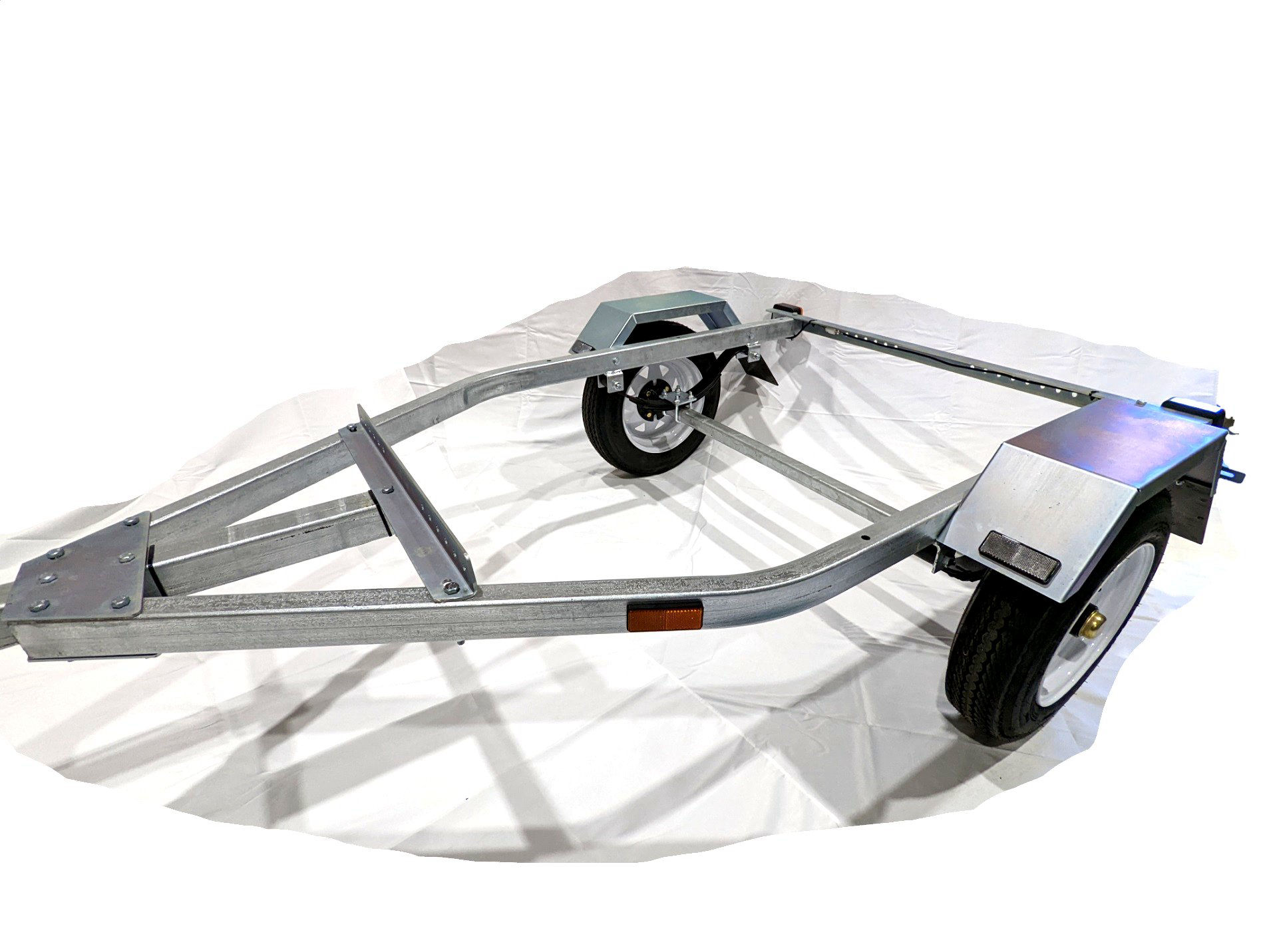

Completed Ready to Tow Away Rolling Chassis
Add your Own Accessories for your Watercraft
Capacity 505kg ATM
400kg Payload
Bed Size 3900mm x 1016mm
Overall Size 4100mm x 1360mm
Tare Weight 88kg
Compliance ADR / ECE
Finish Hot Dipped Galvanised
Springs HT Slipper Leaf (660kg)
Wheels 12” White Spoke, 5mm
Tyres 20” 60PSI,
4PLY High Speed (711kg)
Hubs/Axle 4 Stud, Cast Iron,
Easy Lube (990kg)
Bearings 2” Fully Tapered (1600kg)
Bed Height 475mm
Coupler 50mm (750kg)
Coupler Height 470mm
Drawbar 2”x2” RHS One Piece (2.7mm+)
Frame 2”x2” RHS (2.5mm+)
Towball Weight 10% of GTM
Fender Height 100mm
Lights ADR Standard Combination Type Wiring 7-Pin Flat Loom
50mm Towball ADR/ECE
Qick Release Coupler.
Easy To Use & Hold Trailer.
3 Leaf Slipper Springs.
Simple, Reliable,
Long Lasting.
Grease your Hubs easily via the Grease Fitting. Greases the Core of the Hub, Both Bearings Greased Quickly.
Light Truck Trailer Tyres.
Highway Rated.
Low Drag, Fuel Efficent, and
Long Lasting.
Highspeed R12 Wheel.
OPTIONAL: Holding U Bolt
Mount Below or Above Drawbar
Wide Flat with Tapered Edge
Adustable width & Angle to suit a wide range of Marine Craft.
Bow Stop & Bow Roller is Adjustable in Height & Along the Drawbar to Suit your Craft Length. Compatible with Small Winch Packs.
Optional Winch Pack, 500+kg Capacity with Soft Braided Strap.
Multifit Folding Levelling Leg.
Folds Up & Locks into Place
Quick Height Adjustment
Fit to Drawbar / Rear of Trailer
Dual Wheel, 6" Castors.
Folding Design.
Note:
ADDs 8kg to Drawbar Weight
500mm Long Frame Extension
Bars to Extend Tie Straps Outside the Frame
*Requires Drilling 13X3 Frame*
300kg Rated, 1600mm Wide
30mm Square HD Pipe.
ADD Thule & Yakima Sports Accessories to Carry Bikes, Kayaks and More
PT2 Pulley Lock Tie Set
Kayak & Canoe Tie Set.
Soft Cord, Pulley Tie System.
Quick Release.
Use a RED Flag on OVERHANGING items.
Back of Kayaks, Boats, Lumber,
or anyting that exceeds the
back of the Trailer.
Safety for everyone.
400kg Rated HD Ramp.
1700mm Long x 380mm Wide.
Mesh Steel Surface
* Ideal for Sand Carts or Watercraft Trolleys *
500kg Rated Traingle D Rings.
50mm Triangle, Inc Bolts.
Available in 10 or 4 Packs
Locks the Operation of the Coupler Handle Completely.
Unique Internal Key Lock.
Cannot Remove wihout KEY.
Off Car Trailer Parking Lock.
Integral Tow Ball Locking System when Trailer is Parked.
HD Wheel Clamp Suits from R12 Up. Key Locking.
Hint: Lock both Wheels with 2 Units.
454kg Rated Ratchet Strap Set.
4.2m Length with Hook Ends.
Easytrailer has the ability to change your Trailer to suit hundreds of applications.
Set up one Trailer to carry a multitude of sports and hobbies with our changeable system. Set up as a Flat Top to Bike to Kayak to anything you need to carry with ease.
